Cleanroom Cleaning, Disinfection and Sterilization
Cleanroom Garment Finishing Equipment

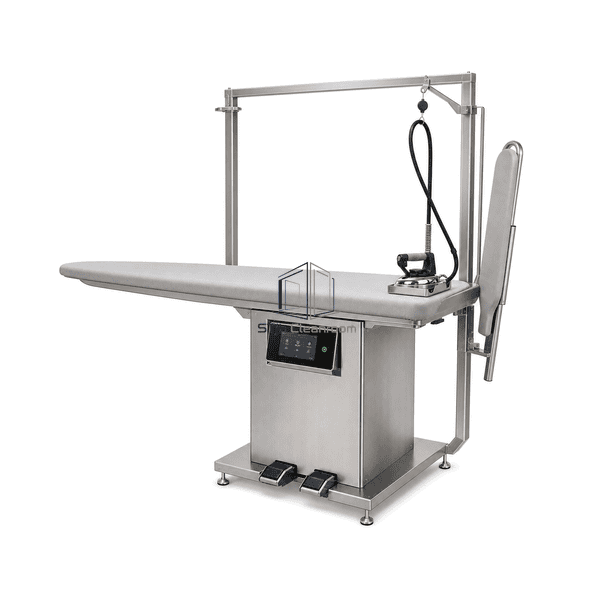

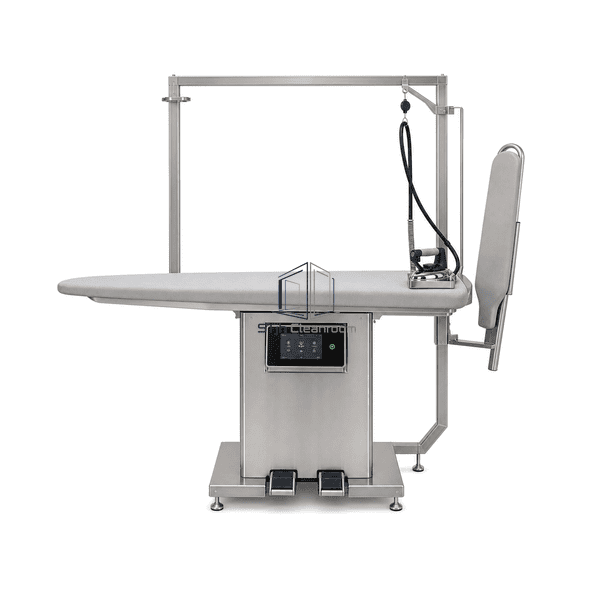

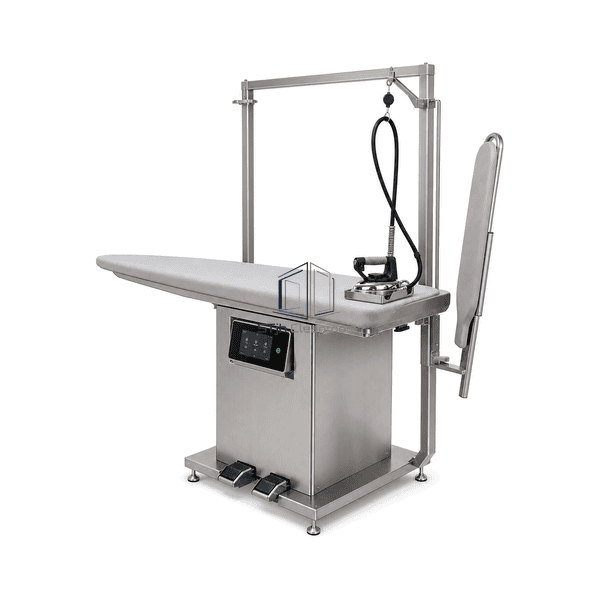

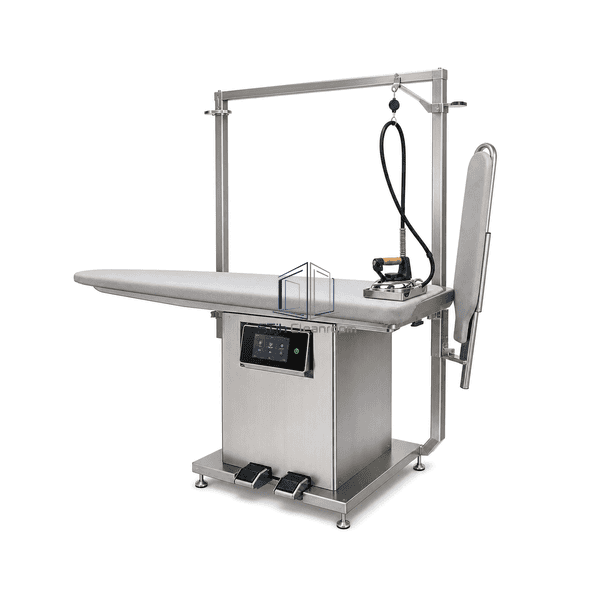

A stainless vacuum-and-blow finishing station with a heated buck, sleeve board, suspended steam iron, and foot-operated airflow controls for processed cleanroom garments.
- Vacuum holds technical garments flat during finishing
- Blowing airflow supports delicate linings and shaped areas
- Suspended steam iron and sleeve board improve operator access
Product Introduction
Cleanroom garment finishing equipment is intended for the controlled post-dry preparation of coveralls, hoods, sleeves, and compatible textile accessories. The brushed stainless cabinet encloses the airflow components and provides a smooth exterior for routine wiping. A shaped padded buck supports large garment panels, the upright sleeve board reaches narrow areas, and the suspended iron supplies localized steam and heat. The final operating recipe should follow the garment manufacturer’s care limits and the facility’s validated laundry procedure.
Key Features
Heated padded buck for a dry, stable finishing surface
Integral vacuum to hold fabric and remove residual moisture
Blowing mode for lightweight fabrics, seams, and linings
Narrow upright sleeve board for difficult garment sections
Suspended steam hose and iron-balancer arrangement
Separate foot pedals for hands-free airflow control
Local touchscreen for adjustable operating settings
Customer Product Concerns
Reusable cleanroom garments must be presented without damaging closures, conductive features, or low-lint fabrics. Uncontrolled heat can glaze or distort textiles, and an unsupported garment can crease again before protected packing.
Can the station protect temperature-sensitive garment materials?Adjustable surface heat, localized steam, and defined dwell times allow the finishing recipe to remain within the garment supplier’s care limits.
How are large panels held without creating new creases?Vacuum stabilizes the garment against the padded buck while the operator works across the panel.
Can sleeves and narrow sections be finished effectively?The separate upright sleeve board provides a smaller shaped surface for cuffs, sleeves, and other confined areas.
How is moisture managed after steam finishing?Vacuum airflow draws steam and residual moisture through the buck, while blowing can lift lightweight layers before cooling.
Typical Applications
Pharmaceutical cleanroom garment laundriesSemiconductor coverall preparationMedical-device controlled laundry supportBiotechnology gown processingLow-lint technical textile service centersPre-packing inspection and presentation stations
Technical Parameters
The finishing station combines a padded utility buck, controllable vacuum and blowing airflow, an industrial steam iron, and a narrow sleeve board on one cleanable frame. Foot controls let the operator stabilize or lift the fabric without releasing the garment, while the overhead gantry keeps the steam hose away from the work surface.
| Core Material | Brushed stainless-steel cabinet and frame with heat-resistant padded working buck |
|---|---|
| Panel Thickness | 25–45 mm padded and insulated working-surface build-up |
| Effective Width | 1200–1400 mm usable garment-finishing buck length |
| Maximum Length | 1400–2200 mm overall equipment length depending on buck and gantry configuration |
| Steel Facing Thickness | 1.0–1.5 mm stainless-steel cabinet facing |
| Core Density | 30–60 kg/m³ heat-resistant padding and insulation where fitted |
| Thermal Conductivity | 0.035–0.050 W/(m·K) for insulated padded sections |
| Surface Finish | Brushed stainless exterior with light-gray heat-resistant buck cover |
| Joint Type | Bolted frame joints, removable padded cover, steam-hose coupling, and serviceable airflow connections |
| Customization | Available based on the intended application and operating environment. |
Available Options
Vacuum-only or vacuum-and-blow airflowElectric buck heatingIntegrated or external steam supplySteam iron with balancer and overhead hose gantrySleeve, shoulder, or utility buck configurationsAdjustable airflow strengthTouchscreen recipe controlsFull stainless external construction
Planning a Cleanroom Garment Finishing Equipment specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
