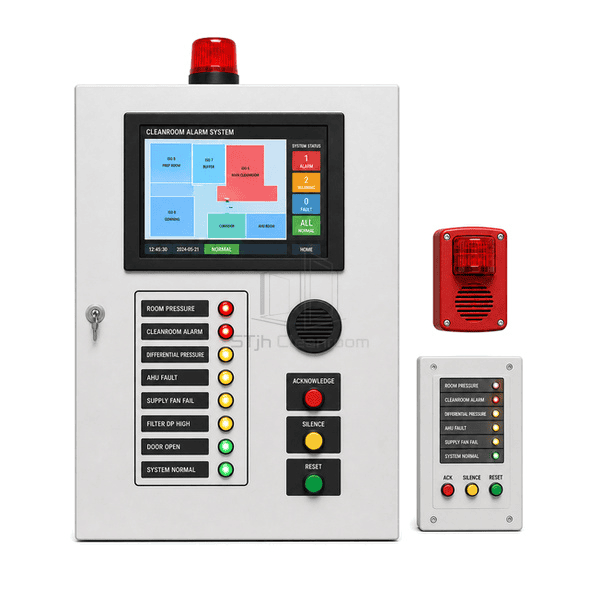

Complete cleanroom central alarm cabinet with color touchscreen, red beacon and annunciator buttons

Cleanroom Control and Environmental Monitoring Systems

Cleanroom Central Alarm System

A dedicated alarm annunciation platform that consolidates room, equipment, door and utility events into prioritized visual, audible and remote notifications.

Priority-Based Annunciation
First-Out Event Capture
Zone Alarm Mapping
Remote Notification Outputs

Request a Quote Browse Products

Product Introduction

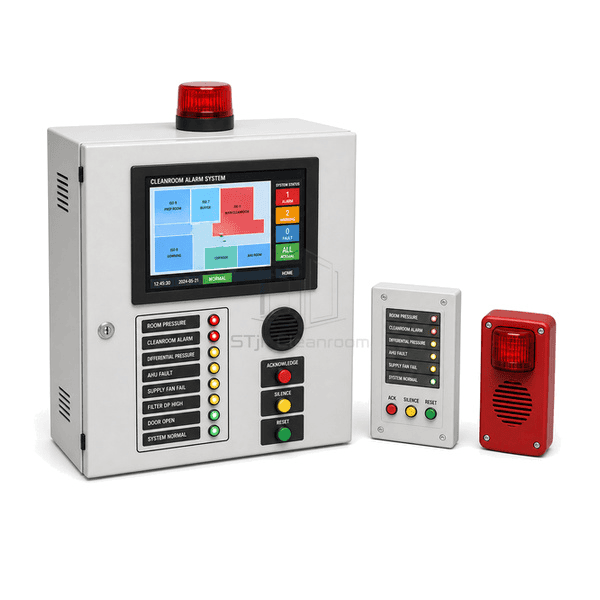

The cleanroom central alarm system receives dry contacts, analog alarm states and network events from environmental instruments and supporting equipment. A color touchscreen and physical audible-visual devices distinguish critical alarms from warnings and maintenance notices. First-out sequencing identifies the initiating event before secondary conditions appear, while acknowledgement, silence and reset remain separate operator actions. Local alarm panels can be distributed by suite and connected to a central workstation without replacing the independent alarm functions at each room.

Key Features

First-out chronology highlights the event that initiated a chain of related alarms.

Distinct colors and sound patterns separate critical, warning and advisory priorities.

Zone maps direct responders to the affected room, airlock, utility or equipment item.

Isolated relay and network outputs route selected alarms to BMS, EMS or remote dialers.

Customer Product Concerns

A central alarm system must make the first actionable condition obvious without suppressing local room-level warnings.

Many alarms appear together and operators cannot identify the initiating fault.First-out sequencing and synchronized timestamps preserve the original event order.

All events use the same buzzer and receive the same response.Priority-specific colors, sounds and routing distinguish urgent excursions from maintenance notices.

Responders know an alarm exists but not where it originated.Room and equipment maps connect each alarm point to a clear physical location.

Silencing a horn is confused with clearing the alarm condition.Separate acknowledge, silence and reset functions preserve alarm state until the input returns normal.

Typical Applications

Pharmaceutical production suitesBiocontainment facilitiesMedical cleanroom campusesSemiconductor utility monitoring

Technical Parameters

Typical construction values for a centralized cleanroom alarm annunciator cabinet are listed below.

Core Material	Powder-coated steel enclosure with FR-4 annunciator boards, copper relay contacts and industrial touchscreen
Panel Thickness	180-350 mm cabinet depth
Effective Width	500-1000 mm panel width
Maximum Length	Up to 1800 mm panel height
Steel Facing Thickness	1.2-1.8 mm powder-coated steel panels
Core Density	7800-8050 kg/m³ for steel enclosure components
Thermal Conductivity	45-60 W/(m·K) for steel structural panels
Surface Finish	Light-gray powder coating with color HMI, red beacon and labeled silence-reset controls

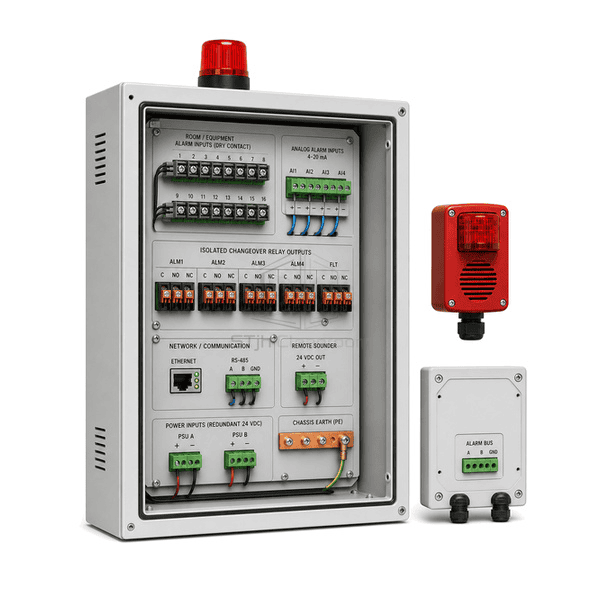

Joint Type	Gasketed cabinet with pluggable alarm inputs, isolated relay outputs and network gateway
Customization	Available based on the intended application and operating environment.

Available Options

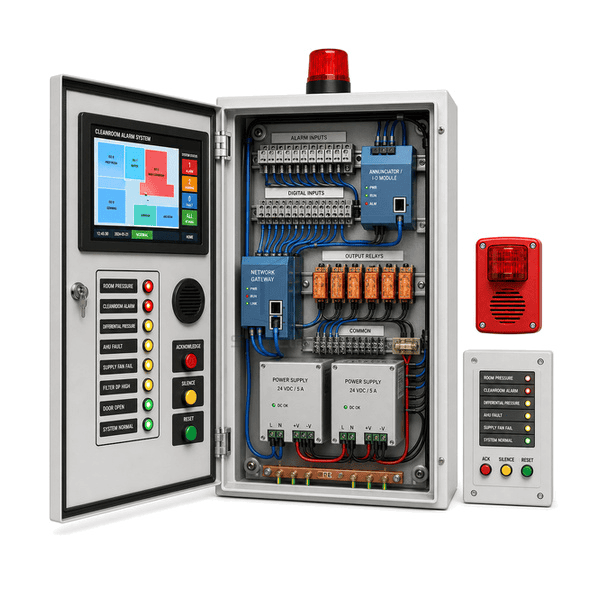

Touchscreen or LED annunciatorFirst-out alarm logicSMS and email gatewayRedundant power supply

Planning a Cleanroom Central Alarm System specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.

Talk to Our Team
