All-Aluminum Cleanroom T-Grid

A lightweight exposed ceiling suspension system manufactured entirely from aluminum, intended for humid, sanitary and chemical-cleaning interiors where ordinary carbon-steel grid is less suitable.

100% Aluminum Construction
Corrosion-Resistant Ceiling Framework
24 mm Exposed T-Bar Face

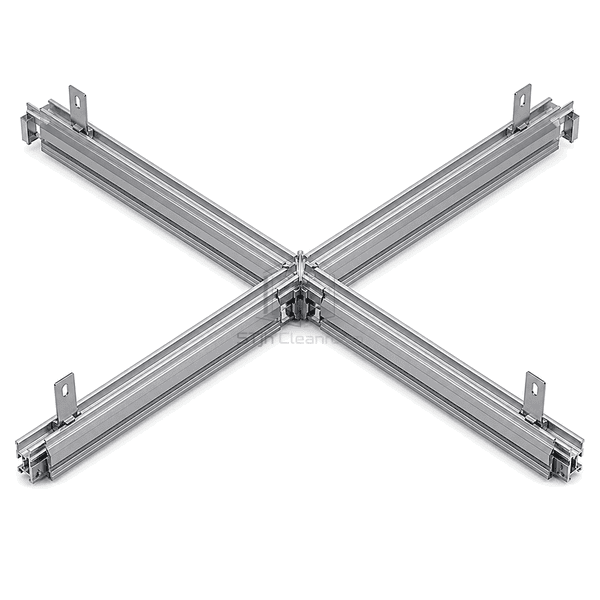

Demountable Hook-End Cross Tees

Request a Quote Browse Products

Product Introduction

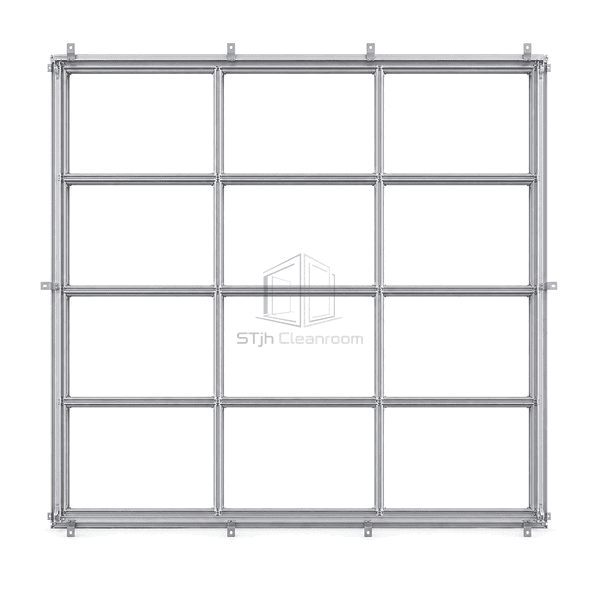

All-Aluminum Cleanroom T-Grid uses aluminum main tees, cross tees and perimeter components to form a modular lay-in ceiling. Removing the carbon-steel web reduces the risk of red rust in humid or frequently cleaned rooms and lowers the weight handled overhead. Hook-end cross tees engage the main runners without permanent welding, allowing grid sections and ceiling panels to be dismantled. The 24 mm exposed flange accepts common ceiling modules and can carry an optional cleanroom gasket when a sealed panel interface is required.

Key Features

Aluminum throughout the profile offers strong resistance to interior humidity and many sanitation environments.

Low component mass reduces overhead handling effort during grid assembly.

Hook-end cross tees can be disengaged for alterations without cutting the main runner.

Uniform metal construction avoids dissimilar exposed materials across the visible ceiling network.

Lay-in modules preserve direct access to filters, dampers and utilities above the room.

Customer Product Concerns

All-aluminum grid is chosen when corrosion, component weight, demountability and a consistent visible finish outweigh heavy-load requirements.

Cut edges on conventional steel grid can begin rusting after repeated humid cleaning cycles.An all-aluminum substrate removes the exposed carbon-steel corrosion source.

Long metal runners are tiring to position and align over an occupied fit-out area.Lower-density aluminum profiles reduce the mass installers handle at ceiling level.

Permanent cross-tee connections obstruct later changes to filters and lighting modules.Demountable hook ends release individual cross tees while leaving adjacent runs intact.

Mixed metals and mismatched caps create visible colour differences across the ceiling.Main tees, cross tees and perimeter pieces use the same aluminum substrate and finish family.

Typical Applications

Food and drug preparation roomsLaboratories with humid processesClean utility and wash-down areasHealthcare hygiene ceilingsControlled rooms near corrosive indoor atmospheres

Technical Parameters

Typical dimensions for an all-aluminum exposed T-grid suspension system are listed below.

Core Material	N/A — roll-formed or extruded all-aluminum T profiles
Panel Thickness	N/A — T-grid is a ceiling support profile rather than a panel
Effective Width	24 mm exposed T-bar face

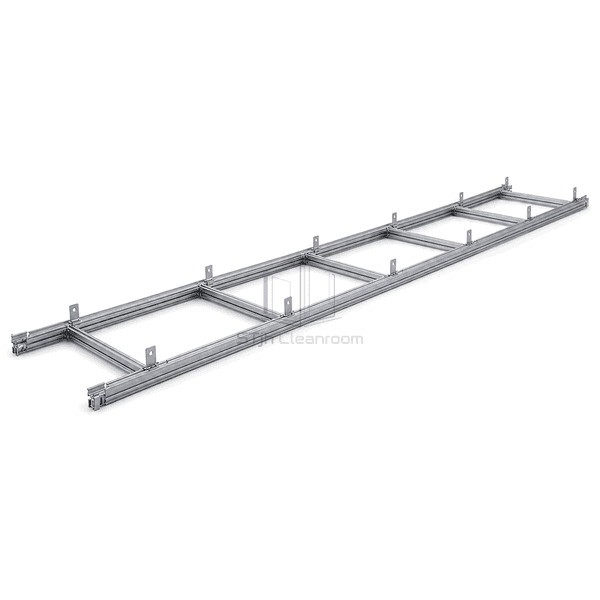

Maximum Length	3660 mm main tee
Steel Facing Thickness	N/A — system contains no steel facing
Core Density	N/A — hollow metal profile contains no core
Thermal Conductivity	N/A — suspension profile is not used to provide thermal resistance
Surface Finish	White baked enamel or satin anodized aluminum
Joint Type	Demountable hook-end cross tee engaging slotted aluminum main runner
Customization	Available based on the intended application and operating environment

Available Options

White baked-enamel finishSatin anodized finishFactory-applied cleanroom gasket600 mm or 1200 mm cross-tee modules
