Airtight cleanroom cable gland with stainless body and black compression seal

Cleanroom Lighting and Electrical Equipment

Airtight Cable Gland

A compression fitting that seals around a cable sheath and closes the cleanroom panel penetration with a smooth stainless interface.

360-Degree Cable Compression
Stainless Hygienic Body
Panel-Side Sealing Washer
Strain-Relief Grip

Request a Quote Browse Products

Product Introduction

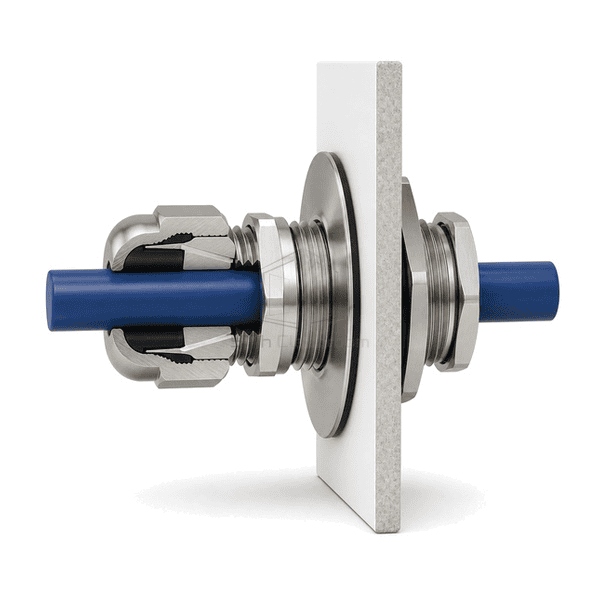

The airtight gland passes a power, control or data cable through an enclosure or cleanroom panel without leaving an annular air path. Tightening the cap compresses an elastomer insert uniformly around the cable jacket while a second gasket seals the gland body to the mounting surface. The external profile is rounded and compact, with no split threads exposed to the cleaning area.

Key Features

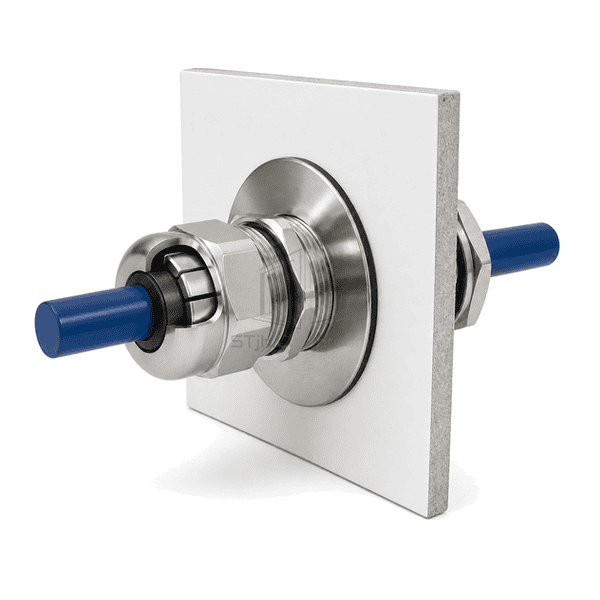

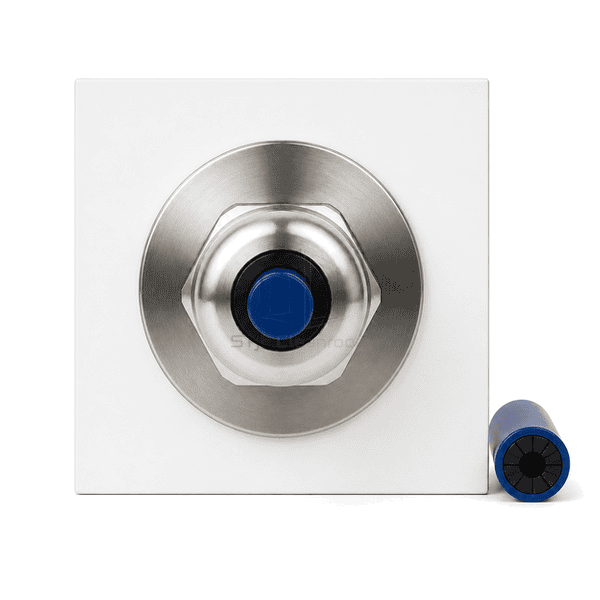

A circumferential insert seals directly against the cable outer sheath.

The body-to-panel washer closes the penetration independently of cable compression.

Strain relief transfers pull load away from internal terminals.

A smooth rounded cap supports direct wiping around the entry point.

Different inserts accommodate single cables, multiple small cables or conduit tails.

Customer Product Concerns

A cable entry can leak either around the cable or around the gland body, so both sealing interfaces must be controlled.

Air leaks through the gap between cable and drilled hole.The compressed elastomer insert closes uniformly around the cable sheath.

The gland rotates and breaks the panel seal during tightening.A locknut or keyed body retains the gland while the cap is torqued.

Cable movement transfers force to delicate terminals.Integrated strain relief grips the outer jacket before the connection point.

Several small cables require multiple wall penetrations.A multi-hole sealing insert groups compatible cables in one gland body.

Typical Applications

Cleanroom wall penetrationsSealed equipment cabinetsLighting cable entriesInstrumentation feedthroughs

Technical Parameters

Typical configurable construction ranges for an airtight cable gland are listed below.

Core Material	SUS304/SUS316L or nickel-plated brass body with silicone, EPDM or compatible elastomer sealing insert
Panel Thickness	1.0-12.0 mm compatible mounting-panel thickness
Effective Width	12-63 mm cable sealing diameter range across gland sizes
Maximum Length	Up to 120 mm overall assembled gland length
Steel Facing Thickness	1.5-3.0 mm stainless gland wall at the threaded body
Core Density	Approximately 1150-1250 kg/m³ for the elastomer compression insert
Thermal Conductivity	0.20-0.30 W/(m·K) for silicone or EPDM sealing material
Surface Finish	Fine-machined or electropolished stainless with black, white or blue elastomer insert

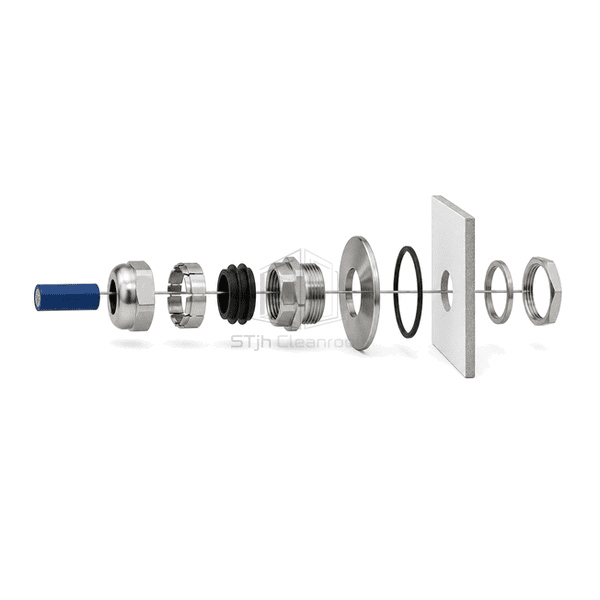

Joint Type	Threaded panel bulkhead with body washer, locknut and radially compressed cable-sealing insert
Customization	Available based on the intended application and operating environment.

Available Options

Single-cable or multi-cable insertMetric or NPT mounting threadStraight or right-angle formEMC shield-termination version

Planning a Airtight Cable Gland specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
