Cleanroom Control and Environmental Monitoring Systems
Airlock Interlock Control System
A fail-defined airlock controller that prevents incompatible doors from opening together while providing clear occupancy, request and release status at each doorway.
- Two-to-Four Door Logic
- Visible Door Status
- Timed Release Sequence
- Emergency Override Input
Product Introduction

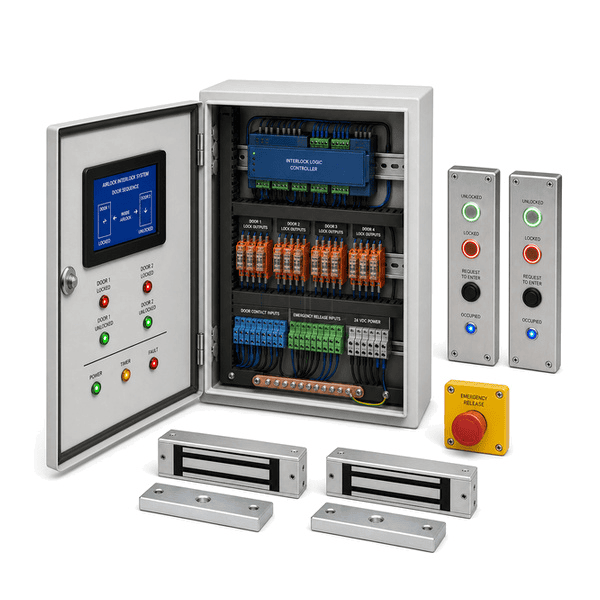

The airlock interlock control system supervises door contacts, electric locks, request buttons and status lamps for a controlled transition space. When one door opens or unlocks, the controller inhibits the incompatible doors until the first door is closed and the defined delay expires. Separate emergency and fire inputs apply the selected safe release behavior without obscuring event status. Remote contacts or network communication allow facility operators to see door position, lock state, forced-open alarms and override activity.
Key Features

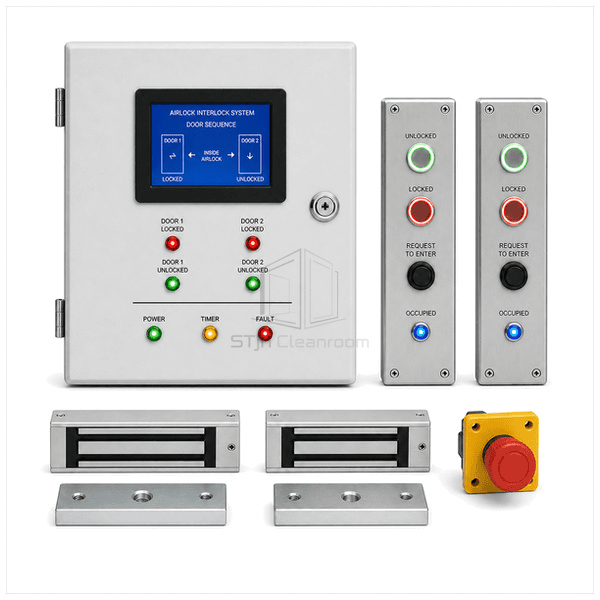

Distinct request, locked, available and alarm indications reduce occupant uncertainty.
Adjustable release delay lets room pressure recover before the next door can be used.
Dedicated emergency and fire inputs apply a documented fail-safe or fail-secure behavior.
Customer Product Concerns
An airlock must control door sequence without trapping occupants or creating ambiguous behavior during alarms and power loss.
Users repeatedly pull a locked door because its status is unclear.Color indicators and request acknowledgement show when each door is available or inhibited.
The next door releases before the pressure cascade has recovered.An adjustable closed-door delay holds the sequence until the airlock stabilizes.
A misaligned door contact leaves the airlock permanently blocked.Separate door-position and lock-status diagnostics identify the input preventing release.
Emergency release behavior is improvised at installation.Dedicated monitored inputs and selected fail mode define how each lock responds to emergency or fire conditions.
Typical Applications
Personnel airlocksMaterial airlocksPharmaceutical change roomsBio-containment transition zones
Technical Parameters
Typical construction for a cleanroom airlock interlock controller and doorway indicator set is listed below.
| Core Material | Powder-coated steel control enclosure with FR-4 logic board, copper lock relays and stainless indicator plates |
|---|---|
| Panel Thickness | 120-250 mm enclosure depth |
| Effective Width | 300-600 mm control panel width |
| Maximum Length | Up to 800 mm control enclosure height |
| Steel Facing Thickness | 1.2-1.5 mm powder-coated steel enclosure |
| Core Density | 7800-8050 kg/m³ for steel and stainless structural parts |
| Thermal Conductivity | 14-60 W/(m·K) across stainless indicator plates and steel enclosure parts |
| Surface Finish | Light-gray control box with brushed stainless door stations and red-green status lamps |

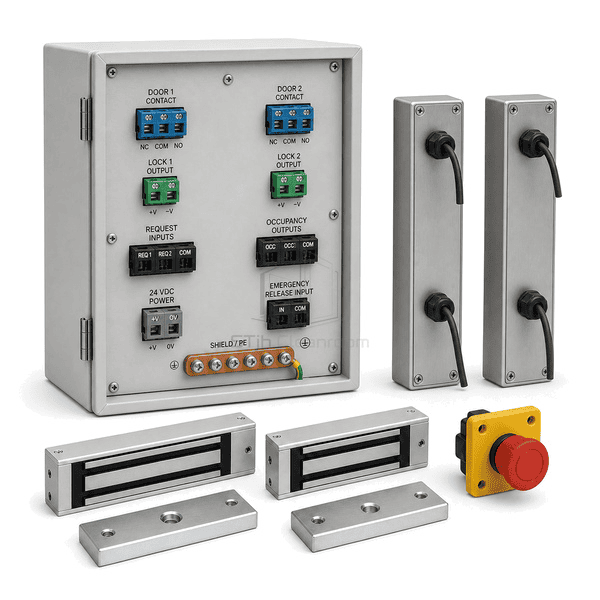

| Joint Type | Gasketed controller with pluggable door, lock, request, alarm and emergency terminals |
| Customization | Available based on the intended application and operating environment. |
Available Options

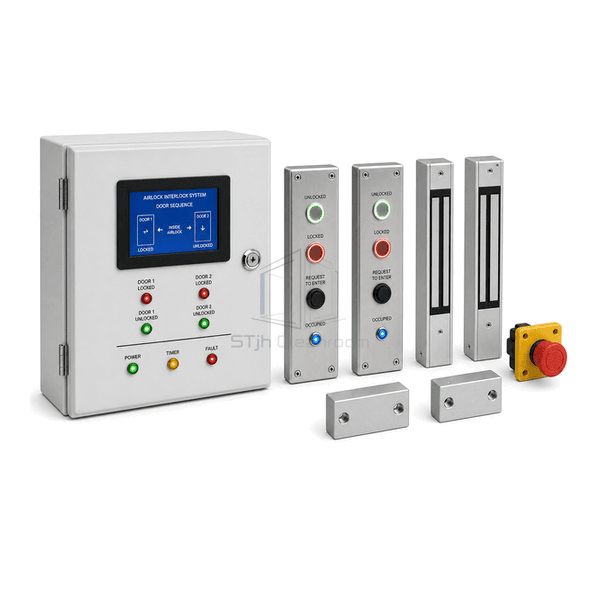

Two, three or four-door logicFail-safe or fail-secure locksStainless door stationsBMS dry contact or network output
Planning a Airlock Interlock Control System specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
