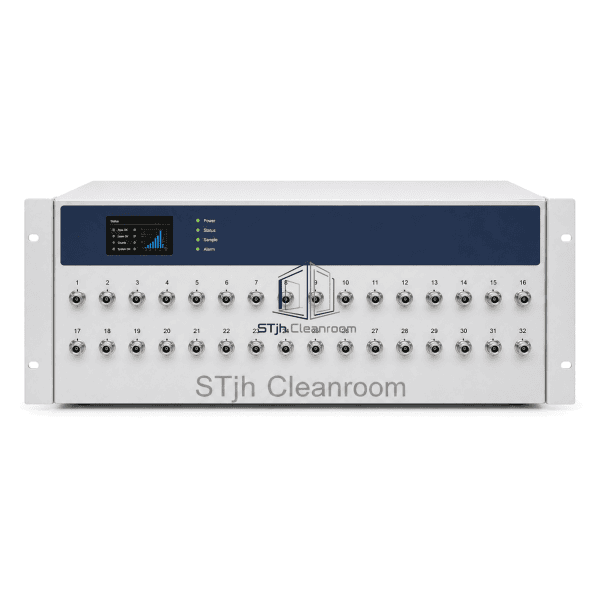

نظام مراقبة الجسيمات متعددة القنوات
A programmable aerosol manifold system that connects one particle counter to multiple cleanroom sampling locations for economical sequential monitoring.
- One counter polls multiple identified sampling points.
- Programmable purge and sample steps sequence each line.
- Point identities stay linked to monitoring software.
مقدمة المنتج

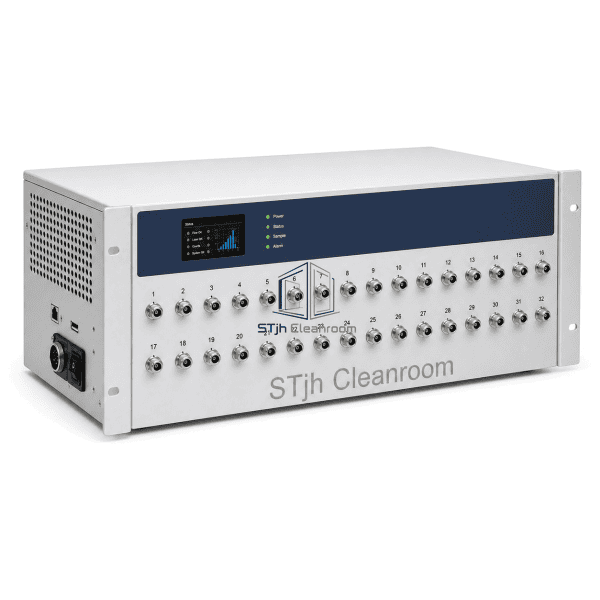

This multi-channel particle monitoring system combines a precision valve manifold, clean sampling paths, sequence controller and compatible airborne particle counter. It automatically selects one location at a time, purges the active line and records the result against the correct point identifier. The architecture is intended for periodic trending across many locations where simultaneous continuous measurement is not required, reducing instrument count without losing a structured sampling plan.
الخصائص الرئيسية
Programmable point order, purge duration and sample time create repeatable unattended monitoring cycles.
Bi-directional control allows the manifold and monitoring software to coordinate point status and timing.
Low-shedding internal flow paths minimize contamination contribution from the switching assembly.
Individual port identification keeps every particle result associated with the correct cleanroom location.
Modular tubing and communication options simplify phased expansion of the monitoring network.
مخاوف المنتج للعملاء
Sequential monitoring must clear residue from long lines, preserve the identity of each location, and balance purge plus sample time against the required polling cycle.
Long tubing can delay the arrival of a representative sample from a distant point.Programmable purge intervals are assigned by line length so each point is cleared before its measurement begins.
Sequential sampling cannot detect simultaneous short excursions at every location.Use the manifold for periodic trend points and reserve dedicated remote counters for high-risk locations requiring continuous observation.
Incorrect valve mapping can associate data with the wrong room location.Numbered physical ports, locked software point names and commissioning verification establish a traceable channel map.
Particle loss in bends and excessive tubing may bias larger-size channels.Straight conductive tubing routes, controlled lengths and validated transport arrangements minimize avoidable deposition.
تطبيقات نموذجية
Periodic multi-point particle trending in large cleanroomsElectronics and precision-manufacturing clean-zone monitoringNon-critical support rooms where sequential sampling is acceptableCentralized monitoring of distributed process enclosuresExpansion of an existing facility particle-monitoring network
المعلمات الفنية
The table defines representative cabinet, port, flow-path, and communication configurations for a multiport switching manifold, with selection based on point count, tubing layout, and particle-counter architecture.
| المواد الأساسية | Powder-coated steel or stainless-steel enclosure with chemically resistant internal valve manifold and clean sampling tubing |
|---|---|
| سمك اللوحة | Typically 1.0–1.5 mm enclosure panel thickness |
| العرض الفعال | Approximately 430–600 mm according to port count and rack configuration |
| الحد الأقصى الطول | Approximately 450–800 mm for the manifold enclosure; sampling runs may extend to 38100 mm when validated |
| الصلب يواجه سمك | Typically 1.0–1.5 mm powder-coated or stainless steel |
| الكثافة الأساسية | Not applicable; the equipment enclosure has no insulation core (0 kg/m³) |
| الموصلية الحرارية | Approximately 14–16 W/(m·K) for stainless steel or 45–60 W/(m·K) for carbon-steel enclosure sections |
| إنهاء السطح | Smooth light-gray powder coating or fine-brushed stainless steel with labeled stainless tube ports |

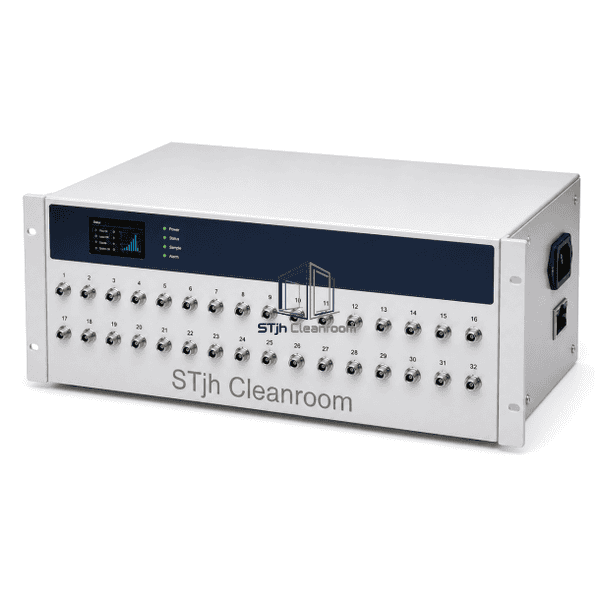

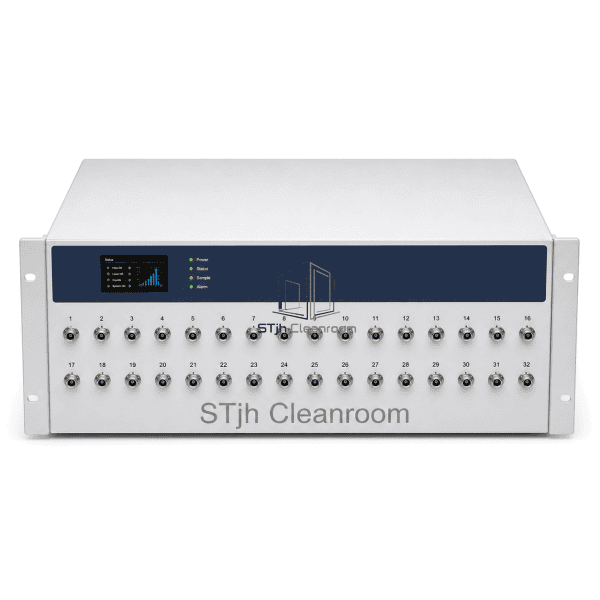

| نوع المشترك | Numbered compression-tube sampling ports with Ethernet or serial control interface |
| التخصيص | متوفر على أساس التطبيق المقصود وبيئة التشغيل. |
الخيارات المتاحة
8, 16, 24 or 32 sampling channelsRack-mount or wall-mount enclosureStainless-steel or powder-coated housingCompatible 28.3 L/min particle counterConductive sampling tubing and point probesFacility monitoring software integration
Planning a Multi-Channel Particle Monitoring System specification?
أرسل لنا الأبعاد الخاصة بك، شروط التثبيت، أهداف الأداء والتشطيب السطحي المطلوب.
