أبواب الغرف النظيفة ونوافذ وأنظمة التشابك
Flush-mounted لوحة رؤية غرف الأبحاث

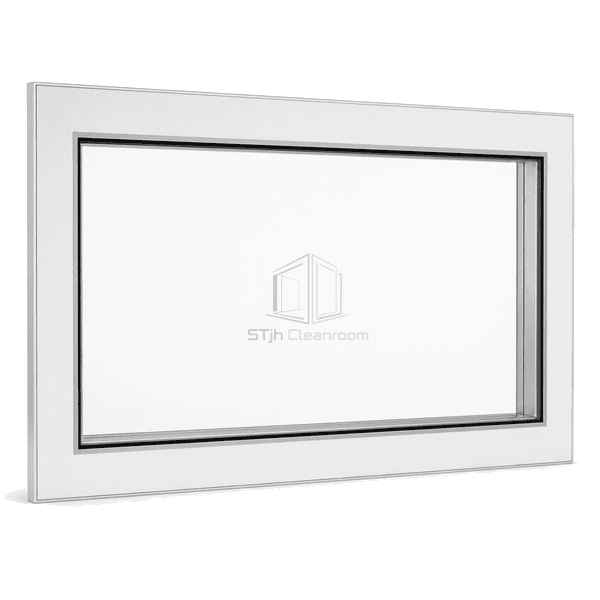

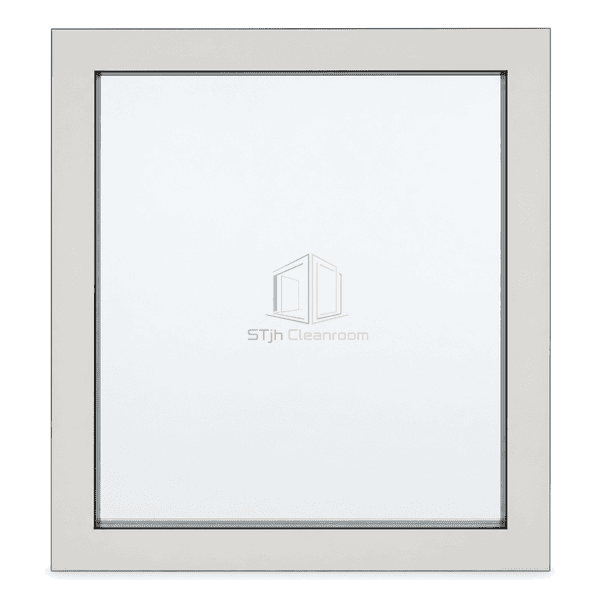

A fixed cleanroom window designed so the exposed glazing and perimeter trim align with the wall finish on both sides, eliminating projecting ledges.
- Double-Flush Faces
- Concealed Subframe
- No Exposed Fixings
- Easy-Clean Perimeter
مقدمة المنتج

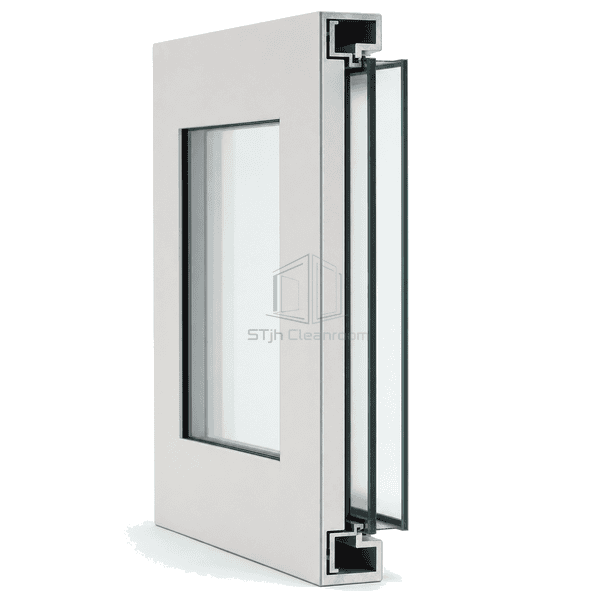

The flush-mounted vision panel integrates two outer panes into a concealed subframe sized to the cleanroom wall thickness. Screen-printed or opaque glass borders hide the retained edge, while bonded glazing and overlapping perimeter flanges leave both room faces smooth. The sealed cavity can accept desiccant spacers or optional blinds, but the primary purpose is to remove horizontal ledges and visible fasteners from high-cleanliness partitions.
الخصائص الرئيسية
The structural subframe and fixings remain behind the opaque glass border and reveal liner.
A sealed cavity separates the two room surfaces and supports stable differential-pressure performance.
Custom frame depth allows the same flush detail to fit common modular wall thicknesses.
مخاوف المنتج للعملاء
Flush glazing must preserve a flat wall face while keeping the concealed perimeter rigid, sealed and accessible during manufacture.
A projecting window sill interrupts wipe-down and creates a contamination ledge.The glass and trim finish in the same plane as the wall on both sides.

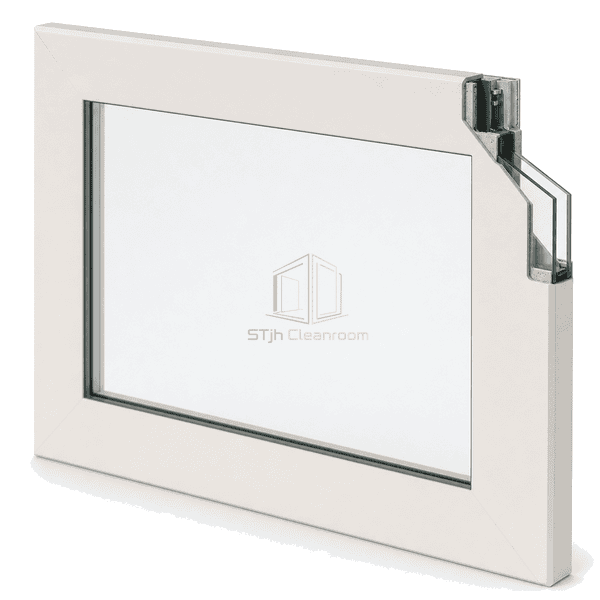

Visible screws and snap beads collect residue around the observation opening.The subframe and retained edge are concealed behind bonded opaque borders and overlapping flanges.
Wall thickness varies between cleanroom systems and leaves mismatched reveals.The frame depth and reveal liners are manufactured to the selected partition build-up.
تطبيقات نموذجية
Pharmaceutical process suitesBiotechnology cleanroomsHospital sterile corridorsSemiconductor support rooms
المعلمات الفنية
Common dimensions and materials for a double-flush cleanroom vision-panel assembly are shown below.
| المواد الأساسية | Two tempered safety-glass panes with sealed air cavity and concealed metal subframe |
|---|---|
| سمك اللوحة | 50–150 mm overall assembly depth; typically 6 mm outer glass panes |
| العرض الفعال | 400–1800 mm clear viewing width |
| الحد الأقصى الطول | 3000 mm overall window height |
| الصلب يواجه سمك | 1.0–1.5 mm stainless-steel architrave or reveal liner |
| الكثافة الأساسية | Approximately 2500 kg/m³ for each glass pane; sealed cavity has no solid core |
| الموصلية الحرارية | Approximately 1.0 W/(m·K) for glass; cavity performance depends on glazing makeup |
| إنهاء السطح | Flush clear glass with ceramic-frit border; brushed stainless steel or powder-coated trim |
| نوع المشترك | Concealed subframe with bonded glazing, sealed spacer and overlapping flush perimeter flanges |
| التخصيص | متاح بناءً على التطبيق المقصود وبيئة التشغيل |
الخيارات المتاحة
Double-flush or single-side-flush constructionIntegral blindsLow-iron or laminated panesCustom wall depths and mullions
Planning a Flush-Mounted Cleanroom Vision Panel specification?
أرسل لنا الأبعاد الخاصة بك، شروط التثبيت، أهداف الأداء والتشطيب السطحي المطلوب.
