غرفة نظيفة نافذة طوقا

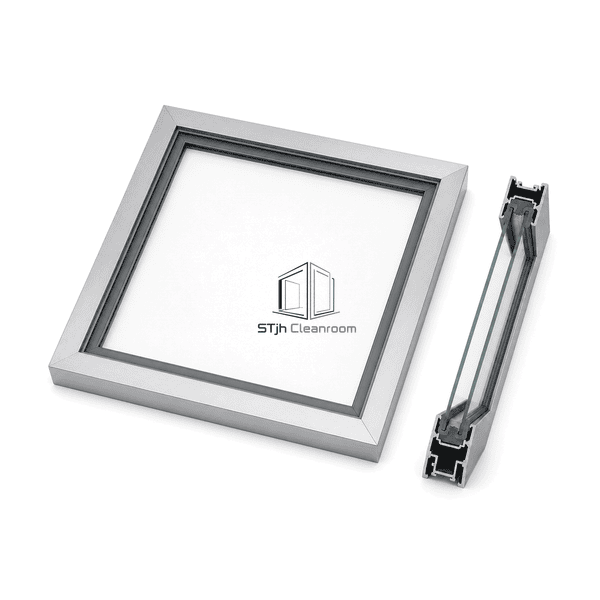

A gray silicone glazing wedge that cushions and seals cleanroom observation glass within an aluminum retaining frame.
- Continuous Glass-Edge Seal
- Non-Marking Silicone
- Controlled Glazing Compression
- Flush Frame Integration
مقدمة المنتج

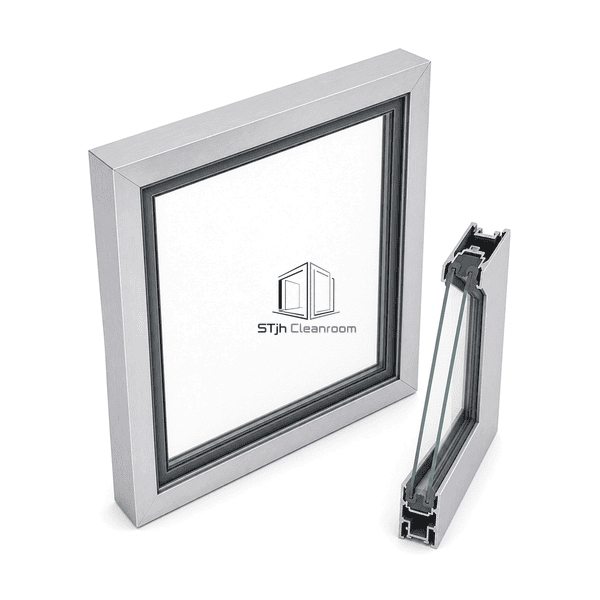

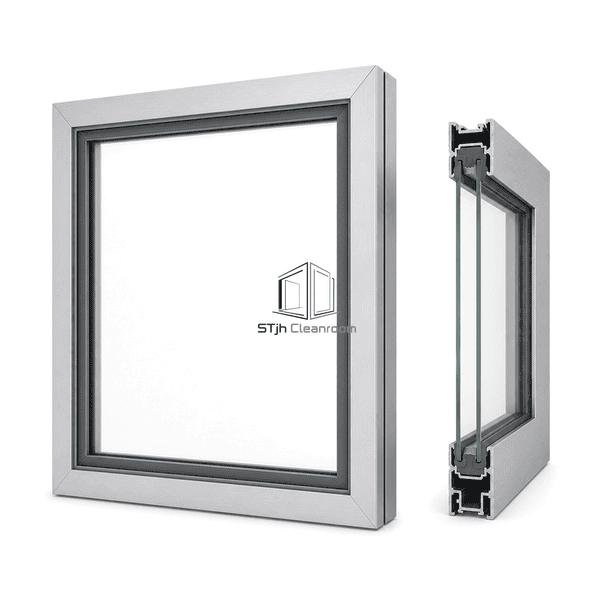

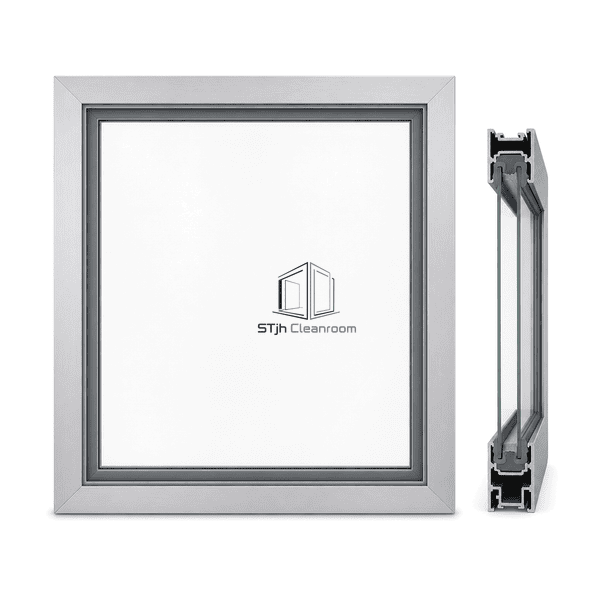

The cleanroom window gasket is an extruded silicone glazing profile installed between the glass edge and the aluminum retaining channel. Its wedge or keyed section applies continuous pressure without allowing hard metal contact with the pane. In double-glazed observation windows, the gasket works with the spacer and frame system to position both panes, accommodate small dimensional variation and present a smooth perimeter suitable for controlled interiors.
الخصائص الرئيسية
Resilient silicone cushions the pane and accommodates small frame and glass tolerances.
The continuous profile closes the visible perimeter without exposed mechanical fasteners.
Custom corner joining supports rectangular windows with consistent compression on every side.
مخاوف المنتج للعملاء
Cleanroom glazing needs continuous edge support without point loading the glass or leaving irregular recesses around the visible perimeter.
Direct metal contact creates concentrated stress at the glass edge.The resilient gasket separates the pane from the retaining channel and distributes compression.
Variable glass and frame tolerances create loose sections or excessive insertion force.The wedge geometry is matched to the actual channel and glazing thickness for controlled interference.
Open or uneven corners interrupt the cleanable perimeter seal.Cut and joined corner sections maintain a continuous visible gasket line around the window.
Migrating oils or dark marking can contaminate adjacent light-colored finishes.A suitable non-marking silicone compound is selected for contact with the specified glass and frame finish.
تطبيقات نموذجية
Flush cleanroom observation windowsDouble-glazed cleanroom partitionsPass-through viewing panelsLaboratory wall windowsProcess enclosure glazing
المعلمات الفنية
Typical construction ranges for a silicone cleanroom glazing gasket and double-pane aluminum frame are listed below.
| المواد الأساسية | Gray non-marking silicone glazing wedge or keyed compression profile |
|---|---|
| سمك اللوحة | 5-15 mm compatible individual glass pane thickness |
| العرض الفعال | 8-30 mm gasket contact and retaining width |
| الحد الأقصى الطول | Up to 20000 mm continuous extrusion or custom joined window perimeter |
| الصلب يواجه سمك | 0.80-1.50 mm compatible stainless trim or retaining bead thickness |
| الكثافة الأساسية | Approximately 1100-1250 kg/m³ compact silicone profile density |
| الموصلية الحرارية | Approximately 0.20-0.30 W/(m·K) for compact silicone rubber |
| إنهاء السطح | Smooth medium-gray silicone between clear glass and satin aluminum frame |
| نوع المشترك | Continuous glazing wedge or keyed gasket with mitred, bonded or vulcanized corners |
| التخصيص | متوفر على أساس التطبيق المقصود وبيئة التشغيل. |
الخيارات المتاحة
Gray, translucent or black siliconeWedge or keyed profileSingle- or double-glazing geometryPre-cut joined window gasket set
Planning a Cleanroom Window Gasket specification?
أرسل لنا الأبعاد الخاصة بك، شروط التثبيت، أهداف الأداء والتشطيب السطحي المطلوب.
