Cleanroom Furniture and Stainless Steel Products
Touchless Hand Washing Sink

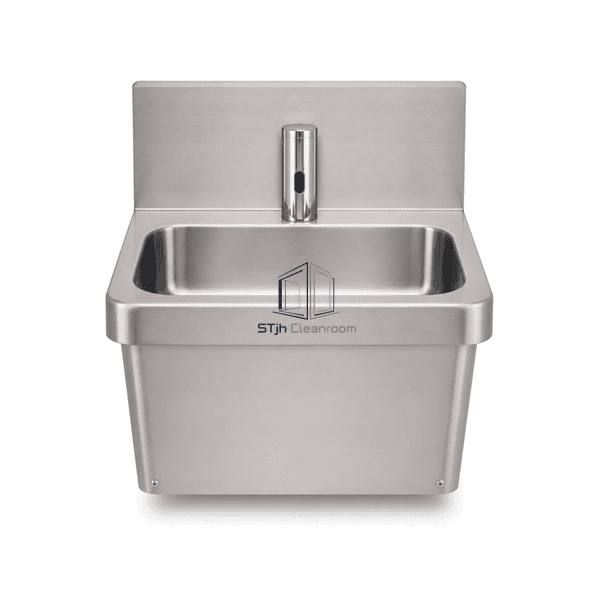

A wall-mounted Type 304 stainless hand wash basin with an infrared-activated plain-end spout, splash-control bowl, preset mixing module and visible blue operating indicator.
- Infrared no-touch water activation
- Plain-end low-splash spout
- Deep rear-waste bowl
- Accessible sensor and valve module
Product Introduction

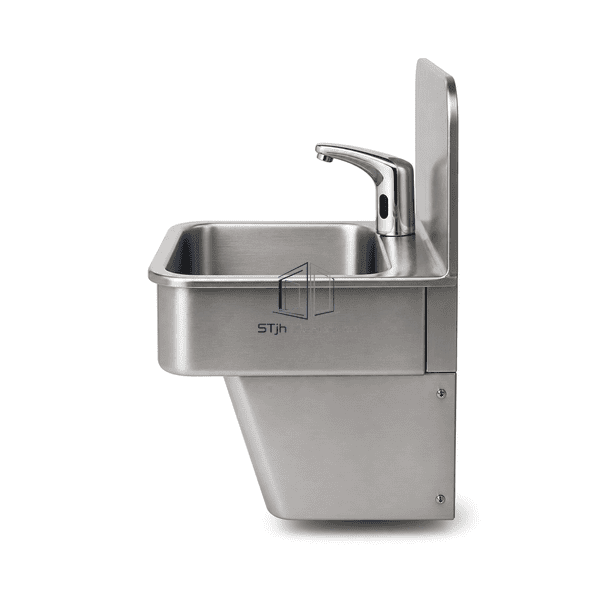

The touchless hand washing sink detects hands beneath its plain-end stainless spout and opens an electronic solenoid without a handle, pedal or knee panel. A deep 560 mm-wide coved bowl positions the drain at the rear corner, away from the incoming stream, while a removable blue splash block limits direct water impact. The sensor head includes a small blue status indicator. A keyed lower service door gives access to the low-voltage controller, battery backup, solenoid, preset mixing valve and inlet strainers.
Key Features

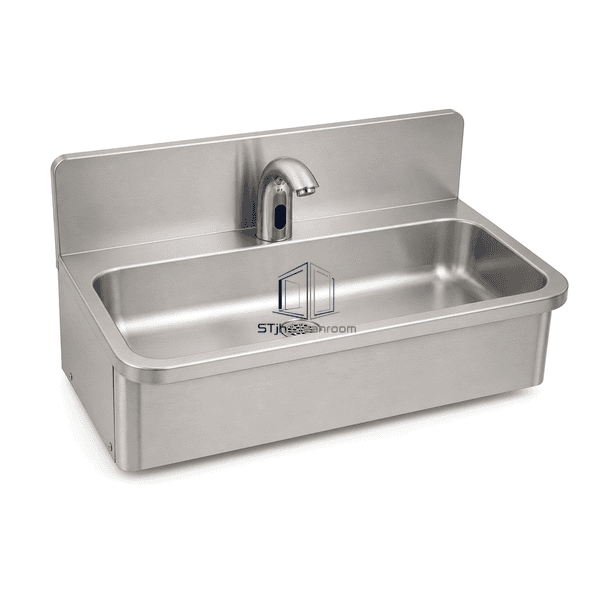

Rear-corner waste placement and a removable splash block separate the incoming stream from the drain opening.
A blue indicator confirms sensor response without adding printed instructions across the cleanable basin face.

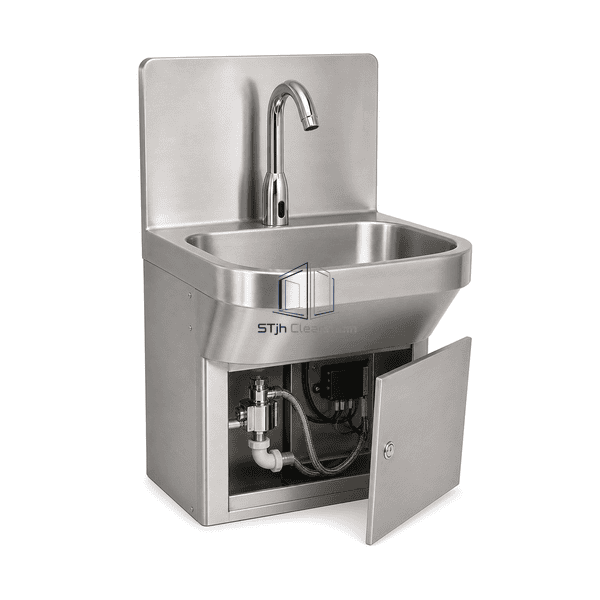

The service module groups the controller, backup battery, solenoid, mixing valve and strainers behind one keyed panel.
Customer Product Concerns
Automated hand washing must reduce contact points while controlling splash and keeping electronic valves accessible for battery, filter and mixing-service work.
Users avoid a touchless station if the sensor response is difficult to confirm.A small blue status light gives immediate visual feedback beside the sensing window.
A spout aimed directly at the drain creates rebound splash onto the user and rear wall.The rear-corner waste and removable blue splash block redirect water within the deep bowl.
Sensor faucets are difficult to troubleshoot when electronics and valves are scattered behind the wall.One keyed service module groups the controller, battery, solenoid, mixer and inlet strainers.
Sediment at the solenoid causes slow closing or inconsistent flow.Serviceable inlet strainers are positioned ahead of the electronic valve on both supply lines.
Typical Applications
Aseptic processing support hand wash pointsPharmaceutical material airlocksClinical clean preparation roomsBiotechnology controlled corridorsHigh-care packaging hygiene stations
Technical Parameters
Typical configurable specifications for a wall-mounted infrared touchless hand washing sink are listed below.
| Core Material | Type 304 stainless coved basin and plain-end sensor spout with low-voltage controller, solenoid, premixer and service shroud |
|---|---|
| Panel Thickness | 1.5 mm formed basin, backsplash and lockable service shroud |
| Effective Width | 560 mm overall single-user sink width |
| Maximum Length | 620 mm maximum overall height including spout and backsplash |
| Steel Facing Thickness | 1.5 mm Type 304 stainless exposed sheet surfaces |
| Core Density | 7900–8000 kg/m³ for Type 304 stainless steel |
| Thermal Conductivity | 14–17 W/(m·K) for Type 304 stainless steel |
| Surface Finish | Satin-brushed Type 304 exterior, smooth coved bowl, blue removable splash block and blue sensor indicator |
| Joint Type | Wall bracket mounting with 35 mm shank spout, quick-connect solenoid hoses, accessible premixer and 38 mm welded waste |
| Customization | Available based on the intended application and operating environment. |
Available Options
Mains or battery controlTimed automatic shutoffIntegral touchless soap dispenserDual-user trough configuration
Planning a Touchless Hand Washing Sink specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
