Air Filters and Chemical Filtration
Terminal HEPA Filter Housing

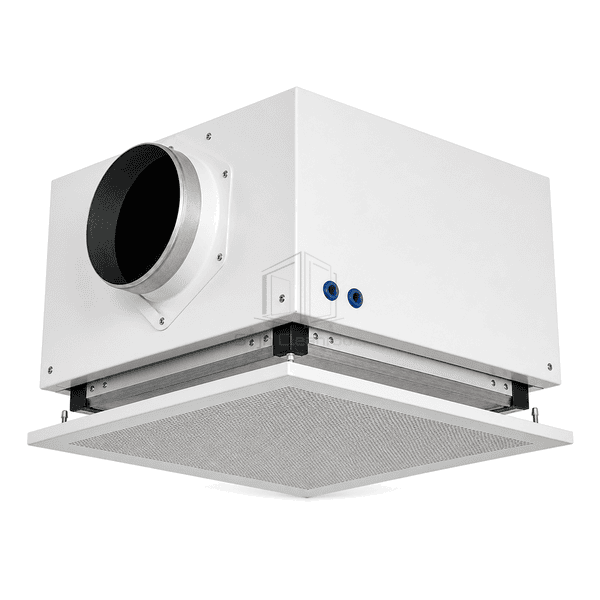

A welded ceiling terminal that seals a slim HEPA filter above an interchangeable diffuser and permits room-side servicing in controlled spaces.
- Room-Side Filter Access
- Welded Ceiling Plenum
- Gasket or Gel Seal
- Interchangeable Diffuser Face
Product Introduction

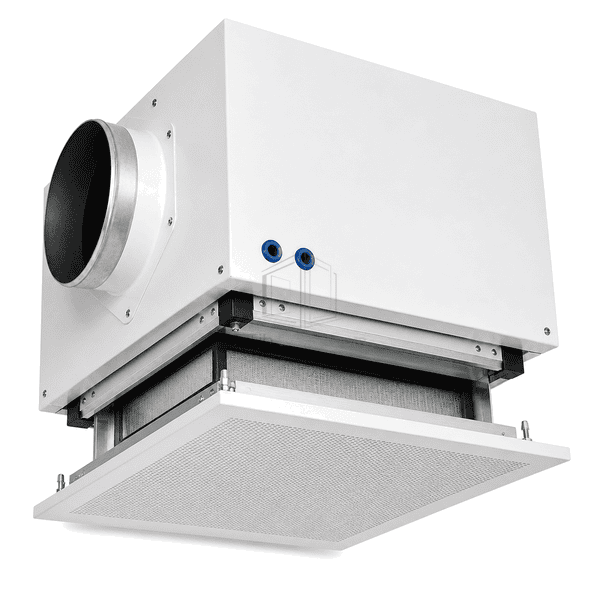

The terminal housing forms the final sealed transition from the branch duct to a cleanroom HEPA filter and diffuser. A top or side spigot feeds the welded plenum, where an internal knife edge or compression flange mates with the selected filter seal. Quarter-turn or swing clamps are accessible after the diffuser face is lowered, so the filter can be changed without opening the ceiling void. Upstream pressure and aerosol ports can also be reached from the room for balancing and integrity testing.
Key Features
Fully welded plenum seams control leakage between the duct and filter face.
Gasket- and gel-seal variants match common slim HEPA frame constructions.
Detachable perforated or swirl diffusers allow the air pattern to be selected independently.
Customer Product Concerns
The final HEPA interface must remain sealed while allowing testing and filter replacement from the clean side.

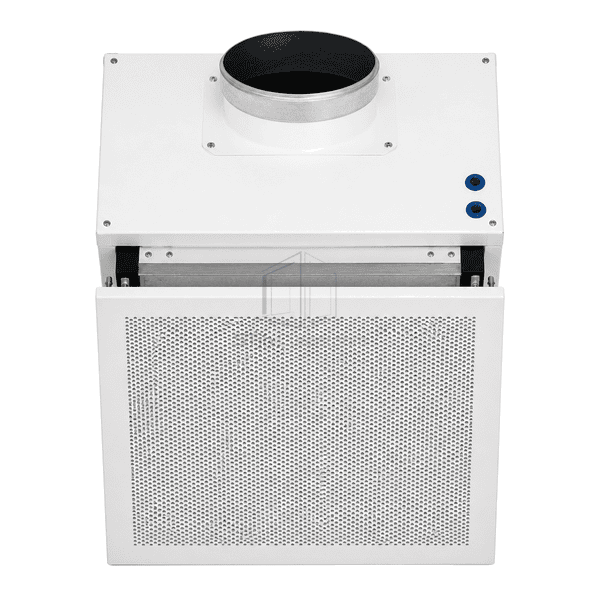

Above-ceiling services block access to the terminal filter.Room-side clamps and removable diffuser panels keep routine service below the ceiling.
A loose plenum seam bypasses the HEPA element.Continuous welding joins the duct spigot, box corners and sealing frame into one enclosure.

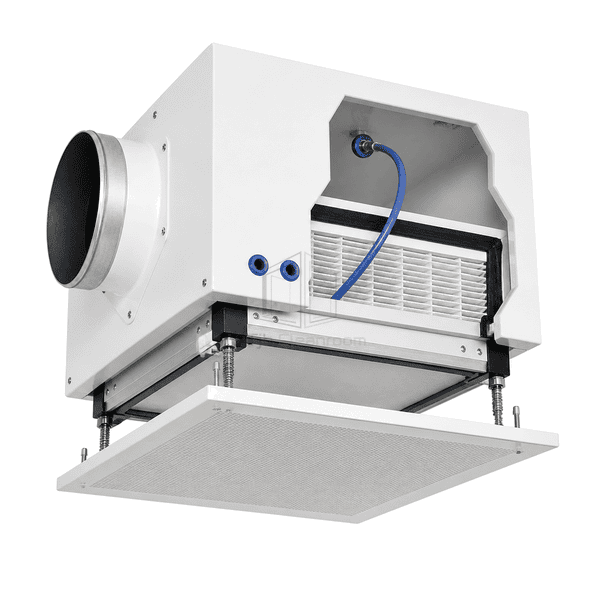

Filter testing requires temporary hoses through the ceiling.Integrated upstream pressure and aerosol ports terminate at the room-side face.
Different rooms need different supply patterns from the same filter size.Interchangeable perforated, swirl or four-way diffuser faces attach to a common terminal housing.
Typical Applications
Pharmaceutical cleanroom ceilingsHospital operating roomsBiotechnology laboratoriesMedical-device productionFood aseptic filling zones
Technical Parameters
Representative dimensions and materials for a cleanroom terminal HEPA housing are listed below.
| Core Material | Fully welded steel plenum with room-side stainless filter clamps and diffuser frame |
|---|---|
| Panel Thickness | 1.0–1.5 mm housing panels |
| Effective Width | 305–1220 mm terminal face width |
| Maximum Length | Up to 1220 mm terminal face length |
| Steel Facing Thickness | 1.0–1.5 mm galvanized, stainless or powder-coated sheet steel |
| Core Density | Approximately 7850 kg/m³ for steel housing and clamp components |
| Thermal Conductivity | Approximately 45–60 W/(m·K) for the steel plenum |
| Surface Finish | Smooth white RAL 9010 powder coat or brushed 304 stainless steel |
| Joint Type | Welded plenum with gasket-compression flange or gel-seal knife edge and removable diffuser |
| Customization | Available based on the intended application and operating environment. |
Available Options
Top or side circular duct inletGasket or gel filter sealPerforated, swirl or four-way diffuserRoom-side pressure and aerosol ports
Planning a Terminal HEPA Filter Housing specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
