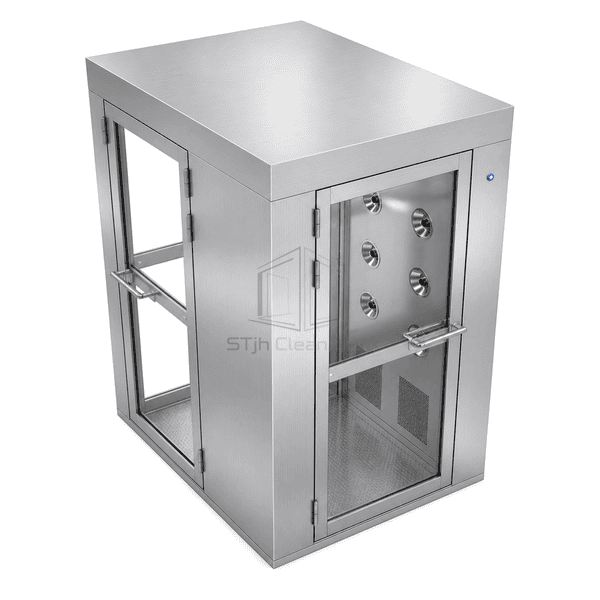

Complete SUS 304 stainless steel cleanroom air shower on a white background

Personnel and Material Decontamination Equipment

SUS 304 Stainless Steel Air Shower

A corrosion-resistant personnel air shower with exposed SUS 304 surfaces for hygienic cleaning in moisture-prone food, pharmaceutical and cosmetic areas.

SUS 304 Hygienic Surfaces
Corrosion-Resistant Interior
Smooth Cleanable Corners
Filtered Garment Jets

Request a Quote Browse Products

Product Introduction

The stainless steel air shower uses SUS 304 for the visible chamber surfaces, doors, return grilles and nozzle faces. Its satin or hairline finish is wipeable and non-flaking, while radiused internal trims reduce crevices where moisture or debris can remain. Behind the hygienic liner, the recirculation system supplies filtered air through adjustable stainless nozzles.

Key Features

Exposed SUS 304 surfaces resist moisture better than ordinary painted mild steel.

Smooth sealed seams reduce dirt-retaining crevices in the occupied chamber.

Stainless nozzle faces and grilles tolerate frequent wipe-down.

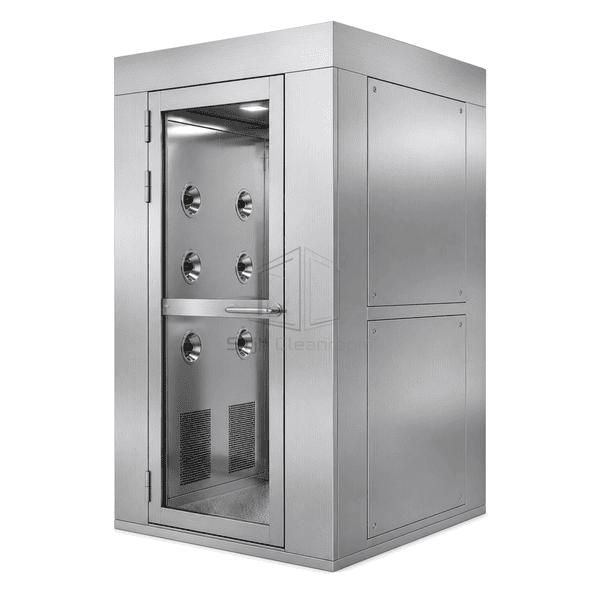

A separated service plenum keeps filters and electrical parts outside the hygiene zone.

Compatible stainless hardware helps prevent staining on visible surfaces.

Customer Product Concerns

Wet sanitation and humid process conditions demand a shower enclosure that remains smooth, corrosion resistant and easy to inspect.

Painted panels chip or blister under repeated sanitation.SUS 304 exposed sheet provides a durable cleanable surface without a paint film.

Sharp seams retain moisture and cleaning residue.Flush joints and radiused trims reduce internal ledges.

Wipe-down water reaches service components.A partitioned service plenum separates controls, motors and filters from the chamber interior.

Mixed-metal fasteners leave stains on stainless panels.Compatible stainless hardware and controlled finishing minimise galvanic marks.

Typical Applications

Food and beverage entrancesPharmaceutical washdown-adjacent roomsNutraceutical productionCosmetics filling areas

Technical Parameters

Typical material and dimensional ranges for a hygienic stainless air shower are listed below.

Core Material	SUS 304 chamber and door construction with insulated backing, stainless nozzles, prefilters and H13 HEPA recirculation
Panel Thickness	50 mm hygienic insulated enclosure panels
Effective Width	800-1500 mm clear cleanable passage width
Maximum Length	Up to 3000 mm modular stainless chamber length
Steel Facing Thickness	1.2-1.5 mm SUS 304 exposed facing
Core Density	45-70 kg/m³ moisture-resistant insulation infill
Thermal Conductivity	0.027-0.037 W/(m·K) for the selected hygienic panel core
Surface Finish	SUS 304 No. 4 hairline or satin finish with smooth sealed internal corners
Joint Type	Flush stainless panel seams with hygienic sealant and compatible interlocked door hardware
Customization	Available based on the intended application and operating environment.

Available Options

SUS 304 or SUS 316L exposed surfacesViewing panel and low-UV LEDFloorless or checker-plate floorSwing or automatic hygienic doors

Planning a SUS 304 Stainless Steel Air Shower specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
