Step-Over Bench

A narrow solid-top Type 304 stainless bench that forms a visible step-over boundary between footwear-change zones while providing a stable surface for the swing-over gowning movement.

Defined clean-to-dirty boundary
Solid crevice-minimized top
Narrow 400 mm profile
Adjustable stainless bullet feet

Request a Quote Browse Products

Product Introduction

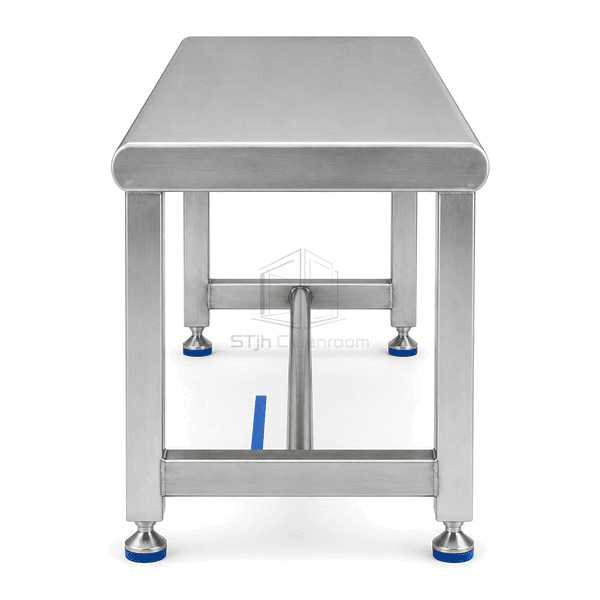

The step-over bench is positioned across a personnel change route to create a deliberate physical boundary between the street-shoe side and the clean-footwear side. Its 400 mm-deep solid Type 304 stainless top provides a stable surface for the seated swing-over movement while remaining narrow enough to discourage walking along the bench. Fully welded end frames, capped tube ends and a continuous folded seat minimize crevices. Adjustable bullet feet stabilize the freestanding unit and permit its removal when the gowning-room floor requires unrestricted cleaning.

Key Features

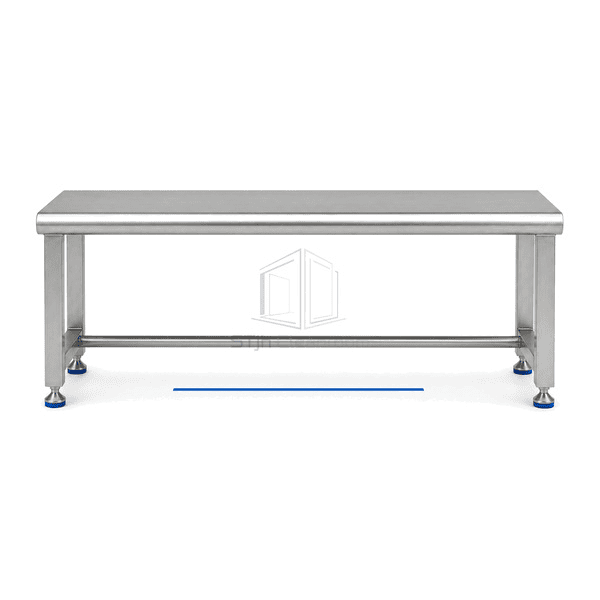

A continuous narrow bench creates an unmistakable physical line that personnel must cross during the footwear-change sequence.

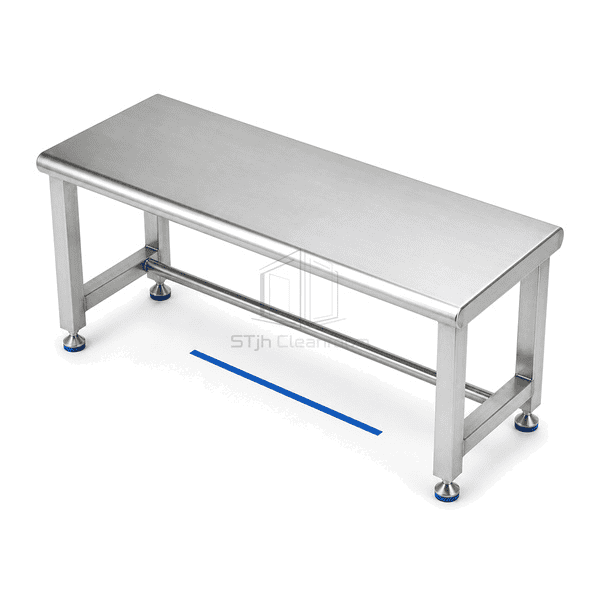

The solid formed top supports the seated swing-over movement without perforations catching disposable shoe-cover material.

Open space beneath the standard bench prevents personal footwear storage from being confused with the clean-side boundary.

A freestanding welded frame can be relocated for deep floor cleaning while bullet feet provide stable everyday placement.

Customer Product Concerns

A controlled footwear change requires a physical boundary that guides the operator's movement without becoming a storage bench or a permanent floor-cleaning obstruction.

Personnel cross an unmarked floor line without completing the intended footwear sequence.The continuous 1200 mm bench forms a visible barrier that must be crossed deliberately.

Perforated seating catches thin shoe covers during the swing-over movement.A smooth solid top provides uninterrupted support beneath the operator.

Integrated cubbies encourage street footwear to migrate beneath the clean-side boundary.The standard open-base design keeps storage separate and leaves the zone beneath fully visible.

Fixed floor barriers complicate periodic edge-to-edge floor cleaning.The freestanding frame can be moved after the adjustable bullet feet are released from load.

Typical Applications

Pharmaceutical clean-to-dirty gowning boundariesBiotechnology personnel airlocksAseptic packaging change roomsMedical-device controlled entrancesHigh-care food production transitions

Technical Parameters

Typical configurable specifications for a freestanding stainless cleanroom step-over bench are listed below.

Core Material	Type 304 stainless solid formed seat on a fully welded tubular open-base frame with four adjustable bullet feet
Panel Thickness	1.5 mm solid formed stainless seat panel
Effective Width	1200 mm standard boundary length
Maximum Length	450 mm maximum overall bench height
Steel Facing Thickness	1.5 mm Type 304 stainless seat and tubular frame walls
Core Density	7900–8000 kg/m³ for Type 304 stainless steel
Thermal Conductivity	14–17 W/(m·K) for Type 304 stainless steel
Surface Finish	Uniform satin-brushed Type 304 solid seat and welded frame with smooth ground corners

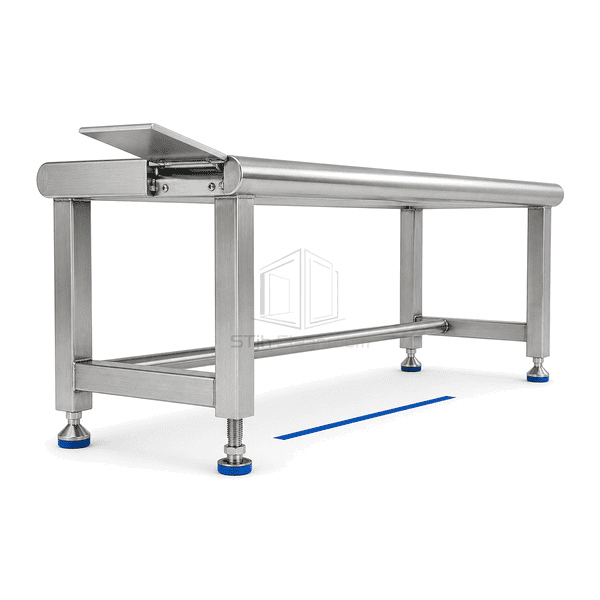

Joint Type	Continuous folded seat welded to open tubular end frames with capped rails and threaded bullet feet
Customization	Available based on the intended application and operating environment.

Available Options

1500 or 1800 mm boundary lengthsOne- or two-sided shoe storagePerforated seat surfaceFloor-mount foot plates
