Cleanroom Utility Systems
Steam Separator
A compact 316L hygienic separator that removes entrained condensate from clean steam before sensitive process equipment and sterilization users.
- Removable hygienic baffle
- Direct low-point condensate drain
- Sanitary clamp or weld interfaces
Product Introduction

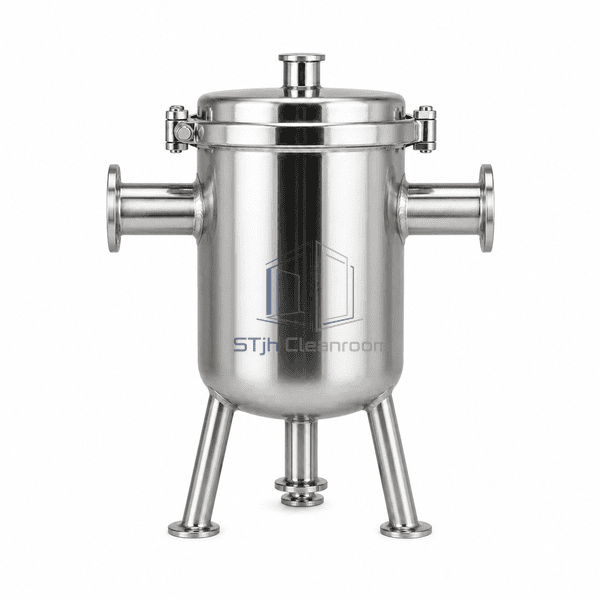

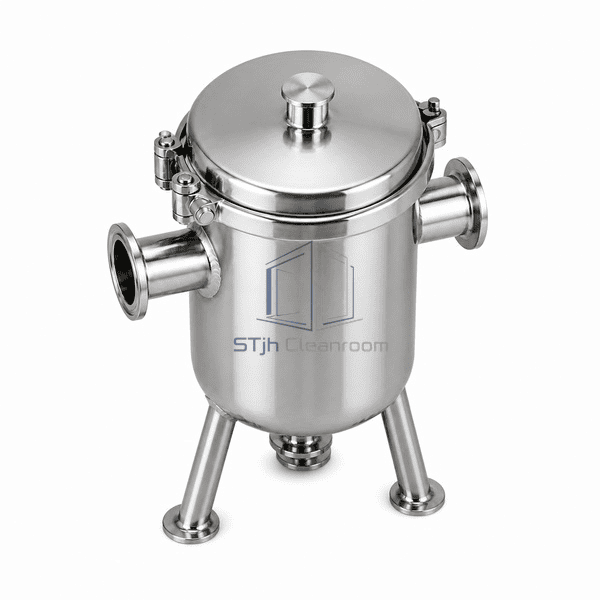

The Steam Separator is an inline moisture-removal vessel for clean and pure steam services where carried-over droplets can reduce heat-transfer consistency, disturb control components or reach a hygienic point of use. Steam enters through the horizontal inlet and changes direction across a removable internal baffle, allowing the heavier liquid phase to collect in the lower chamber while drier steam exits through the opposing outlet. The fabricated 316L body provides a dedicated top vent and a straight bottom drain connection, and the removable cover permits internal inspection and cleaning without treating the separator as a steam trap or filtration element.
Key Features
Low-pressure-drop baffle separation principle
Removable top cover for internal inspection

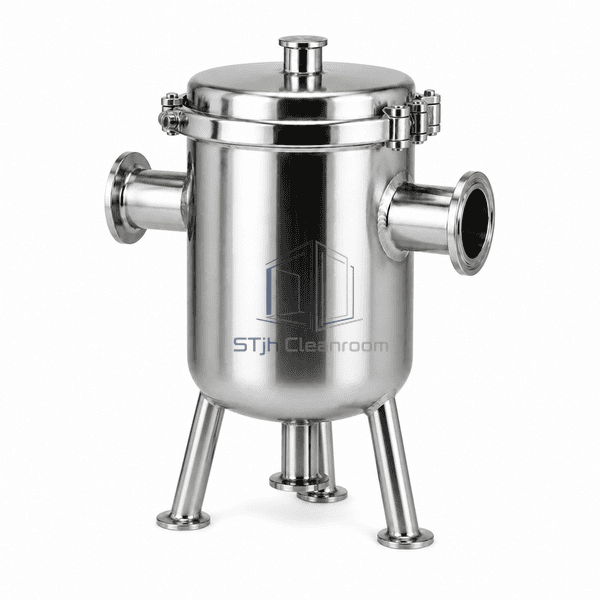

Direct vertical low-point condensate outlet
Separate top connection for air venting
Hygienic clamp or extended weld-end connections
Electropolished internal finish available
Compact inline geometry for horizontal steam mains
Customer Product Concerns
Moisture carried in a clean-steam line must be separated continuously without introducing hard-to-clean internals, stagnant drain geometry or avoidable pressure loss.
Entrained condensate lowers steam dryness at a critical userUse a line-sized baffle chamber that redirects the vapor path and collects the heavier droplets in a dedicated lower section.
Collected liquid can be re-entrained when the drain path is restrictedProvide a straight low-point drain sized for immediate connection to the selected hygienic steam-trap arrangement.

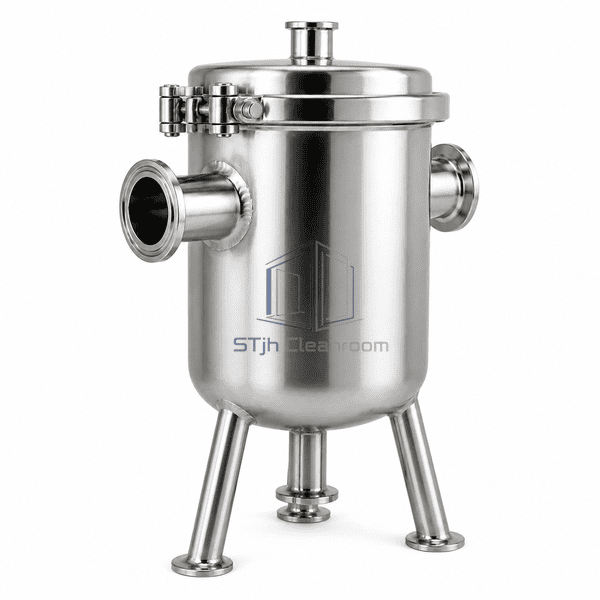

Fixed internals make hygienic inspection and de-rouging difficultRelease the sanitary cover clamp to remove the baffle and expose the product-contact chamber for inspection and cleaning.
Poorly matched connections add dead legs or installation adaptersSelect sanitary clamp or extended tube weld ends to match the clean-steam line size, vent route and condensate connection.
Typical Applications
Clean steam supply to autoclaves and sterilizersPure steam feeds for vessel SIP cyclesAseptic process equipment steam barriersClean steam upstream of control valves or instrumentsHygienic steam services in pharmaceutical and food plants
Technical Parameters
Steam connection size, shell dimensions, design pressure, surface finish, elastomer, vent arrangement and condensate-trap duty are selected for the actual clean-steam load and piping standard.
| Core Material | 316L stainless steel fabricated body, removable baffle, cover, vent and condensate-wetted parts |
|---|---|
| Panel Thickness | Fabricated vessel wall typically 2.0–4.0 mm, selected for body size and design pressure |
| Effective Width | Body outside diameter typically 88.9–141.3 mm across standard sanitary steam sizes |
| Maximum Length | Overall installed height typically up to 532 mm in the standard size range |
| Steel Facing Thickness | Removable baffle and cover components typically 1.5–3.0 mm |
| Core Density | 316L stainless steel density approximately 8000 kg/m³ |
| Thermal Conductivity | 316L stainless steel approximately 15 W/(m·K) at 20°C |
| Surface Finish | Internal finish available to 0.5 µm Ra with electropolishing; external satin finish up to 1.6 µm Ra |
| Joint Type | ASME BPE sanitary clamp inlet, outlet, drain and vent connections, with extended tube weld ends available |
| Customization | Available based on the intended application and operating environment. |
Available Options
12.7–50.8 mm sanitary steam inlet and outlet sizesSanitary clamp or extended tube weld endsElectropolished internal product-contact surfaceProject-selected FDA-compatible cover sealTop automatic air-vent connectionHygienic thermostatic or float-type trap interfaceInsulation and removable stainless claddingAlternative connection sizes and orientations
Planning a Steam Separator specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
