Cleanroom Wall and Ceiling Systems

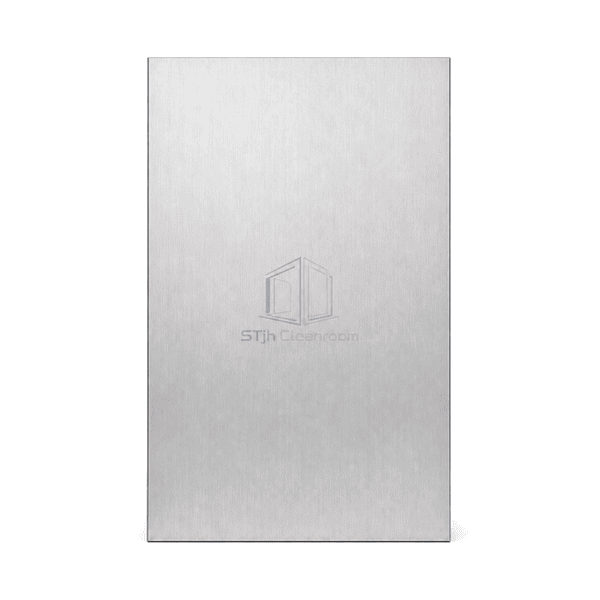

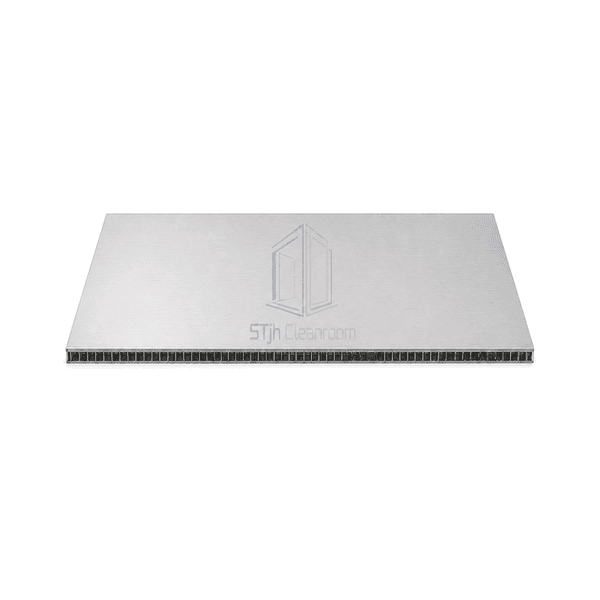

Stainless Steel Cleanroom Wall Liner Panel

A slim 10 mm aluminum-honeycomb liner faced with stainless steel, designed to upgrade existing walls, columns and bulkheads with a rigid, non-shedding surface and minimal loss of room space.

Slim 10 mm Wall Overlay
304 or 316L Stainless Face
Rigid Honeycomb Backing
Sealed Butt-Joint Finish

Request a Quote Browse Products

Product Introduction

The Stainless Steel Cleanroom Wall Liner Panel turns an existing sound substrate into a cleanable controlled-environment surface without building a full-depth partition. A thin aluminum honeycomb core keeps the large stainless sheet flat and resists local impact better than an unsupported skin. Panels fix directly to walls, columns or bulkheads and meet at narrow butt joints that are sealed flush on site. The low build-up preserves usable floor area, while factory-cut edges and openings allow the liner to wrap architectural details neatly.

Key Features

The 10 mm composite adds little depth when retrofitting an occupied room.

Stainless steel provides a durable surface for frequent wiping and demanding hygiene routines.

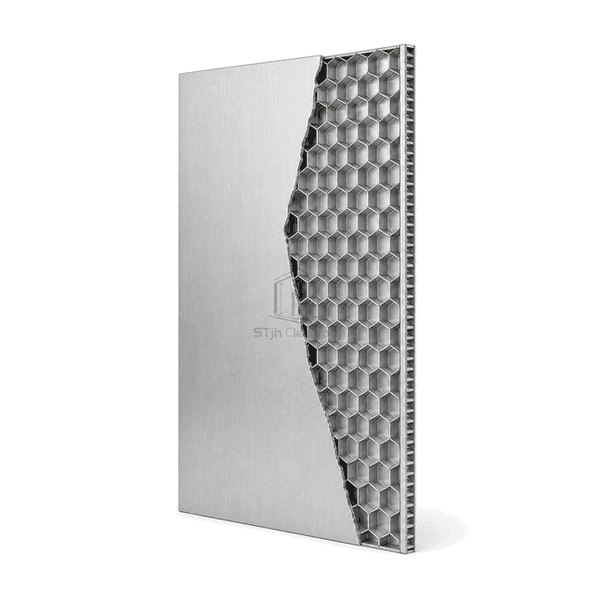

Aluminum honeycomb backing controls sheet waviness across broad wall areas.

A non-fibrous core avoids exposed mineral strands when shaped around columns or bulkheads.

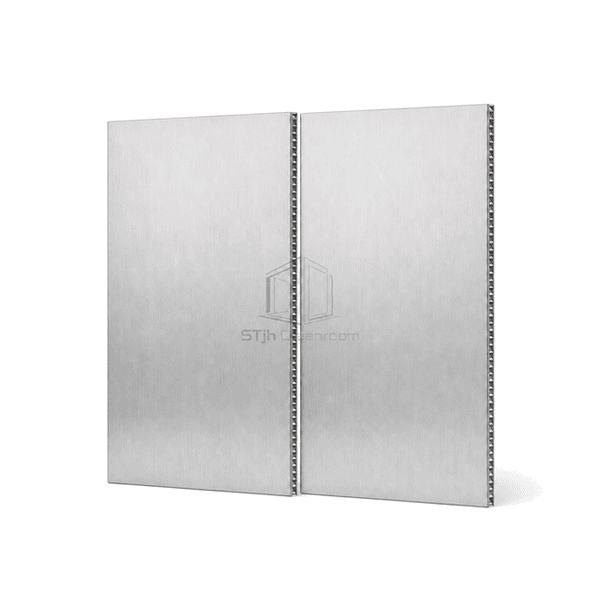

Narrow sealed butt joints create a restrained appearance without bulky connecting trims.

Customer Product Concerns

Liner-panel users need to control room-space loss, sheet waviness, sealed retrofit joints and corrosion exposure from cleaning agents.

A new full-depth partition would reduce usable space in a small existing room.The 10 mm liner fixes over the sound wall substrate with minimal encroachment.

Large single stainless sheets can show ripples and dents after installation.Continuous honeycomb backing supports the metal face and spreads local contact pressure.

Uneven existing walls create visible steps at thin cladding joints.Leveling shims and accurately cut panels establish a common finished plane before sealing.

Aggressive cleaning media may discolor an unsuitable stainless grade or finish.304 or 316L facing and the appropriate 2B, BA or brushed surface can be selected for the exposure.

Typical Applications

Pharmaceutical wash and preparation roomsStainless wall overlays for hygienic food plantsStainless laboratory wall refurbishmentOperating-room column and bulkhead claddingClean manufacturing areas with frequent surface cleaning

Technical Parameters

The values below describe a thin stainless-faced aluminum-honeycomb liner for direct wall cladding.

Core Material	9 mm 3003-series aluminum honeycomb
Panel Thickness	10 mm
Effective Width	1200 mm
Maximum Length	3000 mm
Steel Facing Thickness	0.50–0.80 mm
Core Density	Approximately 27 kg/m³
Thermal Conductivity	0.11–0.15 W/(m·K)
Surface Finish	304 or 316L stainless steel in 2B, BA or brushed finish
Joint Type	Narrow butt joint with flush cleanroom sealant
Customization	Stainless grade, finish, panel shape and cut-outs can be selected for the intended cleaning and exposure conditions

Available Options

304 or 316L stainless steel facing2B, BA or directional brushed finishAdhesive, magnetic or concealed mechanical fixingFactory-shaped column wraps and service cut-outs
