Reinforced Walk-On Cleanroom Ceiling Panel

A reinforced 65 mm aluminum-honeycomb ceiling module with heavier steel skins and structural perimeter framing, developed for cleanroom service voids that require controlled maintenance access above the room.

Maintenance Access Surface
Reinforced 65 mm Module
Structural Edge Frame
Integrated Equipment Openings

Request a Quote Browse Products

Product Introduction

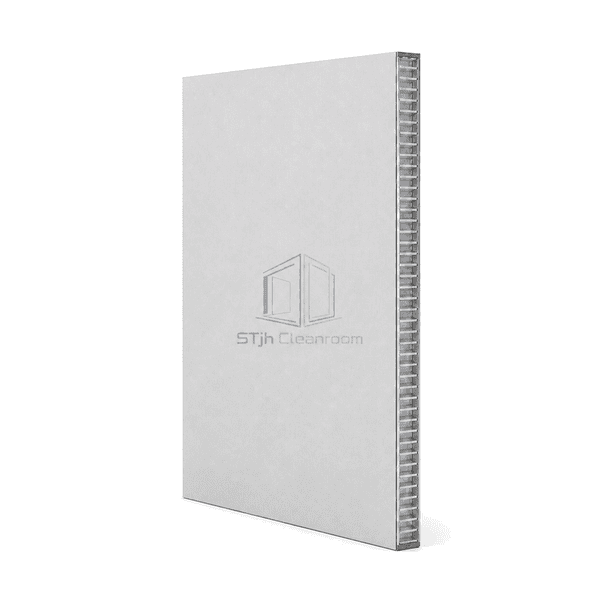

The Reinforced Walk-On Cleanroom Ceiling Panel is built as a deeper bonded composite than a standard suspended tile. Its honeycomb core, heavier facings and extruded perimeter box frame work together to carry distributed maintenance loads across the supporting grid. The underside forms the hygienic cleanroom ceiling, while the upper face provides a stable access surface for authorized service personnel. Openings for HEPA terminals, lights and hatches receive dedicated framing so equipment loads bypass the cellular core and transfer into the suspension structure.

Key Features

Increased panel depth improves bending resistance across typical cleanroom ceiling spans.

Heavier galvanized steel skins tolerate repeated service-side contact better than standard infill tiles.

Extruded box profiles distribute edge reactions into the surrounding support grid.

Reinforced aperture frames carry filter and lighting interfaces without crushing honeycomb cells.

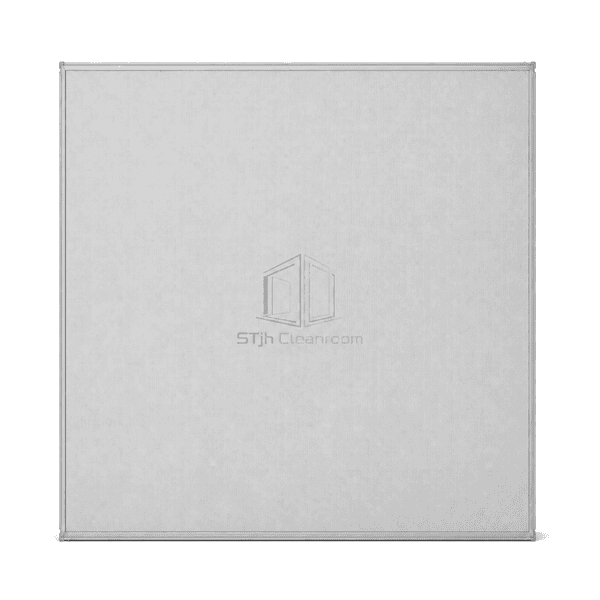

A sealed lower face preserves room cleanliness while maintenance occurs in the ceiling void.

Customer Product Concerns

Walk-on ceiling buyers are most concerned with span behavior, concentrated loads, protected openings and safe access around ceiling-mounted equipment.

Standard ceiling infill can deflect when technicians cross the service void.A deeper honeycomb composite and structural perimeter frame spread maintenance loads to the grid.

Foot pressure near an unreinforced light opening can damage the panel edge.Dedicated aperture frames create a firm border around each service penetration.

A slippery or easily marked upper surface complicates repeated maintenance access.An optional textured top skin improves footing and protects the service side from routine wear.

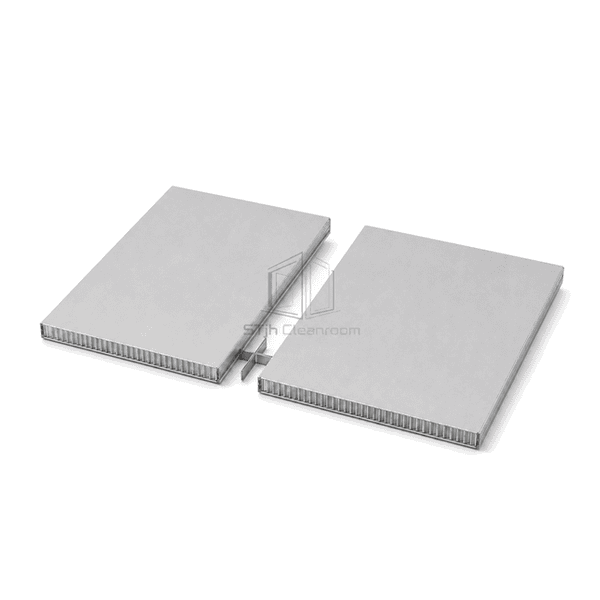

Ceiling joints can open when adjacent panels move differently under load.Rigid cruciform tongues align neighboring modules and maintain a consistent sealed underside.

Typical Applications

Biopharmaceutical service ceilingsSemiconductor interstitial access areasSterile manufacturing suitesMedical production rooms with overhead utilitiesClean facilities requiring filter maintenance from above

Technical Parameters

The reinforced configuration below uses a 65 mm honeycomb panel intended for supported walk-on ceiling construction.

Core Material	3003-series aluminum honeycomb with reinforced aluminum perimeter box frame
Panel Thickness	65 mm
Effective Width	1200 mm
Maximum Length	6000 mm
Steel Facing Thickness	0.70 mm
Core Density	Approximately 27 kg/m³
Thermal Conductivity	0.11–0.15 W/(m·K)
Surface Finish	Smooth coated-steel underside with optional textured galvanized top skin
Joint Type	Reinforced four-side aluminum frame with extruded cruciform connector
Customization	Span, top surface and load-transfer inserts can be configured for the intended maintenance access pattern

Available Options

Textured service-side walking surfaceFramed HEPA and lighting aperturesIntegrated ceiling access hatchAdditional load-spreading inserts at equipment points
