Cleanroom Utility Systems
Purified Water Distribution Loop
A hygienic circulation and monitoring skid for delivering Purified Water through a continuously moving supply-and-return loop.
- Continuous hygienic circulation
- Drainable point-of-use branches
- Integrated pressure, temperature and conductivity monitoring
Product Introduction

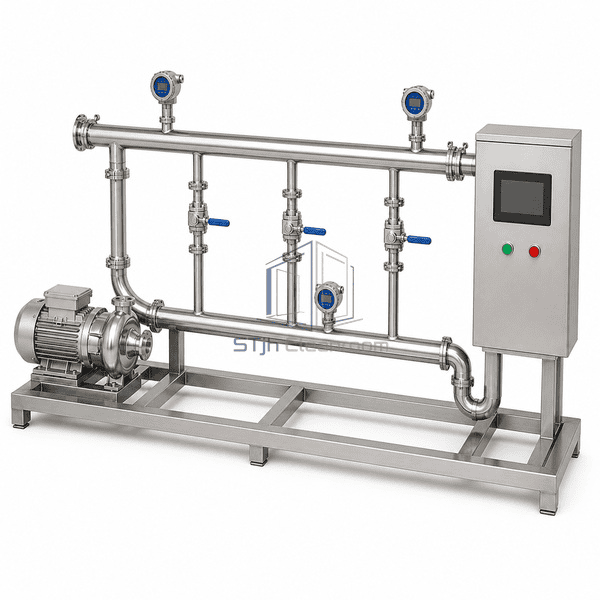

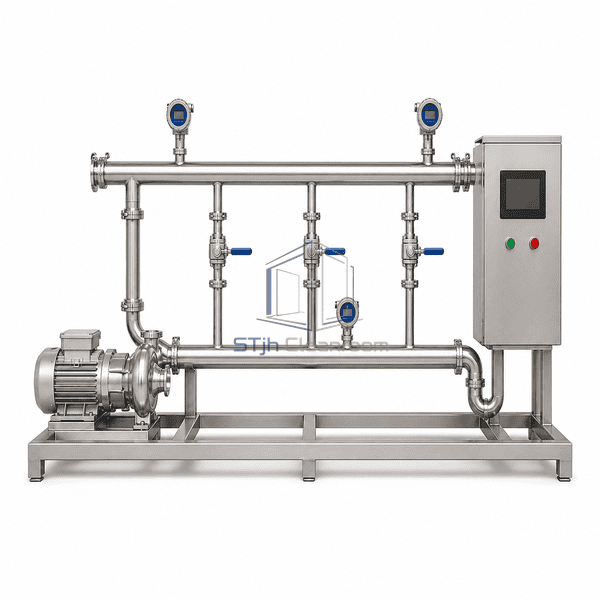

The packaged loop skid connects a Purified Water storage vessel to the facility supply and return headers. A sanitary centrifugal pump maintains circulation, while short drainable branch assemblies provide controlled point-of-use access. Online instruments track hydraulic and water-condition trends, and the local cabinet coordinates pump speed, alarms and interfaces to the upstream generation system.
Key Features

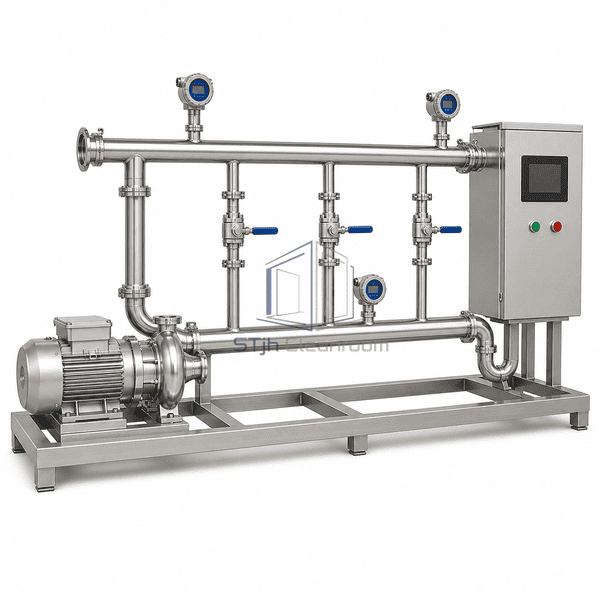

Hygienic centrifugal circulation pump

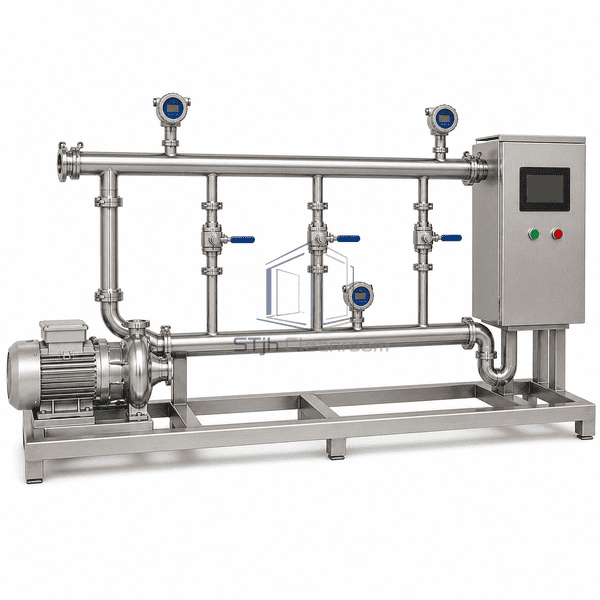

Short drainable diaphragm-valve branches
Variable-speed flow and pressure control
Online conductivity, temperature and pressure instruments
Low-hold-up sanitary fittings and return bends
Compact stainless control cabinet
Skid-mounted layout for factory assembly
Customer Product Concerns
Distribution quality depends on sustaining circulation, controlling branch geometry and matching pump operation to changing point-of-use demand.
Low-demand periods create stagnant sectionsMaintain continuous return flow and use short drainable branches with valves located close to the circulating header.
Pressure falls when several users openUse measured loop pressure and variable-speed pump control sized against the full hydraulic profile.
Water-condition changes are detected too lateMonitor return conductivity and temperature continuously and trend deviations at the local control panel.
Complex field piping is difficult to inspectPreassemble the pump, instruments, hygienic headers and defined branch manifold on an open stainless skid.
Typical Applications
Oral solid dosage manufacturingNon-sterile liquid pharmaceutical productionBiotechnology buffer preparationCosmetic purified-water utilitiesNutraceutical and laboratory PW networks
Technical Parameters
Header size, pump duty and branch count are selected from loop length, elevation, peak draw-off, return-flow target and sanitization strategy.
| Core Material | 316L stainless steel product-contact tube, fittings, valve bodies and pump wetted parts |
|---|---|
| Panel Thickness | Control-cabinet and skid sheet components typically 1.5–3.0 mm |
| Effective Width | Packaged skid width typically 900–2200 mm |
| Maximum Length | Packaged circulation module length typically up to 4000 mm |
| Steel Facing Thickness | Stainless cabinet facing typically 1.5–2.0 mm |
| Core Density | 316L stainless steel density approximately 8000 kg/m³ |
| Thermal Conductivity | 316L stainless steel approximately 15 W/(m·K) at ambient temperature |
| Surface Finish | Hygienic polished product-contact surfaces with satin external skid and cabinet finish |
| Joint Type | Orbital-welded main tubing with drainable sanitary clamp connections at serviceable components |
| Customization | Available based on the intended application and operating environment. |
Available Options
Duty and standby circulation pumpsVariable-frequency pump driveConductivity, TOC and temperature instrumentsAutomated point-of-use valvesAmbient or hot-water sanitization interfaceLoop return heat exchangerRemote alarm and data interfaceCustom branch count and header size
Planning a Purified Water Distribution Loop specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
