Cleanroom Utility Systems
Point-of-Use Air Filter
A compact terminal compressed-air filter that combines coalescing, activated-carbon adsorption and final particulate polishing in one monitored, drainable housing mounted close to the consuming equipment.
- Three purification functions in one service housing
- 80 m³/h nominal flow at 7 bar
- 330 mbar new-condition dry differential pressure
Product Introduction

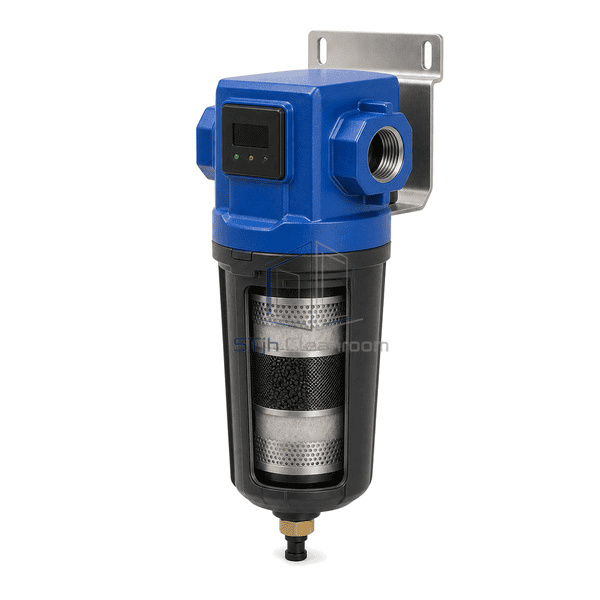

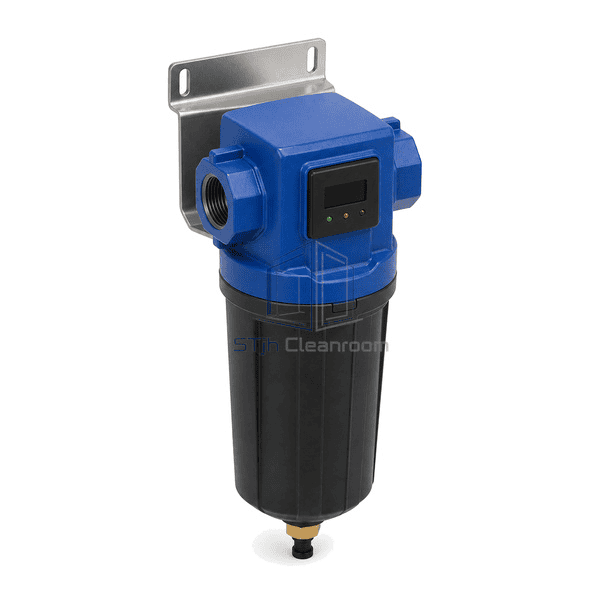

The Point-of-Use Air Filter is an equipment-side purification unit for branches where distribution-pipe contamination, oil vapour and residual aerosol must be reduced immediately before compressed air reaches the consumer. The selected DF-T 0080-class assembly places one combined three-zone element inside a compact die-cast aluminum housing: a borosilicate coalescing section first removes fine liquid aerosol and particles, a packed coconut-shell activated-carbon section adsorbs oil vapour and hydrocarbons, and a final high-performance particle section retains carbon fines and downstream solids. Two opposed G 3/4 ports maintain straight-through flow, while a rotatable monitoring head, pneumatic float drain and adjustable wall bracket support installation and servicing in limited space. The unit does not dry water vapour, regulate pressure or provide sterilizing-grade microbial retention, so upstream drying and any application-specific sterile barrier remain separate functions.
Key Features
Borosilicate-fleece stages provide fine aerosol and particle capture before and after the carbon bed
Coconut-shell activated carbon targets oil vapour and hydrocarbon odour that a coalescing-only filter cannot remove
An integrated Economizer monitors service time and differential pressure to support condition-based element replacement

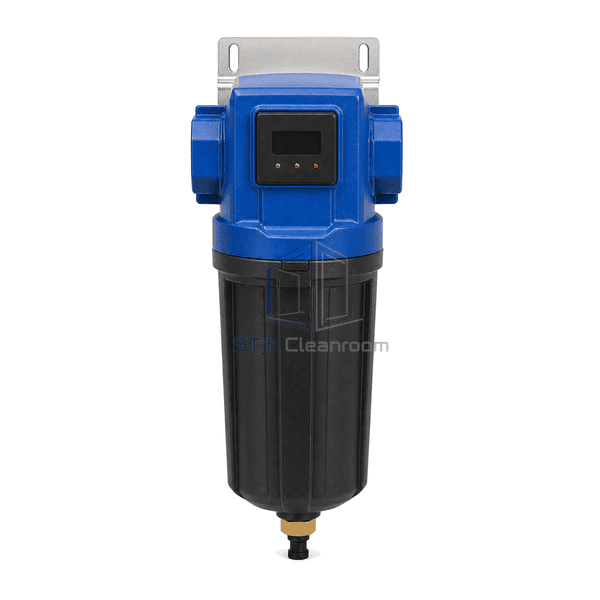

The head-mounted indicator can be rotated toward the service aisle without changing the opposed line-port orientation
A bottom KA 1/2 pneumatic float drain continuously discharges separated liquid without adding a manual drain routine

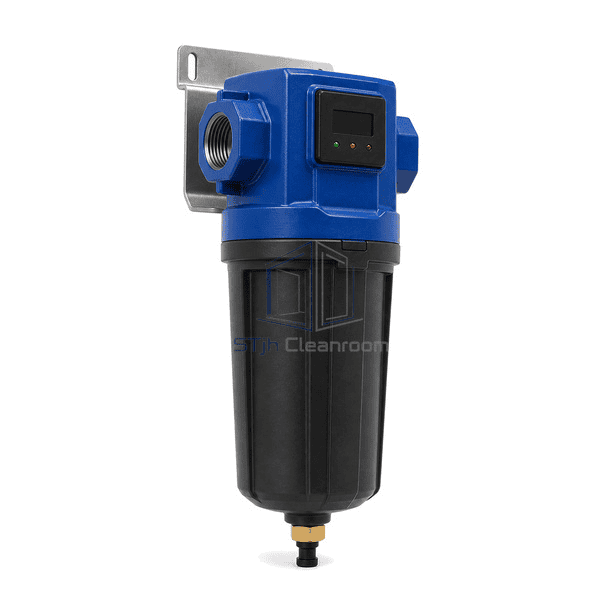

The pressure-interlocked bayonet connection allows the bowl and element to be removed together while resisting opening under pressure
An adjustable wall bracket keeps the terminal unit close to the consuming machine and preserves clearance beneath the bowl
Customer Product Concerns
A terminal filter can be undersized, saturated or bypassed when peak demand, upstream condensate, carbon loading and maintenance clearance are treated as secondary details.
A distant central filter cannot remove rust, pipe scale or hydrocarbon contamination released downstream in the distribution branchInstall the compact three-stage housing as close as practical to the consuming equipment, with the correct flow direction and a short clean outlet connection.
Liquid condensate reaching the carbon section can consume adsorption capacity and increase pressure lossProvide effective upstream bulk-water separation and drying, keep the housing vertical and route the pneumatic float drain to an appropriate condensate system.
A filter selected only by average air use may create excessive pressure drop during machine peaksSize the unit from maximum simultaneous demand at minimum inlet pressure, then check the published correction basis and allowable terminal pressure loss.
Oil vapour breakthrough can occur before a heavily loaded element shows an obvious external changeUse the service-life and differential-pressure indication together with a defined replacement interval based on temperature, inlet oil load and operating hours.
Treating a point-of-use purifier as a regulator, dryer or sterile filter can leave a critical air-quality requirement unmetSpecify pressure regulation, pressure-dewpoint control and a validated microorganism-retentive final filter as separate downstream or upstream functions when the process requires them.
Typical Applications
Final oil-vapour and particle control at packaging-machine compressed-air branchesTerminal filtration for cleanroom pneumatic actuators and precision valvesEquipment-side air preparation for laser cutting and purging-gas servicesPoint-of-use protection for analytical instruments and laboratory air consumersFinal polishing upstream of paint, coating and surface-treatment toolsCompact compressed-air treatment beside food, pharmaceutical and electronics process equipment where a separate sterile barrier is not specified
Technical Parameters
The selected catalogue-scale identity is a DF-T 0080-class three-stage terminal filter using a DF 0210-size housing. It is approximately 382 mm high and 139 mm wide, has opposed G 3/4 threaded connections and publishes 80 m³/h nominal flow at 7 bar(g), referenced to 1 bar absolute and 20°C. Under the manufacturer's stated inlet conditions, the new dry differential pressure is 330 mbar and the outlet target is ISO 8573-1:2010 Class 1 for solid particles and oil, with oil below 0.003 mg/m³. The housing is rated to 16 bar and +1°C to +65°C, although an operating temperature no higher than 30°C is recommended to protect activated-carbon service life; the published reference life is 2000 hours at 20°C and about 1000 hours at 30°C for the stated mineral-oil condition. Delivered quality and service life depend on upstream drying, inlet aerosol and vapour load, pressure, temperature, flow profile, drain function and maintenance practice.
| Core Material | Three-zone element with borosilicate coalescing and final particle fleece, polyester drainage fleece, coconut-shell activated carbon, 304 stainless liners and molded end caps |
|---|---|
| Panel Thickness | Representative die-cast aluminum head and bowl pressure-wall sections typically 3.0–5.0 mm |
| Effective Width | 139 mm representative overall housing width for the selected DF-T 0080-class unit |
| Maximum Length | 382 mm representative assembled height for the selected DF-T 0080 housing |
| Steel Facing Thickness | 304 stainless filter-element support liners typically 0.4–0.8 mm before forming |
| Core Density | Approximately 500–600 kg/m³ representative packed density for coconut-shell activated-carbon granules |
| Thermal Conductivity | Representative structural aluminum reference range 150–172 W/(m·K) at 20–25°C; actual die-cast housing alloy is supplier-selected |
| Surface Finish | Immersion-coated medium-blue aluminum head, graphite-black bowl, black polymer monitor face, natural brass and black-polymer drain parts, and natural stainless wall bracket |
| Joint Type | Two opposed G 3/4 threaded inline ports, pressure-interlocked bayonet head-to-bowl connection, bottom KA 1/2 pneumatic float drain and adjustable wall bracket |
| Customization | Available based on the intended application and operating environment. |
Available Options
DF-T 0050, 0080 and 0110 flow sizes for 50, 80 or 110 m³/h nominal demand at 7 barG 1/2, G 3/4 or G 1 threaded line connections according to the selected sizeRotatable Economizer orientation for service-side visibilityOptional adjustable differential-pressure alarm output for remote monitoringPneumatic float or compatible level-controlled condensate-drain arrangementsAdjustable wall-support configuration for restricted equipment baysPerbunan and fluorocarbon sealing selections compatible with the selected element designUpstream water separation and adsorption-dryer packages for the required pressure dewpoint
