Cleanroom Wall and Ceiling Systems

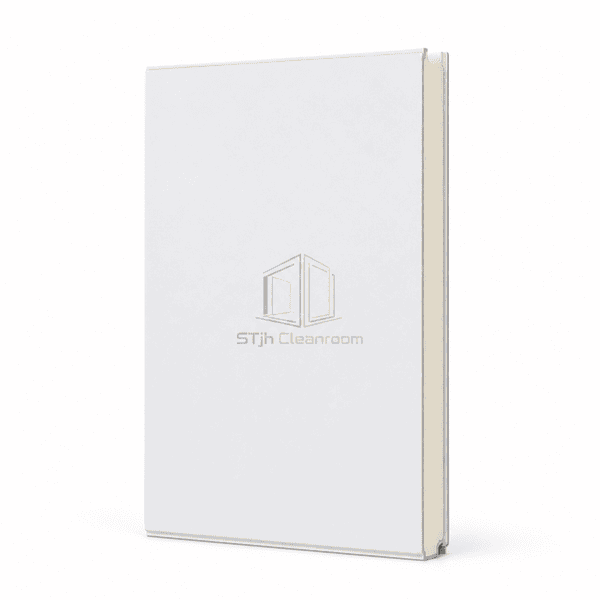

PIR Insulated Cleanroom Panel
A rigid metal-faced cleanroom panel with a closed-cell polyisocyanurate core, selected for temperature-controlled enclosures that need high insulation efficiency, low panel weight and improved heat stability compared with conventional PU foam.
- Closed-Cell PIR Core
- High Thermal Efficiency
- Improved Heat Stability
- Airtight Interlocking Edge
Product Introduction

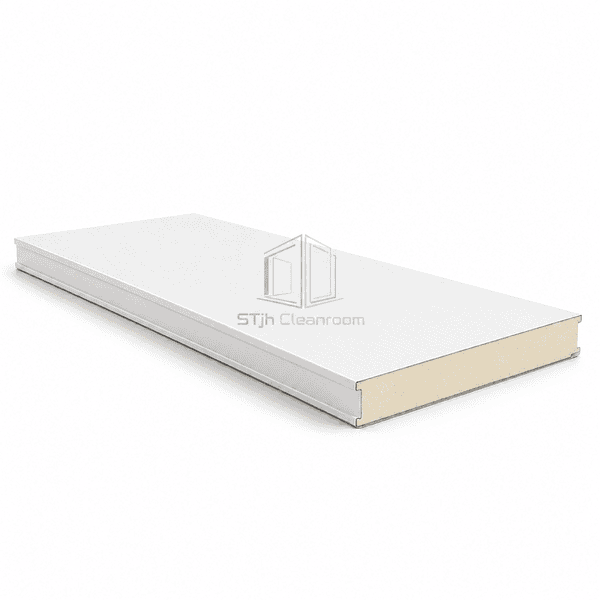

PIR Insulated Cleanroom Panels are continuously bonded with a rigid polyisocyanurate foam core between coated steel skins. The highly cross-linked core structure maintains efficient insulation and offers better stability at elevated temperature than standard polyurethane foam. Low density keeps modules easy to lift, while the bonded composite resists everyday bending during transport and assembly. Concealed joints close the insulation line between adjacent panels and provide a clean sealant channel, making the system useful for cold interfaces, temperature-controlled production and energy-conscious cleanroom envelopes.
Key Features
A highly cross-linked core retains shape better than conventional PU during elevated-temperature exposure.

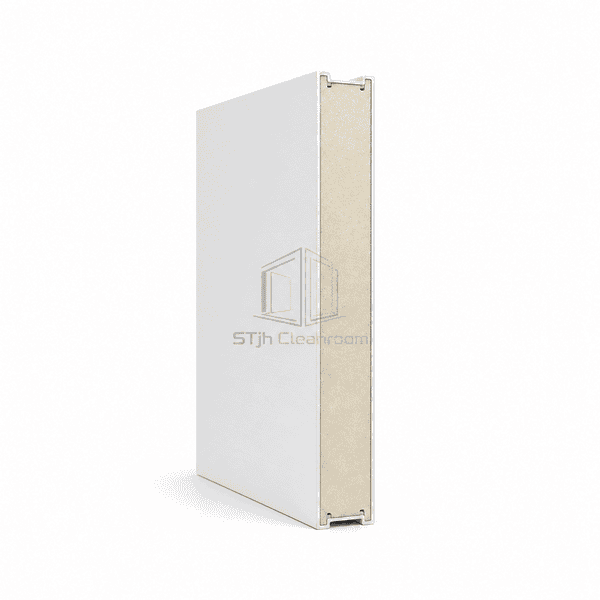

Closed cells limit moisture migration through the insulation layer.
Continuous foam-to-steel bonding produces a light but torsionally rigid module.

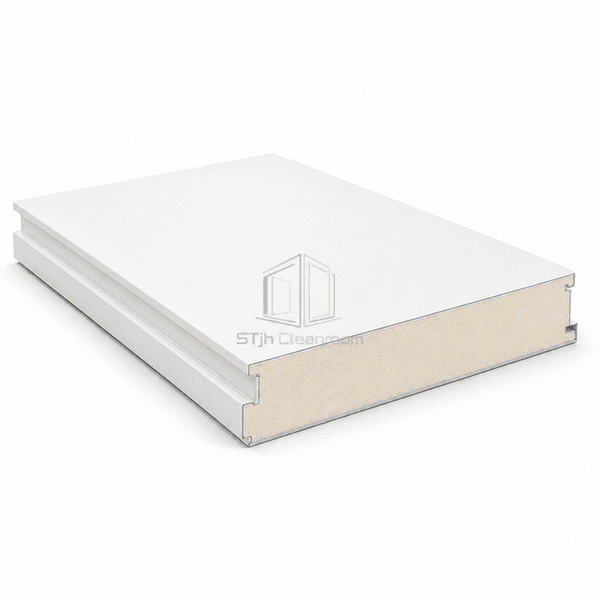

Interlocking edges reduce thermal bypass and create a repeatable hygienic joint.
Customer Product Concerns
Customers compare long-term insulation, joint condensation, foam protection and dimensional stability under temperature cycling.
A warm-side air leak can cause condensation inside a cooled wall joint.Tight interlocking profiles and uninterrupted sealant close the primary vapor path.
Repeated temperature cycling can stress foam-to-metal bonds.Controlled lamination and compatible adhesives maintain composite action across normal operating cycles.
Service cut-outs can leave the rigid foam exposed to damage.Factory-finished openings close the core with metal or polymer edge profiles.
Thermal bridges at corners undermine an otherwise efficient insulated wall.Insulated corner details and continuous panel tongues preserve the thermal layer at junctions.
Typical Applications
Temperature-controlled pharmaceutical suitesBiotechnology process roomsClean cold-room transitionsFood packaging clean areasElectronics rooms with stable temperature requirements
Technical Parameters
Typical production ranges for PIR insulated cleanroom panels are listed below.
| Core Material | Rigid closed-cell polyisocyanurate foam |
|---|---|
| Panel Thickness | 50, 75, 100, 120 or 150 mm |
| Effective Width | 1000, 1050 or 1130 mm |
| Maximum Length | 12000 mm |
| Steel Facing Thickness | 0.40–0.60 mm |
| Core Density | 40 ± 3 kg/m³ |
| Thermal Conductivity | 0.021–0.023 W/(m·K) |
| Surface Finish | Polyester, polyurethane, PVDF or food-safe coated galvanized steel |
| Joint Type | Concealed tongue-and-groove joint with continuous air seal |
| Customization | Available based on the intended application and operating environment |
Available Options
Food-safe inner coatingStainless steel process-side faceCam-lock cold-room connectionAlternative panel thickness and length
Planning a PIR Insulated Cleanroom Panel specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
