Mobile UV-C disinfection trolley with stainless base and deployed lamp arms

Cleanroom Lighting and Electrical Equipment

Mobile UV Disinfection Lamp

A wheeled UV-C treatment unit with protected lamp arms, programmable cycle control and safeguards for repositioning between unoccupied rooms.

Fold-Out UV-C Lamp Arms
Lockable 360-Degree Casters
Programmable Treatment Timer

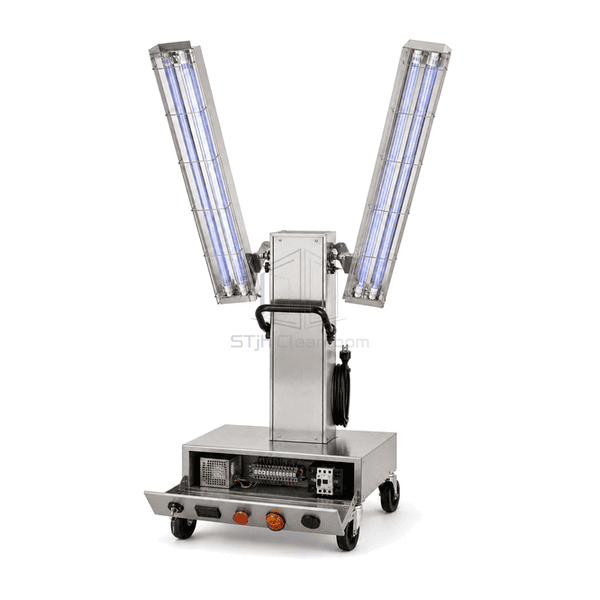

Key and Motion Safeguards

Request a Quote Browse Products

Product Introduction

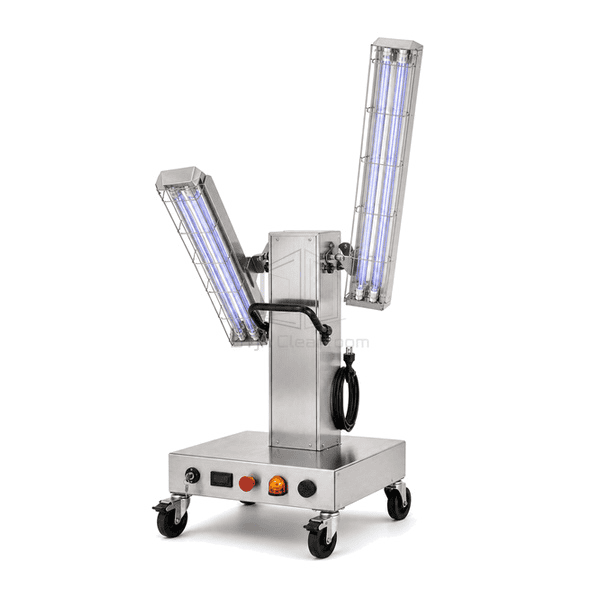

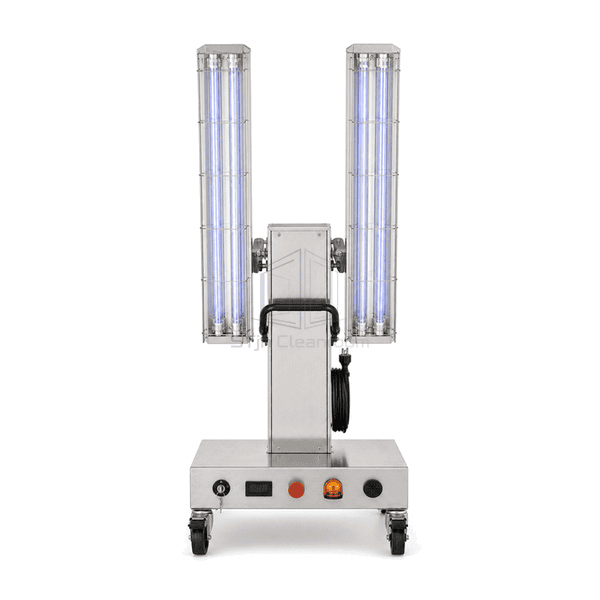

The mobile trolley places multiple UV-C lamps on one or two vertical folding arms above a stable stainless base. Four swivel casters allow the unit to be positioned in different rooms, while key control, delayed start, audible warning and optional motion sensors support a controlled unoccupied treatment cycle. Lamp shields or folding panels protect the quartz tubes during transport and storage.

Key Features

Opposed lamp arms extend the line-of-sight coverage from one central position.

A delayed start gives the operator time to leave before the cycle begins.

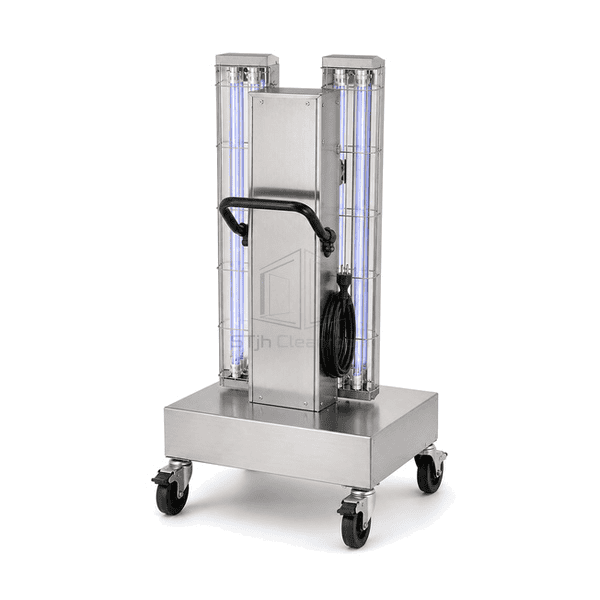

Lockable casters stabilize the trolley after placement.

An audible alert and active indicator distinguish treatment from standby.

Folding protective arms shield fragile lamps when the cart is moved.

Customer Product Concerns

A mobile UV-C device must balance broad exposure geometry with safe transport, stable placement and controlled operation.

One lamp face leaves large areas shadowed behind equipment.Multiple outward-facing arms distribute irradiation in several directions.

The trolley rolls or tips when placed on a sloped floor joint.A low weighted base and individual caster brakes stabilize the unit.

Quartz lamps break during movement between rooms.Fold-in guards protect the lamps within the trolley outline during transport.

An accidental entry can expose personnel during a cycle.Key control, warning delay and optional motion interruption support restricted operation.

Typical Applications

Terminal room treatmentLaboratory surface cyclesGowning room treatmentUnoccupied equipment bays

Technical Parameters

Typical configurable construction ranges for a mobile UV-C disinfection trolley are listed below.

Core Material	SUS304 base and column with UV-resistant polymer controls, UV-C lamps, reflectors and electronic timer
Panel Thickness	1.0-2.0 mm formed enclosure panels over the weighted base
Effective Width	350-650 mm deployed trolley footprint
Maximum Length	Up to 1600 mm overall operating height
Steel Facing Thickness	1.0-1.5 mm SUS304 body and lamp-arm covers
Core Density	Approximately 7900-8000 kg/m³ for the stainless structure
Thermal Conductivity	14-16 W/(m·K) for the stainless enclosure
Surface Finish	Fine-brushed stainless body with black controls, amber warning light and clear lamp shields
Joint Type	Folding lamp-arm hinges with retained guards, enclosed cable routing and lockable caster mounts
Customization	Available based on the intended application and operating environment.

Available Options

Single- or dual-arm arrangementRemote controlMotion-sensor interruption15-120 minute programmable timer

Planning a Mobile UV Disinfection Lamp specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
