Personnel and Material Decontamination Equipment

Mobile Ionizing Personnel Blow-Off Portal

A doorless ionising blow-off portal on a lockable mobile base for flexible personnel treatment at temporary clean zones and changing work cells.

Doorless Mobile Portal
Lockable Wheeled Base
Ionising Blow-Off Air
Rapid Work-Cell Relocation

Request a Quote Browse Products

Product Introduction

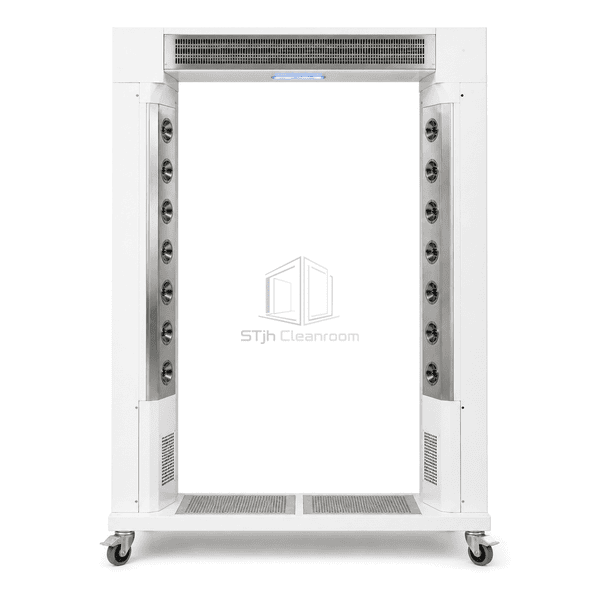

This mobile unit is a doorless open ionising pass-through portal, not a wheeled enclosed air-shower booth. Side housings carry ionising blow-off heads and the compact air equipment, while a bridged frame remains open for personnel to walk through. Locking castors, forklift provisions or adjustable feet allow the portal to be moved between indoor work cells and stabilised for use without permanent floor fixing.

Key Features

The open portal permits quick passage without doors, thresholds or a sealed chamber.

A rigid mobile base carries the complete frame for short-distance relocation.

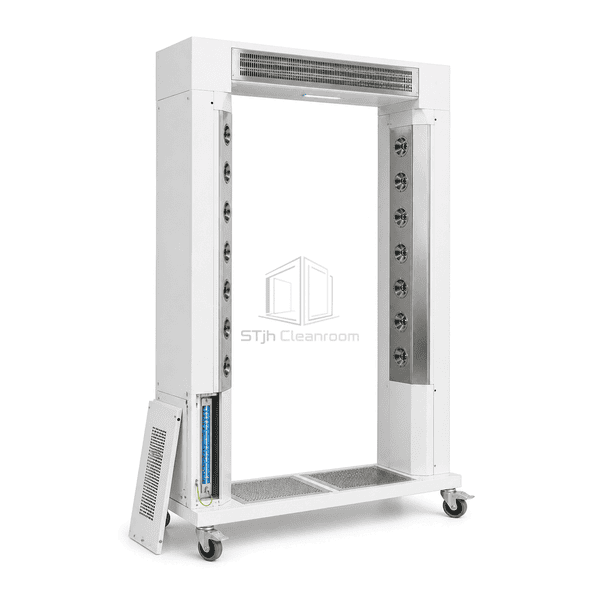

Locking castors and levelling feet help stabilise the unit before operation.

Ionising blow-off heads can be directed toward garment and equipment surfaces.

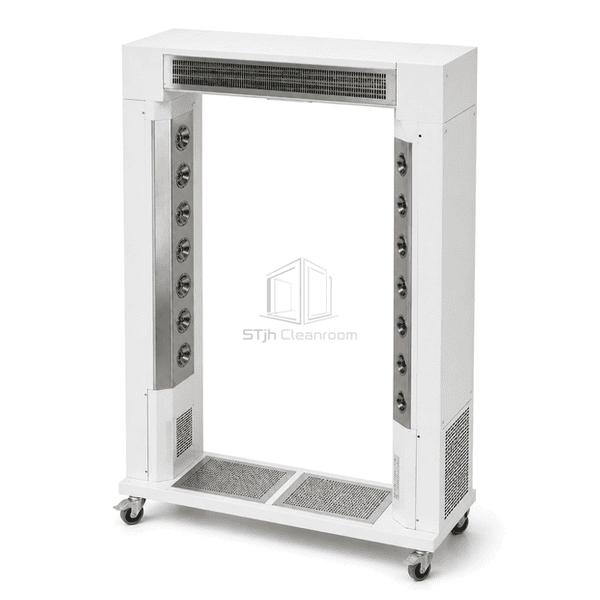

A detachable connection boot can align the portal with a temporary partition when required.

Customer Product Concerns

A mobile static-control station must move easily between work cells while remaining stable, open and practical during personnel use.

Temporary work cells do not justify a fixed static-control installation.The self-supporting portal can be relocated between indoor production areas.

A wheeled frame can move or twist while people pass through it.Locking castors and adjustable levelling feet stabilise the base in its operating position.

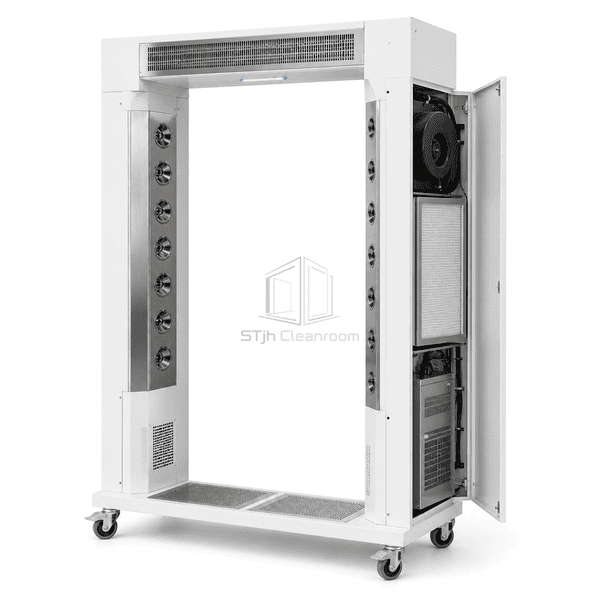

Static-control equipment is difficult to reconfigure when a temporary line moves.The integrated mobile frame retains the ionising heads and compact air equipment as one unit.

A temporary clean partition needs a neat interface around the treatment point.An optional flexible connection boot can close the gap to a compatible partition opening.

Typical Applications

Pilot production clean zonesTemporary electronics assembly cellsRelocatable laboratory areasEquipment installation projects

Technical Parameters

Typical construction ranges for a doorless mobile ionising blow-off portal are listed below.

Core Material	Powder-coated steel or aluminium portal frame on a reinforced mobile base with ionising blow-off heads and serviceable inlet filtration
Panel Thickness	1.0-1.2 mm equipment-side housing panels
Effective Width	800-1000 mm clear doorless passage width
Maximum Length	Up to 1600 mm overall mobile portal span
Steel Facing Thickness	1.0-1.2 mm formed steel casing over the mobile support frame
Core Density	30-45 kg/m³ acoustic PET-fibre infill in the blower housings
Thermal Conductivity	0.034-0.040 W/(m·K) for the acoustic housing infill
Surface Finish	White powder-coated frame with stainless nozzle faces and lockable dark-grey castors
Joint Type	Bolted portal-frame joints on a lockable wheeled base with removable equipment covers
Customization	Available based on the intended application and operating environment.

Available Options

Lockable castors or forklift pocketsAC or pulsed-DC ionisationFlexible partition connection bootDetachable access ramp
