Cleanroom Furniture and Stainless Steel Products
Mobile Cleanroom Workbench
A rigid stainless workbench on low-shedding locking casters for relocating tools and temporary process stations within controlled areas.
- Low-shedding swivel casters
- Two positive wheel brakes
- Integrated push handles
- Fully welded stainless top
Product Introduction

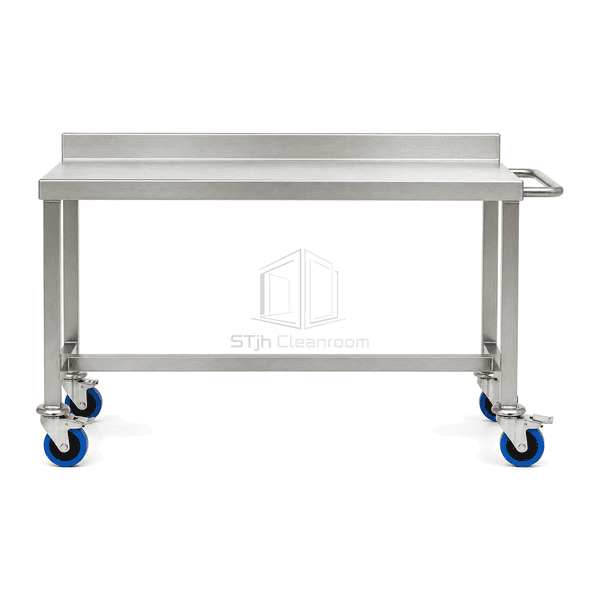

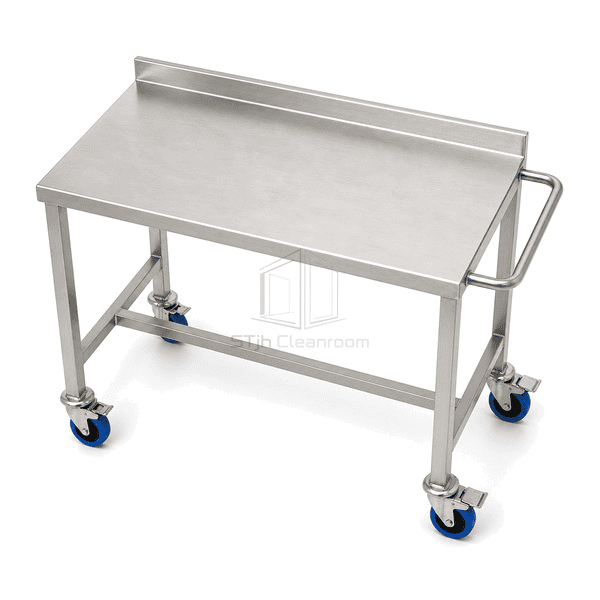

The mobile cleanroom workbench adds controlled mobility to a welded stainless work platform. Large cleanroom-compatible polyurethane or phenolic wheels roll over floor joints with less vibration than small industrial casters. Two braked swivel casters secure the table during work, while a tubular push handle keeps hands away from equipment. Raised wheel forks and an open lower frame remain visible and accessible during sanitation.
Key Features
Opposed wheel brakes restrain both rotation and swivel while the station is in use.

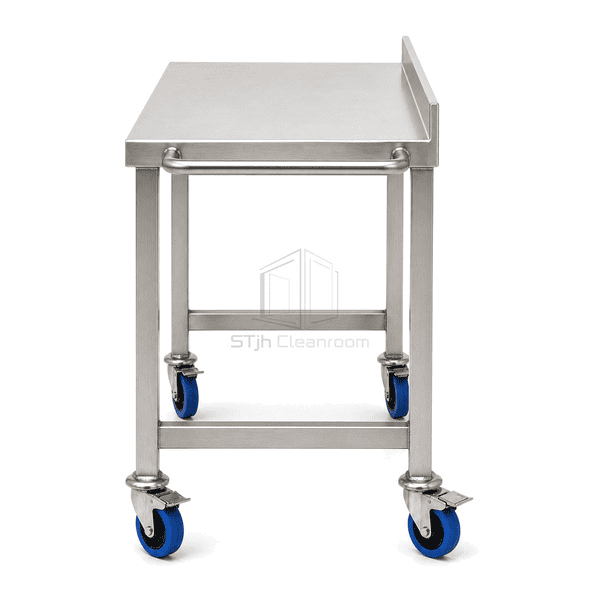

An integrated handle provides a defined push point without touching the work surface or equipment.

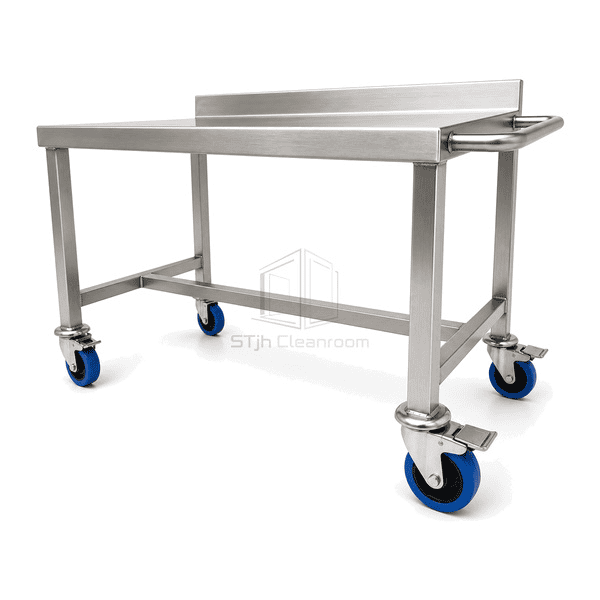

Open caster forks and radiused frame tubes expose wheel areas for inspection and cleaning.
Customer Product Concerns
Improvised mobile tables often roll during use, shed from unsuitable wheels or transmit floor shock to sensitive equipment.
Small hard wheels chatter across cleanroom floor seams.Larger polyurethane or phenolic wheels reduce impact and rolling vibration.
A cart without a defined handle is pushed by its sanitary worktop.The welded rear handle separates manoeuvring contact from the process surface.
Single-wheel brakes allow the opposite end to pivot during work.Two diagonally positioned total-lock casters stabilize the complete bench.
Covered caster housings conceal hair and wiping debris.Open stainless forks keep wheel treads and axles visible for sanitation.
Typical Applications
Temporary assembly stationsMobile inspection setupsBatch changeover supportEquipment maintenance stagingCleanroom line balancing
Technical Parameters
Typical configurable specifications for a mobile cleanroom workbench are listed below.
| Core Material | Solid Type 304 stainless steel worktop and welded mobile frame |
|---|---|
| Panel Thickness | 1.2–2.0 mm reinforced worktop skin |
| Effective Width | 600–800 mm work surface depth |
| Maximum Length | 2000 mm |
| Steel Facing Thickness | 1.2–2.0 mm stainless steel |
| Core Density | 7900–8000 kg/m³ solid stainless steel |
| Thermal Conductivity | 14–16 W/(m·K) for austenitic stainless steel |
| Surface Finish | Brushed No. 4 or electropolished stainless steel |
| Joint Type | Continuous welded frame with bolted sealed-stem cleanroom casters |
| Customization | Available based on the intended application and operating environment. |
Available Options
100 or 125 mm polyurethane castersFour total-lock castersRemovable lower shelfConductive ESD wheel package
Planning a Mobile Cleanroom Workbench specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
