Industry-Specific Cleanroom Equipment
Medical Pass Box

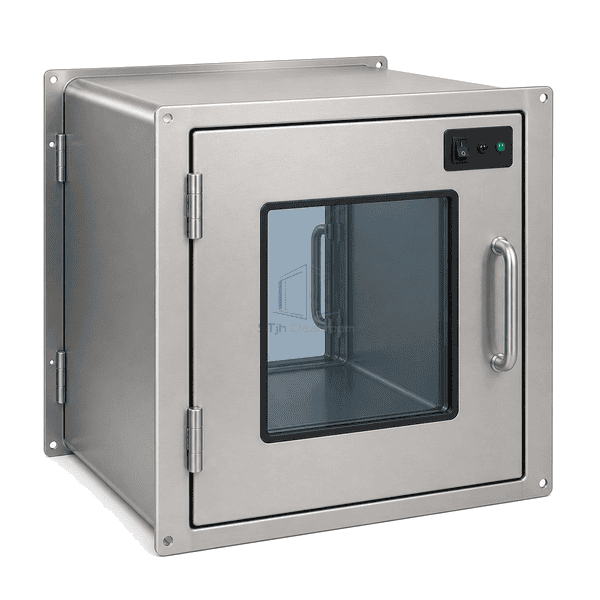

A wall-mounted static 316L stainless transfer chamber with opposing electromagnetic interlocked doors, observation windows and clear door-status indication.
- 316L Coved Chamber
- Opposing Interlocked Doors
- Dual Observation Windows
- Red-Green Door Status
Product Introduction

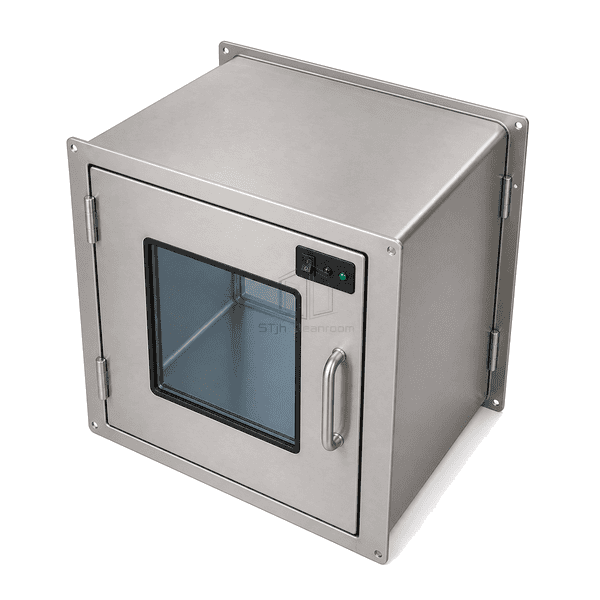

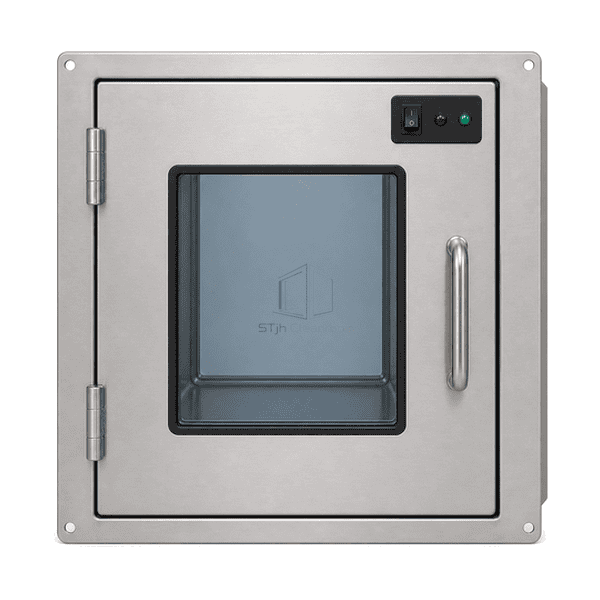

The medical pass box is a straight-through static transfer chamber for moving packaged supplies and small clinical materials between adjacent controlled rooms without routine personnel passage. Its double-wall 316L stainless shell encloses the interlock components away from the cleanable chamber, while continuously joined internal surfaces and coved corners reduce ledges around the transfer path. Matching hinged doors on both sides use tempered-glass windows, compression gaskets and an electromagnetic interlock so only one side is released at a time. A simple front control switch and red-green indicators give operators an immediate local view of door status without adding an airflow or filtration module.
Key Features

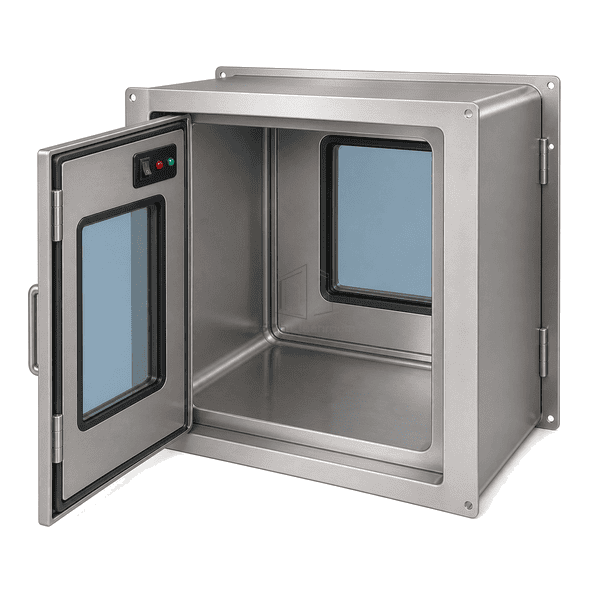

The 316L stainless interior uses smooth welded transitions and coved corners for accessible wipe-down cleaning.
Equal glazed windows let staff confirm chamber occupancy before operating either door.
A double-wall shell isolates lock hardware from the unobstructed transfer compartment.
Customer Product Concerns
Medical material transfer must limit unnecessary room entry while keeping the chamber observable, cleanable and unambiguous to operators on both sides.
Opening both sides together can create a direct path between rooms with different pressure or cleanliness conditions.The opposing electromagnetic locks allow one door to be released while retaining the other door closed.
Frequent disinfectant wiping can expose seams, ledges and mild materials to staining or residue accumulation.A 316L stainless chamber with continuous joints and coved internal transitions provides a corrosion-resistant accessible surface.
Staff may operate a hatch without knowing whether material remains inside or the opposite side is active.Matching observation windows and red-green status lamps provide visual confirmation before each transfer step.
Interlock parts projecting into the chamber create hard-to-reach cleaning points.The double-wall enclosure keeps the lock mechanism outside the unobstructed transfer compartment.
Typical Applications
Surgical-suite supply transferHospital pharmacy clean areasClinical laboratory support roomsCentral sterile service interfaces
Technical Parameters
Typical configurable construction values for a wall-mounted static 316L medical pass box are listed below.
| Core Material | Double-wall AISI 316L stainless steel chamber and doors with tempered-glass windows, silicone gaskets and electromagnetic locks |
|---|---|
| Panel Thickness | 50-90 mm double-wall shell and door section |
| Effective Width | 450-750 mm clear transfer chamber width |
| Maximum Length | Up to 1000 mm configurable clear chamber depth |
| Steel Facing Thickness | 1.0-1.5 mm AISI 316L stainless sheet |
| Core Density | 8000 kg/m³ for AISI 316L stainless steel |
| Thermal Conductivity | 15 W/(m·K) for AISI 316L stainless steel at room temperature |
| Surface Finish | Neutral satin brushed 316L stainless steel with smooth welds and coved internal corners |
| Joint Type | Continuously joined double-wall chamber with gasketed opposing hinged doors and electromagnetic interlock |
| Customization | Available based on the intended application and operating environment. |
Available Options
Application-selected clear chamber dimensionsSatin brushed or electropolished 316L internal finishFixed and removable wall-flange arrangementsMechanical interlock for non-powered installations
Planning a Medical Pass Box specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
