Medical Gas Terminal Box

A recessed four-port medical gas outlet assembly with a brushed AISI 304 face panel, gas-specific keyed terminal units and one clear protective cover for a clean wall interface.

Four Gas-Specific Outlets
Flush-Mounted Stainless Panel
Keyed Quick-Connect Interfaces
Shared Clear Protective Cover

Request a Quote Browse Products

Product Introduction

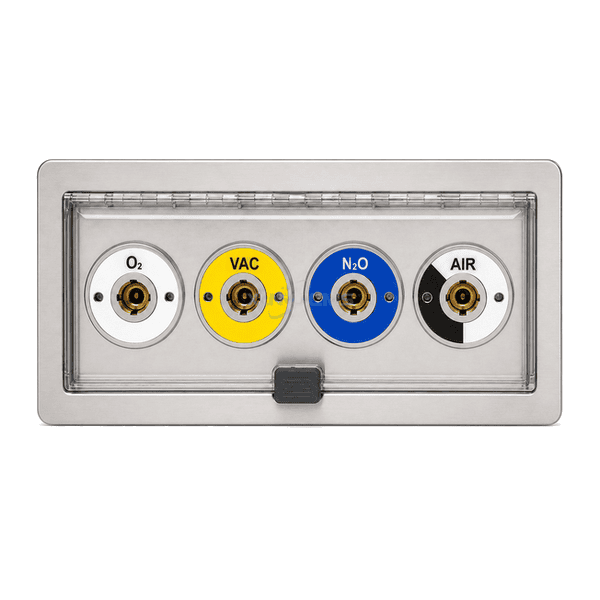

The Medical Gas Terminal Box is a compact, flush-mounted point-of-use assembly for connecting clinical equipment to a piped medical gas system. The illustrated four-port configuration arranges oxygen, vacuum, nitrous oxide and medical air in one horizontal stainless-steel panel. Each outlet combines a gas-specific keyed connector, internal shut-off function and individual copper tube tail inside a recessed galvanized-steel back box. A single top-hinged transparent cover protects the unused sockets while leaving their colour rings visible, and the radiused brushed face supports routine wipe-down around the wall interface. This terminal box is a patient-use connection panel; it is not an area shut-off valve box, pressure-monitoring alarm or ceiling supply pendant.

Key Features

Four independently piped terminal positions provide a compact horizontal connection point without combining the gas paths inside a common manifold.

Gas-specific keyed sockets help prevent a probe intended for one service from engaging a different terminal type.

Front-accessible outlet cartridges and internal maintenance shut-off functions allow a terminal position to be serviced without removing the complete recessed enclosure.

The satin AISI 304 face frame, radiused edges and shared clear cover present a low-projection surface suited to modular operating-room and clinical wall systems.

Customer Product Concerns

A multi-service wall terminal must keep each gas path unmistakable, accessible and protected while fitting within a shallow, cleanable clinical-wall assembly.

Adjacent outlets can create a wrong-connection risk when their interfaces are visually similar.Each terminal uses a gas-specific keyed socket together with a distinct identification ring and service symbol.

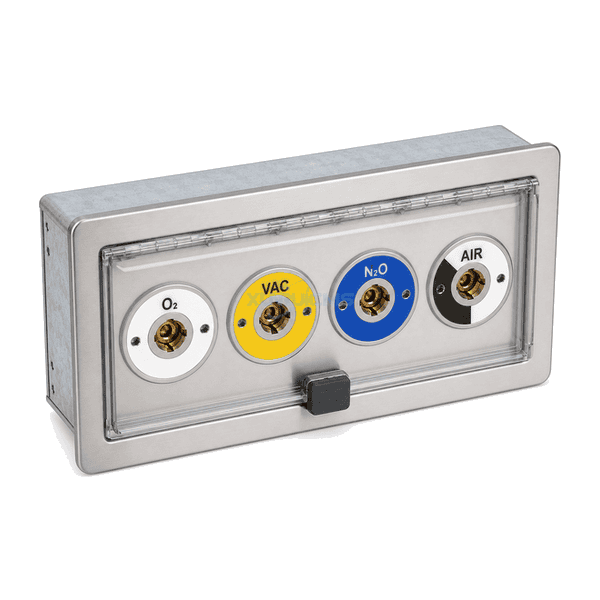

A projecting surface box can obstruct equipment movement and collect dust around its upper edges.The recessed back box keeps the radiused stainless face panel close to the finished wall for a compact wipe-down interface.

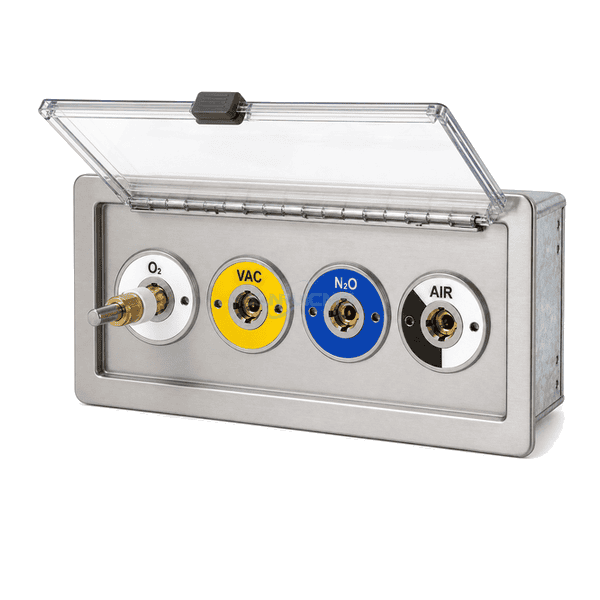

Unprotected sockets may collect debris or be struck while no clinical device is connected.One transparent hinged cover shields all four unused terminal faces while preserving a clear view of their colour identification.

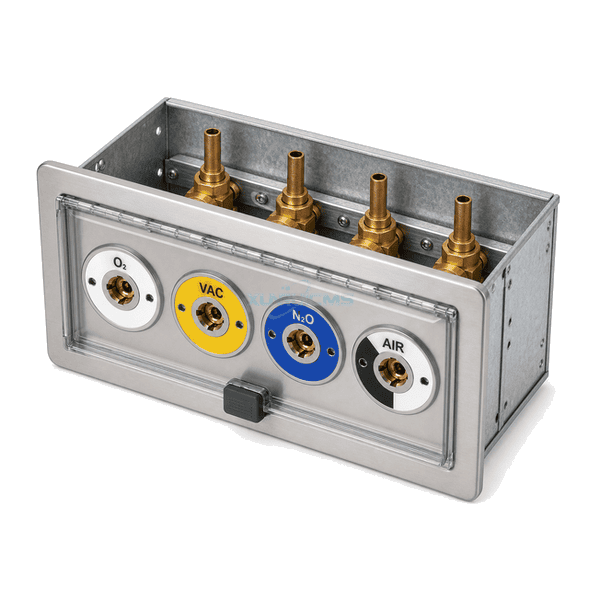

Servicing one worn connector can become disruptive when the whole panel must be removed or the gas paths are not individually accessible.Front-removable terminal cartridges, separate rear valve bodies and individual copper tails create a defined service route for each outlet position.

Typical Applications

Modular operating-room wall systemsPost-anesthesia care and recovery baysIntensive-care and high-dependency treatment roomsHospital procedure rooms and clinical clean areas

Technical Parameters

Typical configurable construction values for the illustrated four-port recessed medical gas terminal box are listed below.

Core Material	Machined brass terminal bodies, copper tube tails, AISI 304 stainless-steel face panel, galvanized-steel recessed box and clear polycarbonate cover
Panel Thickness	1.2 mm nominal brushed stainless face-panel sheet
Effective Width	585 mm nominal four-outlet face-panel width
Maximum Length	Up to 585 mm overall horizontal panel length
Steel Facing Thickness	1.2 mm AISI 304 stainless-steel front facing
Core Density	8500 kg/m³ for representative machined brass terminal components
Thermal Conductivity	116 W/(m·K) for representative C36000 brass at room temperature
Surface Finish	Vertical-grain satin AISI 304 face with visible gas-service colour rings and a clear polycarbonate protective cover
Joint Type	Four gas-specific keyed quick-connect terminal cartridges with internal check valves and individual 10-12 mm copper pipe tails
Customization	Available based on the intended application and operating environment.

Available Options

BS, DIN, AFNOR or other project-selected gas-specific terminal interfacesFour service positions selected from oxygen, vacuum, medical air, nitrous oxide and other compatible pipeline servicesStraight, upward or side-entry copper tube-tail arrangement within the recessed boxAlternative face-panel width, stainless finish and protective-cover configuration
