Lux Meter

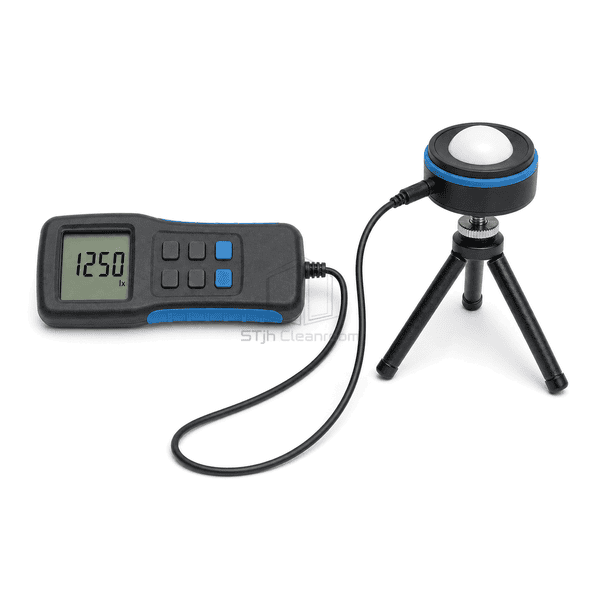

A professional handheld lux meter with a cabled cosine-corrected light sensor for evaluating illuminance at cleanroom work surfaces and facility lighting points.

Separate cosine-corrected light sensor.
Timed hold for shadow-free readings.
Tripod-ready measurement head.

Request a Quote Browse Products

Product Introduction

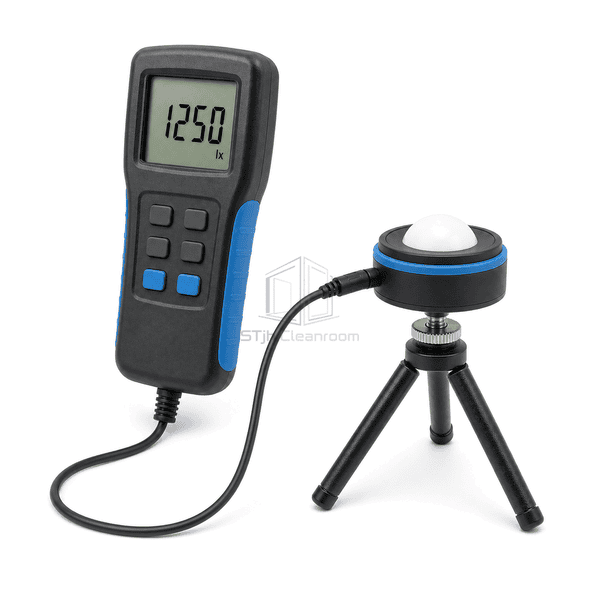

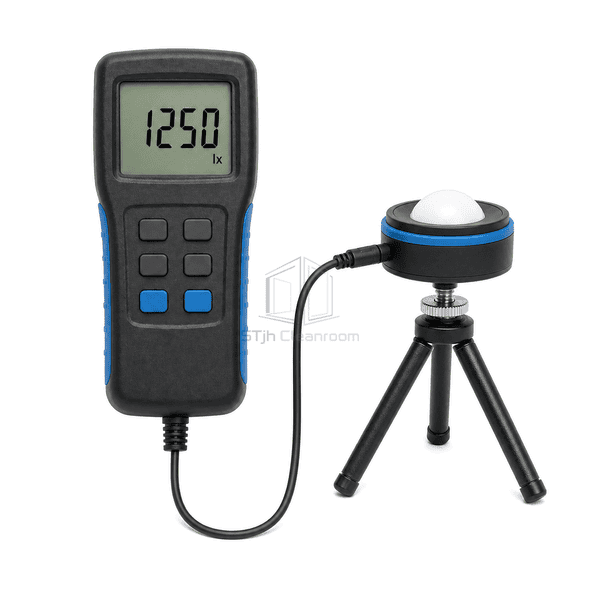

This portable illuminance meter separates the display from the light-receiving head so the sensor can be positioned at the actual measurement plane without the operator shading or reflecting light onto it. A silicon photodiode beneath a white diffuser responds to visible light, while optical filtering and cosine correction help the detector represent how illuminance reaches a flat surface from different directions. The handheld unit provides automatic or manual range selection, hold and timed-hold operation, maximum and minimum recall, point averaging and reading storage for structured lighting surveys.

Key Features

Separate cabled sensor allows the display and operator to remain outside the measurement plane.

Cosine-corrected white diffuser supports representative readings from oblique incident light.

Visible-response optical filtering suits common fluorescent, LED and daylight measurements.

Automatic and manual ranges cover low-level emergency lighting and bright task-lighting checks.

Timed hold reduces the influence of an operator's shadow or clothing reflection at the sensor.

Threaded sensor mount and compact tripod maintain a repeatable height and orientation during grid surveys.

Customer Product Concerns

Reliable illuminance surveys depend on sensor angle, measurement height, source spectrum and the operator's position, so the detector must be placed consistently without disturbing the light field.

The technician's body can cast a shadow or reflect light toward the detector and change the reading.The cabled sensor and timed-hold mode let the operator step away before the value is captured.

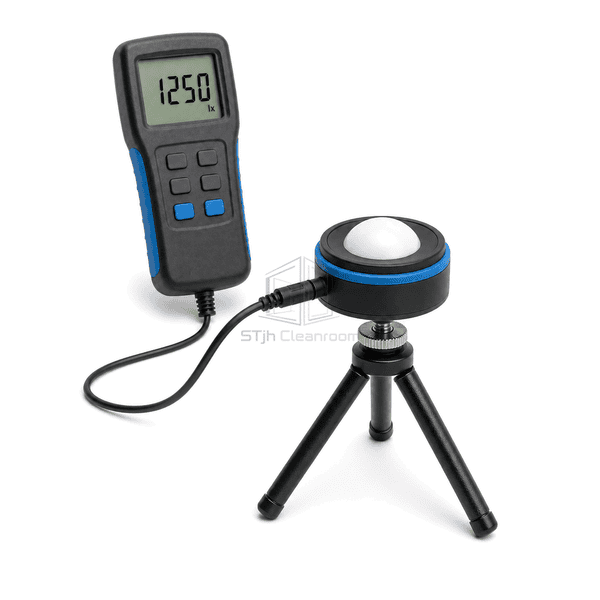

A detector tilted away from the defined work plane can make grid measurements difficult to compare.The flat sensor base and 1/4-inch tripod mount hold the diffuser level at a repeatable height.

LED, fluorescent and daylight sources have different spectral distributions.A silicon photodiode and visible-response correction filter provide a measurement response aligned with photopic illuminance.

Single readings do not show whether lighting is uniform across a room or workbench.Point averaging and stored readings support a repeatable measurement grid and later comparison.

Typical Applications

Cleanroom work-plane illuminance surveysInspection bench and task-light verificationLaboratory lighting uniformity mappingEmergency and escape-route lighting checksFacility LED retrofit acceptance measurements

Technical Parameters

Representative professional lux-meter construction is listed below; measuring range, data interface, extension cable and sensor support can be selected for the lighting survey method.

Core Material	ABS/PC handheld housing with TPE grip zones, silicon photodiode, optical correction filter, white polymer diffuser and copper signal cable
Panel Thickness	Typically 2.0-3.0 mm for the molded handheld enclosure wall
Effective Width	Approximately 60-78 mm across the handheld indicator
Maximum Length	Approximately 149-170 mm for the indicator and 120-135 mm for the separate sensor body
Steel Facing Thickness	Typically 0.8-1.2 mm for stainless fasteners, internal shield and tripod threaded insert
Core Density	Approximately 1100-1200 kg/m³ for the ABS/PC enclosure blend
Thermal Conductivity	Approximately 0.19-0.22 W/(m·K) for the ABS/PC enclosure blend
Surface Finish	Dark-gray fine-texture housing, cyan-blue TPE grips, clear LCD window and matte white cosine diffuser
Joint Type	Keyed sensor-cable connectors with strain relief, removable diffuser cap and 1/4-inch threaded tripod insert
Customization	Available based on the intended application and operating environment.

Available Options

Low-light resolution rangeHigh-range sensor up to 200000 lxDetachable sensor extension cableMini tripod for sensor positioningUSB data-transfer interfaceProtective carrying case
