Ionizing Air Nozzle

The Ionizing Air Nozzle is a compact fixed-position device that combines balanced ion generation with clean compressed air for localized static neutralization and particle removal.

Focused ionized-air outlet neutralizes charge in narrow spaces and localized machine processes.
Compact cylindrical housing and pivoting foot simplify integration near the target.
Separate pneumatic and locking electrical connections keep air and power routing clear and serviceable.

Request a Quote Browse Products

Product Introduction

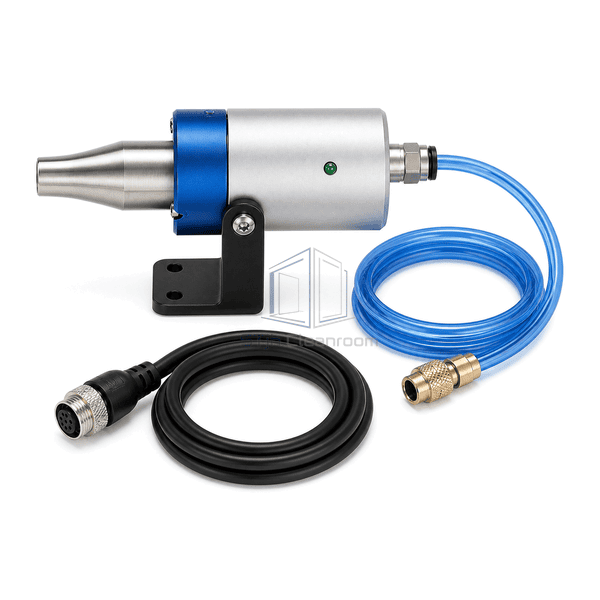

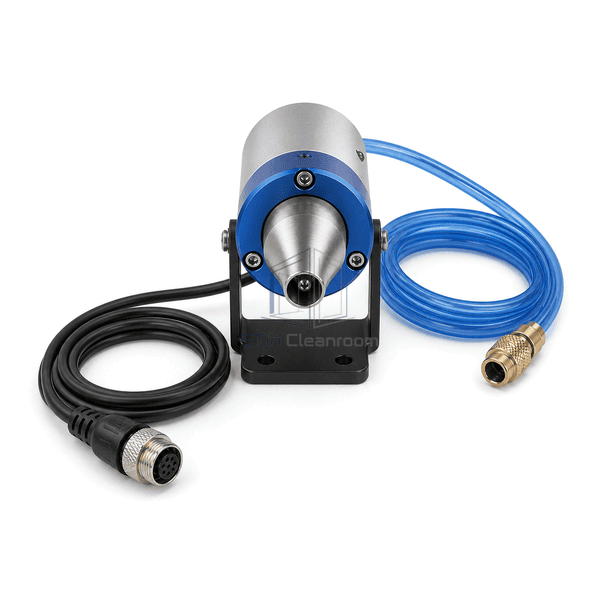

This nozzle integrates a silver-anodized cylindrical housing, blue front collar and tapered stainless outlet into a rigid point-of-use assembly. A recessed emitter at the outlet ionizes clean dry air or nitrogen before it reaches the target. The green status lamp confirms operation, while the pivot-mounted L-foot permits stable installation and aiming. A blue pneumatic tube and separate black electrical lead terminate in distinct fittings so plant air and controller power can be connected and serviced independently.

Key Features

Concentrated ionized airflow serves cavities, small fixtures and machine zones that broad blowers cannot reach.

Tapered stainless outlet provides a durable, cleanable flow path.

Compact round housing fits inside tools, guards and narrow process openings.

Green status lamp gives a direct visual operating indication.

Pivoting L-bracket supports controlled aim and two-hole machine mounting.

Separate air and electrical connectors prevent connection ambiguity during service.

Alternative outlet tips can adapt the pattern for focused, wide or extended reach.

Customer Product Concerns

Localized charge and contamination can persist inside small process spaces where a blower cannot be positioned and handheld cleaning is not repeatable.

A broad ionizer cannot reach a narrow cavity or fixture pocket.The tapered point-of-use outlet directs ionized air precisely toward the target.

Handheld blow-off introduces variation in distance and angle.The rigid pivot bracket locks the nozzle into a repeatable machine position.

Ordinary compressed air can add charge while removing particles.The recessed emitter neutralizes the delivered air stream before it reaches the surface.

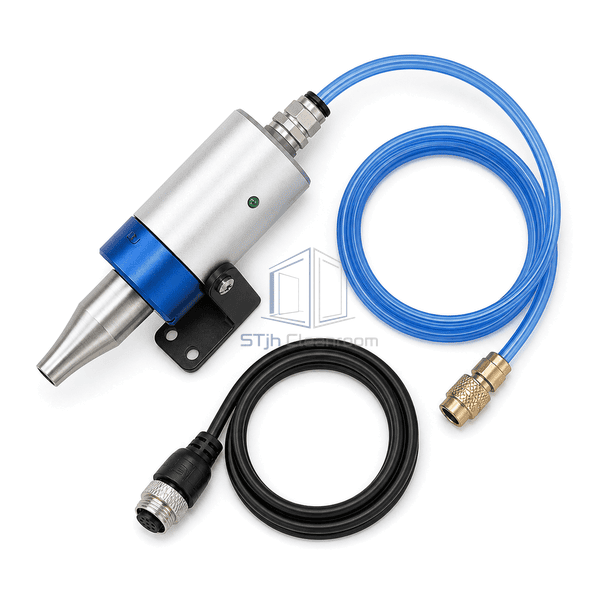

Air and electrical connections are confused during maintenance.Distinct blue pneumatic tubing and black locking electrical cable make each route immediately identifiable.

Operators cannot see whether a fixed nozzle is energized.The housing-mounted green lamp provides local status feedback.

Typical Applications

Component cleaning inside automated equipment.Electronics assembly and test fixtures.Optical, sensor and medical-device preparation.Packaging-film and label separation points.Small conveyor transfer and pick-and-place zones.Cleanroom glovebox and laminar-flow work areas.

Technical Parameters

The representative configuration below is designed for clean dry air or nitrogen supplied to a fixed point of use. Outlet pattern, bracket, tube size, electrical interface, controller voltage, flow sensing and filtration can be tailored to the installation.

Core Material	Silver-anodized aluminum housing with stainless-steel outlet, alloy emitter point and polymer line fittings
Panel Thickness	1.5–2.5 mm cylindrical housing-wall thickness
Effective Width	20–100 mm focused ionized-air coverage width at normal working distance
Maximum Length	Up to 180 mm overall nozzle-body length with standard outlet
Steel Facing Thickness	1.0–1.5 mm stainless-steel outlet-wall thickness
Core Density	2650–2750 kg/m³ aluminum-housing density
Thermal Conductivity	160–205 W/(m·K) for the aluminum housing alloy
Surface Finish	Clear silver and blue anodized housing with brushed-stainless outlet and matte black mounting foot

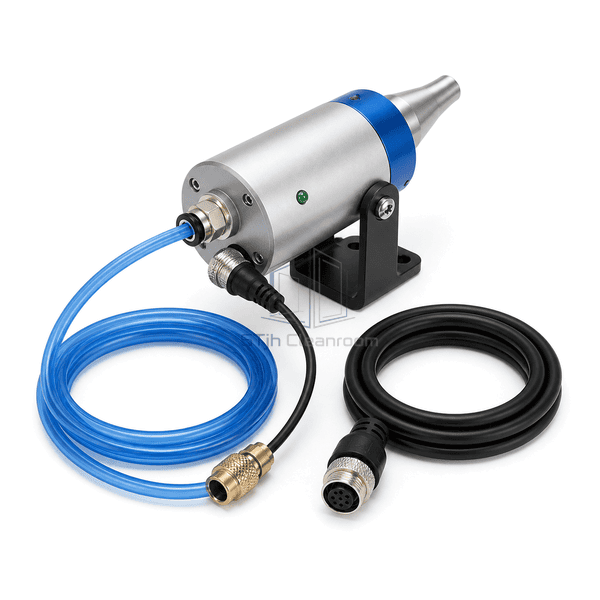

Joint Type	Pivot-mounted cylindrical nozzle with rear push-in air fitting and separate locking electrical connector
Customization	Available based on the intended application and operating environment.

Available Options

Standard, wide-angle, long-range, flexible or manifold outlet tip.Clean dry air or nitrogen service.Alternative pneumatic tube sizes and fittings.24 VDC or remote-controller power interface.Photoelectric sensor or external trigger input.In-line point-of-use filter.Fixed, pivoting or flexible mounting system.

Planning a Ionizing Air Nozzle specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
