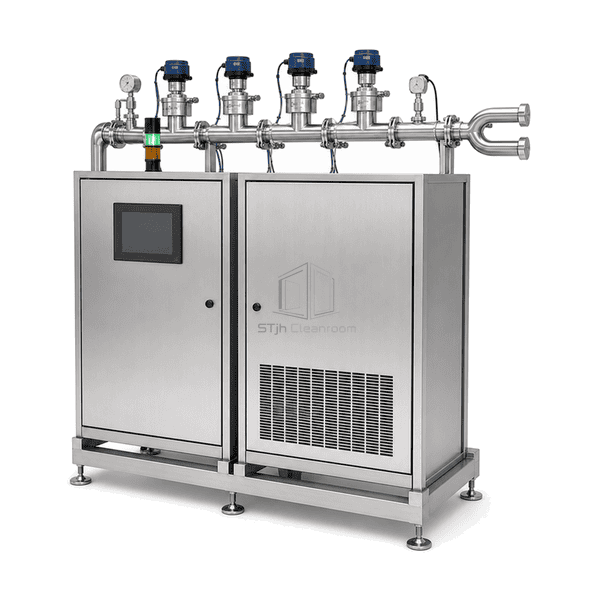

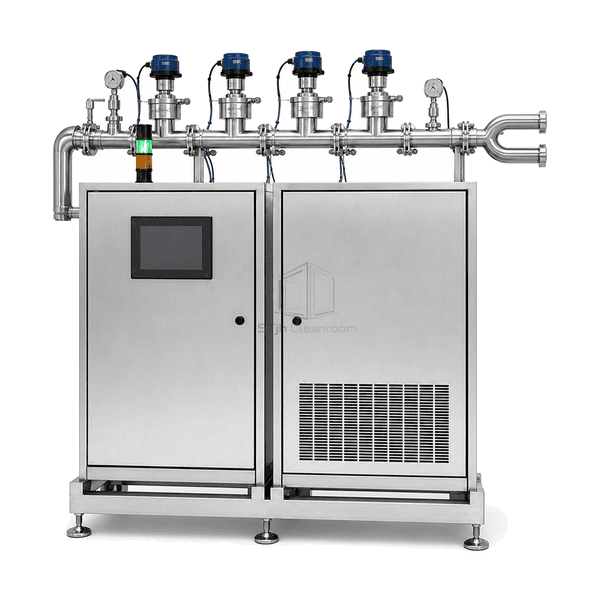

Complete fixed VHP generator skid in three-quarter view

Cleanroom Cleaning, Disinfection and Sterilization

Fixed VHP Decontamination System

Central fixed VHP decontamination system with dedicated distribution piping, room valves, catalytic aeration and BMS-integrated cycle control.

Central generator serves repeated room cycles
Dedicated pipework removes mobile setup
BMS interlocks coordinate rooms and HVAC

Request a Quote Browse Products

Product Introduction

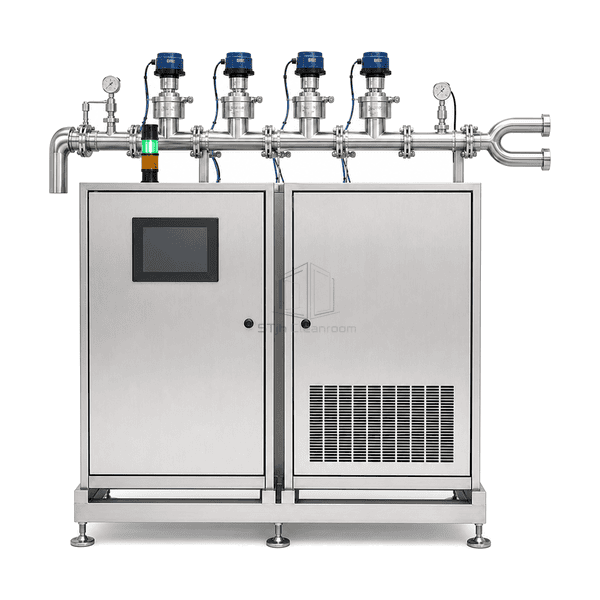

The Fixed VHP Decontamination System places the generator and catalyst equipment in an unclassified technical space and routes vapor through dedicated stainless piping or the building air system. Actuated room valves select the target zone, while local HMI and BMS handshakes coordinate HVAC isolation, injection, dwell and aeration. Permanent ceiling diffusers and sensors improve repeatability for facilities that decontaminate the same rooms frequently.

Key Features

Central equipment remains outside classified rooms.

Actuated valves select individual treatment zones.

Fixed diffusers avoid temporary hoses and cables.

BMS interlocks coordinate doors and ventilation.

Local HMI launches stored room-specific cycles.

Catalyst and HVAC routes support controlled aeration.

Customer Product Concerns

The system addresses repeated equipment transfer, manual hose setup, inconsistent room isolation and decentralized cycle control.

Repeated setup laborPermanent pipework and diffusers eliminate routine mobile positioning.

Wrong room routingActuated valves and control logic select the qualified zone.

HVAC coordination errorsBMS handshakes enforce the required ventilation state.

Variable recurring cyclesStored room recipes reuse defined phase settings.

Typical Applications

Sterile filling suitesBiopharmaceutical manufacturing coresMaterial airlocksContainment laboratoriesBiomedical holding areas

Technical Parameters

The specifications describe modular fixed installations located in a technical area and connected to one or more sealed target rooms.

Core Material	Stainless generator cabinet, distribution piping and room diffusers
Panel Thickness	1.5 mm technical-cabinet panel thickness
Effective Width	800 mm nominal generator skid width
Maximum Length	2400 mm nominal modular skid length
Steel Facing Thickness	1.5 mm nominal Type 304 stainless facing
Core Density	7900 kg/m³ nominal stainless-steel density
Thermal Conductivity	15 W/(m·K) nominal for stainless system structure
Surface Finish	Brushed stainless cabinets and electropolished distribution fittings

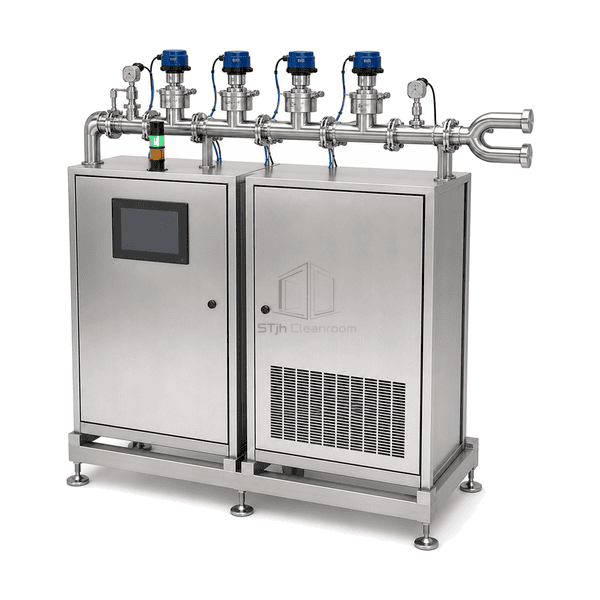

Joint Type	Sanitary-clamp distribution manifold with actuated room valves
Customization	Available based on the intended application and operating environment.

Available Options

Single-room or multi-zone manifoldDedicated piping or HVAC distributionCeiling or wall catalyst modulesLocal and central HMI stationsSecure data historian interface

Planning a Fixed VHP Decontamination System specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
