Cleanroom Cleaning, Disinfection and Sterilization

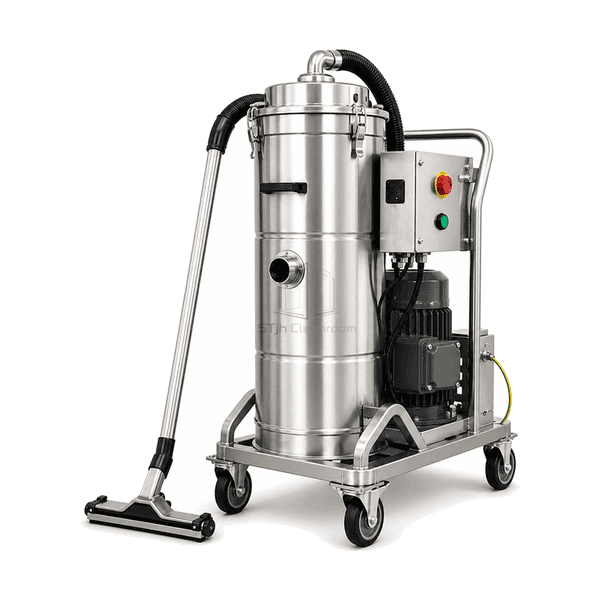

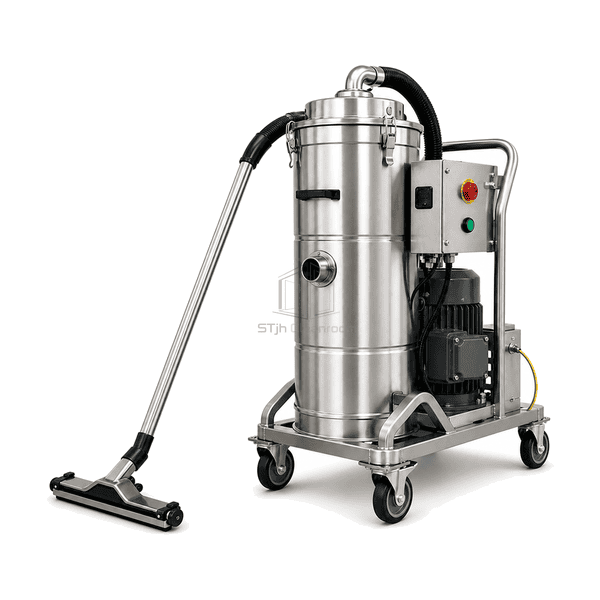

Explosion-Proof Cleanroom Vacuum
A certified-configuration cleanroom vacuum designed for controlled recovery of combustible dust in classified areas, with conductive construction, bonded tools and sealed high-efficiency filtration.
- Conductive bonded recovery path
- Classified-area drive configurations
- Sealed HEPA or ULPA filtration
Product Introduction
The Explosion-Proof Cleanroom Vacuum uses a stainless-steel recovery vessel, protected motor assembly and electrically continuous pickup path for housekeeping where a site hazard assessment identifies combustible dust or vapor risk. Conductive hose, metal wand, grounded chassis and dissipative wheels control static accumulation. A gasketed HEPA or ULPA final filter limits fine exhaust particles. Electrical or pneumatic drive, zone/division suitability and collected-material compatibility must be selected for the specific classified location.
Key Features
Protected drive configuration selectable for the classified location.
Stainless-steel detachable recovery container supports controlled disposal.
Sealed downstream HEPA or ULPA filtration.
Static-dissipative wheels, hose and accessory options.
Filter-presence and pressure-monitoring options support safe operation.
Customer Product Concerns
The design addresses ignition control, static dissipation, filter containment and safer collected-material handling.
Ignition riskThe drive, switches and conductive path are selected to match the documented area classification.

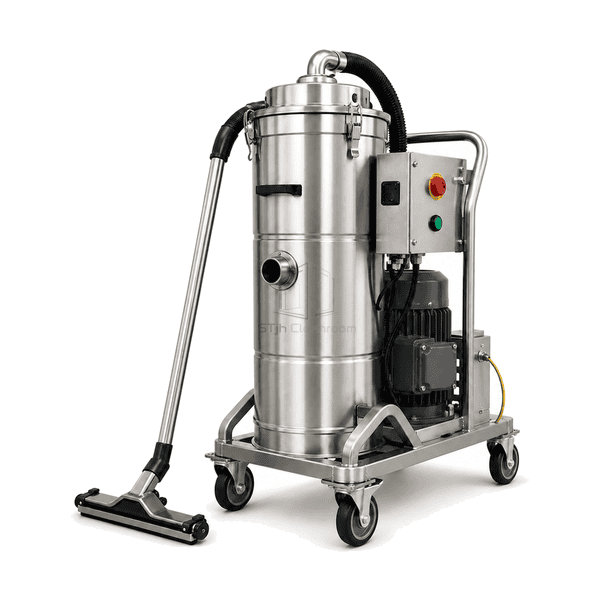

Static accumulationBonded metal parts, conductive hose and grounding connection maintain electrical continuity.
Filter leakageGasketed final filtration and optional aerosol leak testing support containment verification.
Unsafe disposalA detachable container and sealable conductive liner reduce handling and dust release.
Typical Applications
Classified pharmaceutical powder-processing roomsControlled chemical sampling and dispensing areasCombustible conductive-dust housekeepingBattery-material and specialty-powder productionClean manufacturing areas requiring hazard-rated recovery equipment
Technical Parameters
The specification describes a configurable hazardous-location vacuum whose final protection level must match the classified area.
| Core Material | Type 304 stainless steel with conductive components |
|---|---|
| Panel Thickness | 1.0–1.5 mm enclosure sheet thickness |
| Effective Width | 560 mm nominal mobile-frame width |
| Maximum Length | 900 mm nominal frame length, excluding hose |
| Steel Facing Thickness | 1.2 mm nominal vessel wall |
| Core Density | 7900 kg/m³ nominal stainless-steel density |
| Thermal Conductivity | 15 W/(m·K) nominal for stainless-steel body material |
| Surface Finish | Brushed stainless steel with conductive black trim |
| Joint Type | Bonded conductive couplings and gasketed clamp closures |
| Customization | Available based on the intended application and operating environment. |
Available Options
Electric or pneumatic driveH14 HEPA or U15 ULPA final filterZone/division-specific protected electrical packageConductive 38 mm or 50 mm accessory systemDetachable tank, liner and manual filter-cleaning options
Planning a Explosion-Proof Cleanroom Vacuum specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
