Corrosion-Resistant Exhaust Fan

Base-mounted fiberglass-reinforced-plastic centrifugal exhaust fan with a backward-curved wheel, corrosion-resistant scroll housing and flanged duct interfaces for compatible chemical and process exhaust.

FRP housing and wheel for compatible corrosive airstreams
Backward-curved single-width centrifugal fan geometry
Direct or belt-drive arrangements for the required duty point

Request a Quote Browse Products

Product Introduction

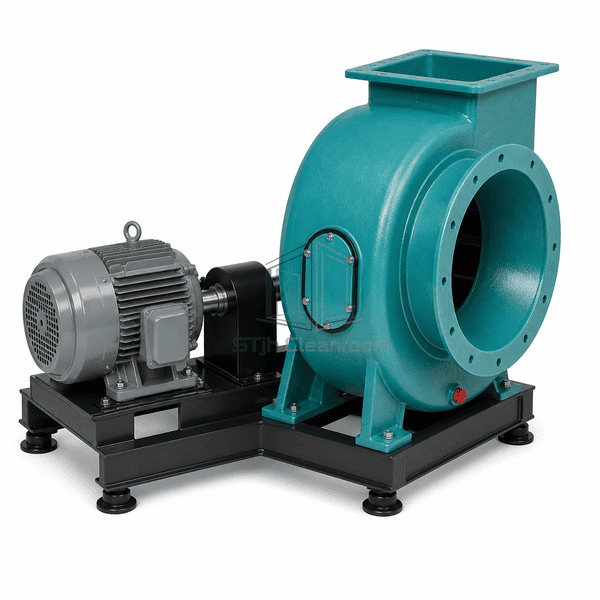

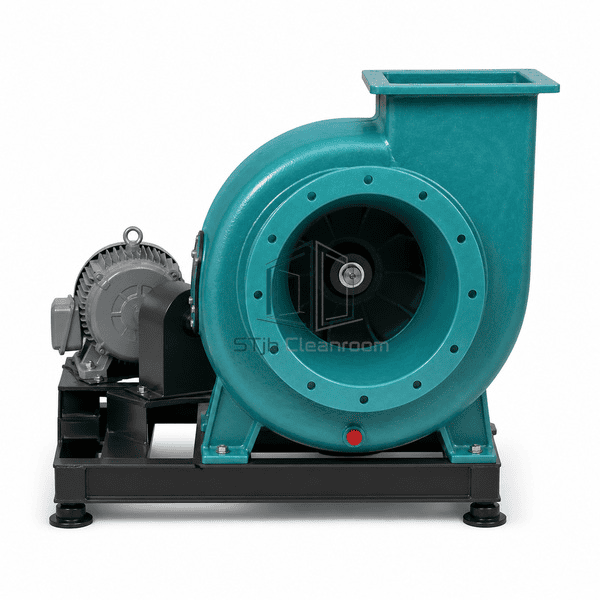

The Corrosion-Resistant Exhaust Fan is a single-width centrifugal blower for moving compatible corrosive process air through laboratory, cleanroom support and industrial pollution-control ductwork. The displayed direct-drive arrangement uses a teal vinyl-ester FRP scroll housing, matching backward-curved wheel, round flanged inlet, rectangular flanged discharge, external gray motor, flexible coupling and one dark coated-steel base. A smooth protective veil and gel-coated exterior limit fiber exposure and help the laminate withstand outdoor and chemical-service conditions. Fan size, resin system, wheel class, motor, rotation, discharge orientation, shaft seal and drain are selected from the actual gas chemistry, temperature, airflow and system resistance.

Key Features

Controlled-laminate FRP housing and wheel place corrosion-resistant material directly at the process airstream

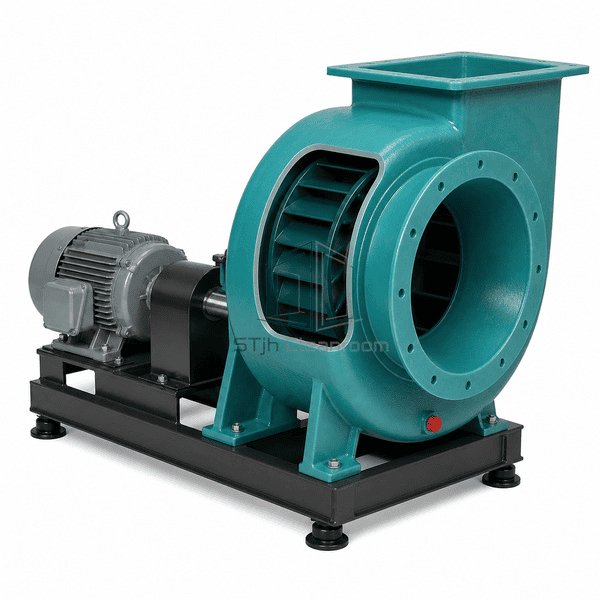

A backward-curved centrifugal wheel supports stable operation across common process-exhaust duty points

The single-width, single-inlet layout provides clear access to the inlet, shaft and motor

A molded scroll and smooth inlet cone reduce abrupt internal transitions that can increase loss and deposit buildup

Flanged inlet and discharge connections simplify integration with compatible FRP, PVC or lined ductwork

External bearings, coupling and motor remain outside the contaminated airstream for service access

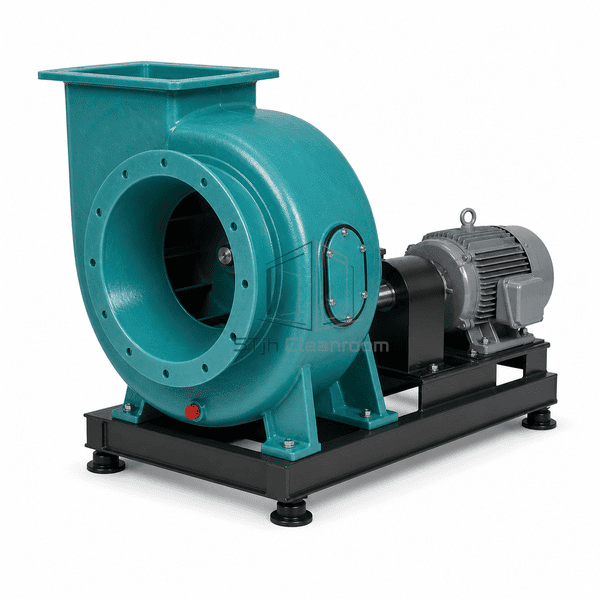

A gasketed access door and low-point drain can be included for inspection and controlled condensate removal

Direct-drive construction reduces belt components, while belt drive remains available when speed selection requires it

Alternative resin and corrosion-barrier layers can be selected for the expected chemical and temperature exposure

Clockwise or counterclockwise rotation and multiple discharge positions support practical duct layouts

Customer Product Concerns

Fan reliability depends on more than choosing an FRP housing. Resin compatibility, condensate, solids, wheel speed, duct loads and the real operating point all affect service life and safe operation.

A resin that handles one acid may soften, crack or blister in another vapor mixture or at higher temperatureDefine every normal and upset constituent, concentration, moisture condition and temperature before selecting the resin and corrosion barrier.

Condensate can collect in the scroll, unbalance the wheel or attack fasteners and shaft sealsSlope connected ductwork appropriately and provide a compatible low-point drain and seal arrangement where condensation is credible.

Selecting a fan by free-air volume alone can miss the required airflow after duct, hood and treatment losses are addedCalculate the complete system resistance and select the fan at the required airflow, pressure, speed and density condition.

Rigid duct or misaligned foundations can transfer loads into the FRP inlet and dischargeUse independent duct supports, compatible flexible connectors and a level base so external loads do not distort the laminate housing.

Deposits on a backward-curved wheel can increase vibration before airflow loss becomes obviousProvide inspection access and monitor vibration, current and pressure so fouling can be addressed before it damages the wheel or bearings.

A corrosion-resistant fan is not automatically suitable for a flammable or spark-sensitive streamEvaluate ignition hazards separately and select grounding, conductive liners, drive components and operating limits appropriate to the actual risk.

Typical Applications

Acid and alkali laboratory exhaust systems with compatible vapor chemistryWet scrubber induced-draft and discharge serviceChemical-process ventilation and tank-vent collectionSemiconductor, battery and electronics facility exhaust supportWastewater odor-control and corrosive-air ventilationPlating, etching and surface-treatment exhaust systems

Technical Parameters

The displayed product is a direct-drive size-22-class single-width FRP centrifugal blower with one teal scroll housing, one backward-curved FRP wheel, one 559 mm-class round inlet, one rectangular upblast discharge, one external gray TEFC motor, one guarded flexible coupling and one coated-steel base. The fixed table uses panel terms; Panel Thickness describes the representative molded housing laminate and Steel Facing Thickness records that the process casing has no steel skin. Published BCSW-FRP families span much wider airflow, pressure and size ranges; the final fan is selected at its actual duty point.

Core Material	Vinyl-ester fiberglass-reinforced-plastic scroll housing and backward-curved wheel with a corrosion veil, external metal shaft and bearings, TEFC motor and coated-steel base
Panel Thickness	6-10 mm representative molded FRP housing laminate for the displayed mid-size blower
Effective Width	Approximately 559 mm nominal inlet and wheel size for the selected size-22-class display basis
Maximum Length	Approximately 1700 mm overall base length for the displayed direct-drive arrangement
Steel Facing Thickness	0 mm steel facing on the process housing; the external motor rails and base are separate coated-steel components
Core Density	Approximately 1450-1550 kg/m³ representative density range for a polyester or vinyl-ester FRP laminate
Thermal Conductivity	Approximately 0.22 W/(m·K) for a representative glass-reinforced polyester laminate
Surface Finish	Smooth teal chemical-resistant exterior gel coat, matching FRP inlet and discharge, dark base and neutral-gray motor and guards
Joint Type	Molded and bolted scroll casing with gasketed access, round flanged inlet, rectangular flanged discharge and external coupled drive
Customization	Available based on the intended application and operating environment.

Available Options

Direct-drive or belt-drive arrangementsClockwise or counterclockwise rotationMultiple discharge orientationsAlternative vinyl-ester or specialty resin systemsAdditional corrosion-barrier and conductive-liner constructionsGasketed inspection door and compatible low-point drainShaft seals selected for dry, wet or condensable serviceFlexible inlet and discharge connectors with independent duct supportsWeather cover, vibration isolators and outdoor motor packagesMotor power, speed and electrical configuration selected for the duty point
