Cleanroom Furniture and Stainless Steel Products

Cleanroom Wire Shelving

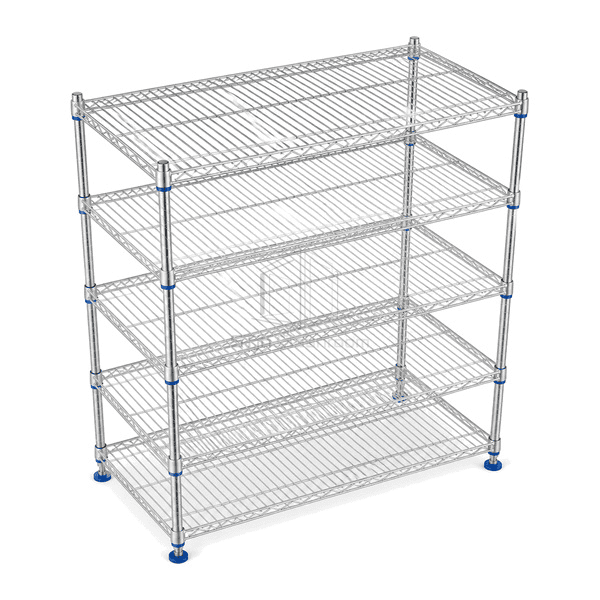

A five-tier stationary rack made from electropolished Type 304 stainless wire shelves and posts, providing open airflow, visible undersides and tool-free 25 mm shelf adjustment.

Five open-wire shelf levels
Electropolished Type 304 stainless
25 mm adjustment increments
Open airflow on every level

Request a Quote Browse Products

Product Introduction

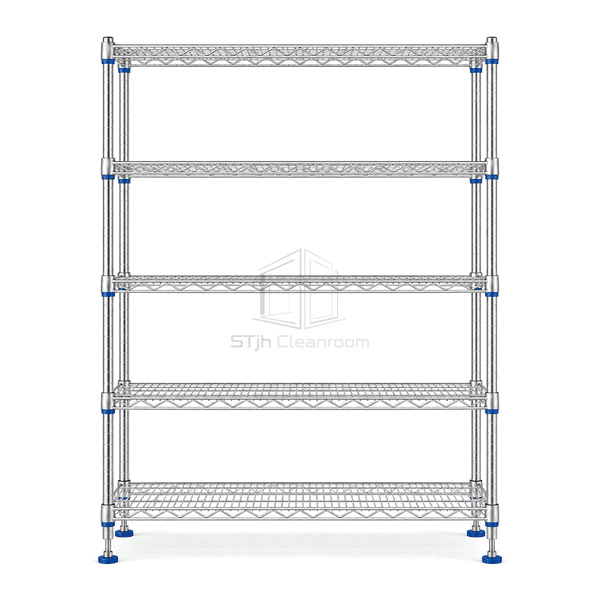

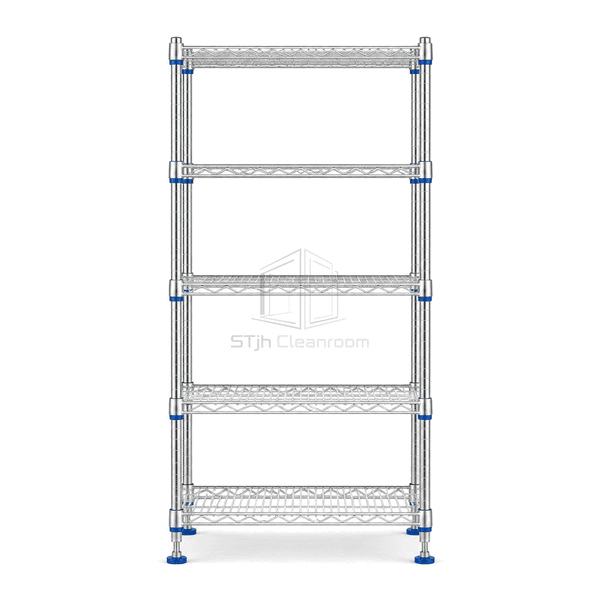

Cleanroom wire shelving uses five electropolished Type 304 stainless open-grid shelves supported by four grooved stainless posts. Each shelf corner contains a tapered sleeve housing that locks around a two-piece split sleeve, producing a rigid connection without cross-bracing. The open wire pattern allows supply air to pass through stored levels and exposes containers, shelf undersides and the floor zone for inspection. Shelves can be repositioned at 25 mm post intervals, while threaded leveling bolts correct local floor variation. The all-stainless configuration avoids plated surfaces in areas subject to repeated wipe-down or damp cleaning.

Key Features

The open-grid pattern leaves a direct air path through all five storage levels and minimizes broad horizontal dust ledges.

Electropolishing smooths the exposed Type 304 wire surface and removes the need for a flaking decorative coating.

Two-piece split sleeves and tapered corner housings make the shelves adjustable without drilling or horizontal braces.

Numbered 25 mm post grooves provide a repeatable reference when all four corners of a shelf are repositioned.

Customer Product Concerns

Open cleanroom storage should preserve room airflow, reveal hidden surfaces and remain adjustable without coated components that can deteriorate during cleaning.

Broad solid shelves create stagnant zones beneath closely spaced storage levels.The five open-wire decks allow vertical room airflow to continue through the rack.

Shelf undersides and trapped debris are difficult to see during line clearance.The grid construction leaves stored loads, undersides and the floor visible from multiple directions.

Painted or chrome-plated racks can expose damaged coating after repeated wet cleaning.Electropolished Type 304 wire and posts provide a uniform stainless surface with no applied color layer.

Reconfiguring a welded rack for taller containers requires a replacement frame.Tapered corner housings release from split sleeves so each shelf can be reset at 25 mm intervals.

Typical Applications

Cleanroom consumable storageSterile pack stagingLaboratory glassware holdingGowning-room supply organizationInspection-area tote storage

Technical Parameters

Typical configurable specifications for a five-tier electropolished stainless wire shelving unit are listed below.

Core Material	Five Type 304 stainless open-wire shelves with grooved stainless posts, tapered corner housings, split sleeves and threaded leveling bolts
Panel Thickness	3.0 mm shelf grid wire with 6.0 mm reinforced perimeter rods
Effective Width	1220 mm overall shelf width
Maximum Length	1830 mm maximum overall post height
Steel Facing Thickness	1.5 mm wall thickness for Type 304 stainless tubular posts
Core Density	7900–8000 kg/m³ for Type 304 stainless steel
Thermal Conductivity	14–17 W/(m·K) for Type 304 stainless steel
Surface Finish	Bright electropolished Type 304 stainless wire shelves, posts and corner housings
Joint Type	Tapered shelf corner housings locked onto two-piece split sleeves at 25 mm grooved-post intervals
Customization	Available based on the intended application and operating environment.

Available Options

Three to seven shelf levelsRod-and-tab shelf dividersStainless ledges on selected sidesMobile caster conversion kit
