Cleanroom Utility Service Column

A floor-to-ceiling vertical raceway that consolidates power, data, controls and optional process services at one cleanroom location.

Prewired Vertical Raceway
Mixed Utility Integration
Removable Service Covers
Flush Point-of-Use Modules

Request a Quote Browse Products

Product Introduction

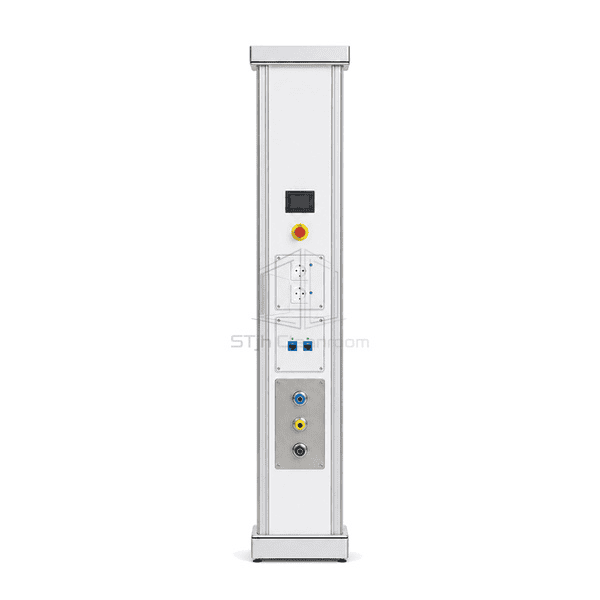

The utility column uses an extruded aluminum or stainless vertical shell with separated internal ducts for electrical, data and optional stainless process tubing. Flush outlet plates, controls and quick connections are positioned at working height, while the upper section terminates above the ceiling or into a service void. Removable covers provide maintenance access from the technical side or selected face.

Key Features

One vertical post organizes several services without scattered wall penetrations.

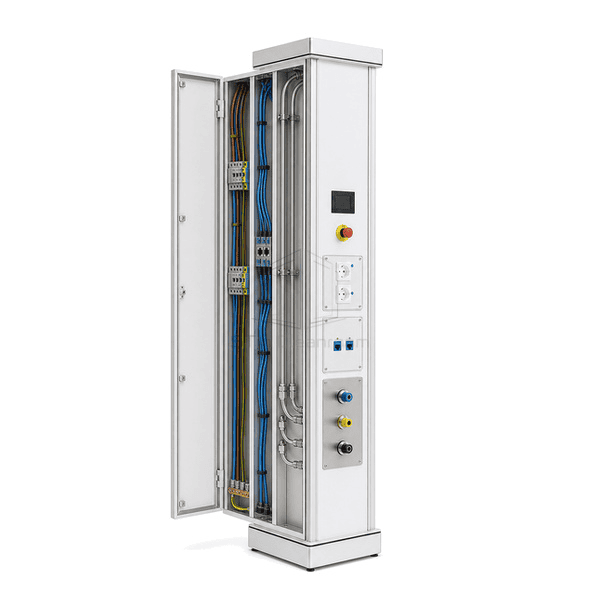

Internal barriers separate electrical wiring from data and process tubing.

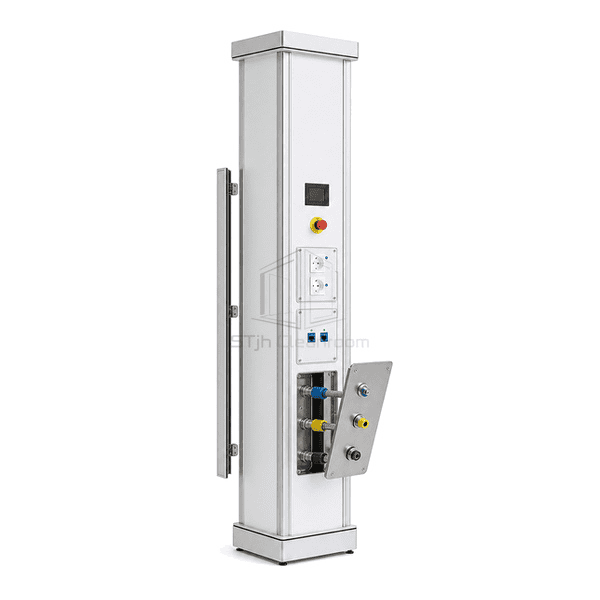

Flush modular faceplates position connections at the operator's point of use.

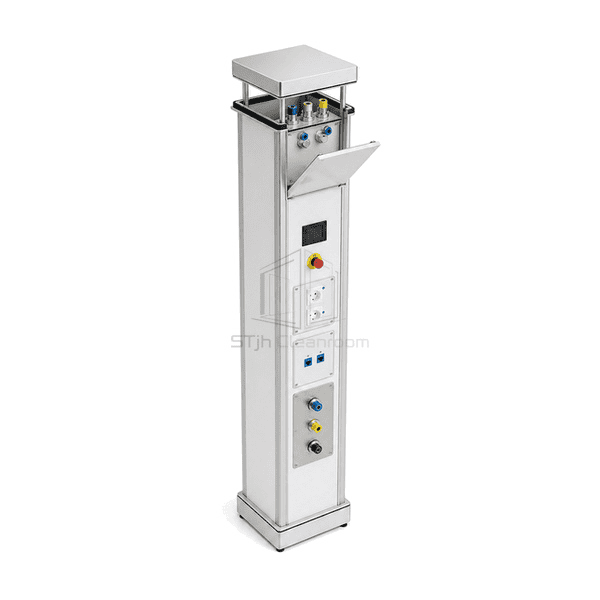

Top termination transfers services directly into the ceiling void.

Removable retained covers allow changes without dismantling adjacent wall panels.

Customer Product Concerns

Independent service drops multiply penetrations and maintenance points around a workstation, especially when the layout changes.

Power, data and gas arrive through separate untidy drops.A divided column consolidates routes inside one cleanable vertical body.

Mixed utilities cross inside an unsegregated chase.Dedicated internal compartments maintain physical separation.

Equipment relocation requires opening multiple wall panels.Modular front plates and accessible covers allow connection positions to be revised.

A service post leaves open gaps at the ceiling and floor.Gasketed top and bottom trims close both boundary interfaces.

Typical Applications

Laboratory workstationsClean manufacturing islandsProcess equipment utilitiesFlexible cleanroom layouts

Technical Parameters

Typical configurable construction ranges for a cleanroom utility service column are listed below.

Core Material	Powder-coated aluminum or SUS304/SUS316L column with segregated ducts, electrical/data modules and optional stainless tubing
Panel Thickness	2.0-4.0 mm column shell and removable cover thickness
Effective Width	150-400 mm column face width
Maximum Length	Up to 4500 mm floor-to-ceiling column height
Steel Facing Thickness	1.5-3.0 mm stainless service plates and covers where selected
Core Density	Approximately 2700 kg/m³ for an aluminum structural raceway
Thermal Conductivity	160-205 W/(m·K) for the aluminum column body
Surface Finish	White powder coat or fine-brushed stainless with true-color outlet, button and data modules
Joint Type	Modular divided raceway with retained access covers and gasketed floor/ceiling termination trims
Customization	Available based on the intended application and operating environment.

Available Options

Wall-adjacent or freestanding columnPower, data, gas, air and vacuum modulesFront or technical-side service accessPrewired and prepiped factory assembly
