Cleanroom Drainage, Hygiene and Safety Equipment
Cleanroom Smoke Detector
A low-profile optical detector with a cleanable housing and sealed ceiling interface for controlled environments.
- Low-Profile Cleanable Housing
- Addressable or Conventional Base
- Selectable Sensitivity
- Remote Indicator Option
Product Introduction
The cleanroom smoke detector encloses an optical sensing chamber in a smooth low-profile housing fixed to a sealed mounting base. Addressable electronics can report device identity, contamination level and alarm status to the fire panel, while selectable sensitivity helps balance early response against nuisance sources. A removable detector head supports scheduled service without disturbing the ceiling cable entry.
Key Features
Smooth exposed surfaces support routine wipe-down.
A twist-lock head separates from the fixed wired base for service.
Addressable versions report device and maintenance status.
Customer Product Concerns
High airflow and strict cleaning requirements demand a detector that remains serviceable without creating an untidy ceiling penetration.
Air movement can dilute smoke at a passive detector.Detector spacing and sensitivity are coordinated with the room airflow pattern and fire design.
Dust accumulation raises nuisance-alarm risk.Chamber compensation and maintenance reporting identify gradual contamination.
Ceiling service can disturb clean finishes.The detector head removes from a permanently sealed wired base.
Operators need to locate an alarmed device quickly.Addressable identity and an optional remote LED provide clear location status.
Typical Applications
Pharmaceutical cleanroomsBiotechnology suitesMedical-device productionControlled laboratories
Technical Parameters
Typical detector-housing construction values are listed below; final sensing and listing requirements follow the fire-alarm design.
| Core Material | Flame-retardant white engineering polymer with stainless mounting plate |
|---|---|
| Panel Thickness | 2.0-3.0 mm molded housing wall |
| Effective Width | 90-130 mm detector diameter |
| Maximum Length | Up to 70 mm installed depth |
| Steel Facing Thickness | 0.8-1.2 mm internal stainless mounting plate |
| Core Density | 1200-1450 kg/m³ for polymer housing |
| Thermal Conductivity | 0.18-0.30 W/(m·K) for polymer housing |
| Surface Finish | Smooth matte white cleanable housing |

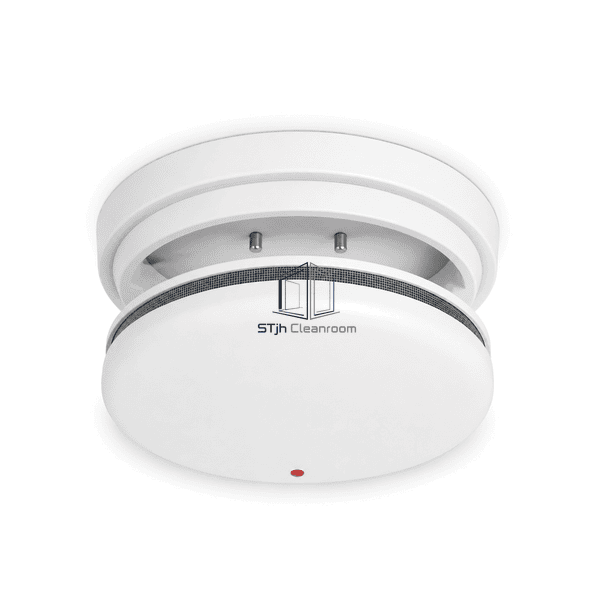

| Joint Type | Twist-lock detector head on gasketed wired mounting base |
| Customization | Available based on the intended application and operating environment. |
Available Options
Addressable or conventional baseRemote indicatorIsolator baseProtective dust cover
Planning a Cleanroom Smoke Detector specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
