Fifteen-compartment stainless cleanroom shoe storage cabinet

Cleanroom Furniture and Stainless Steel Products

Cleanroom Shoe Cabinet

A freestanding Type 304L stainless shoe cabinet with 15 open, individually divided compartments for visible and orderly gowning-room footwear storage.

Fifteen open shoe compartments
278 mm clear compartment width
Drainable perforated shelf pans
Sloped top and adjustable feet

Request a Quote Browse Products

Product Introduction

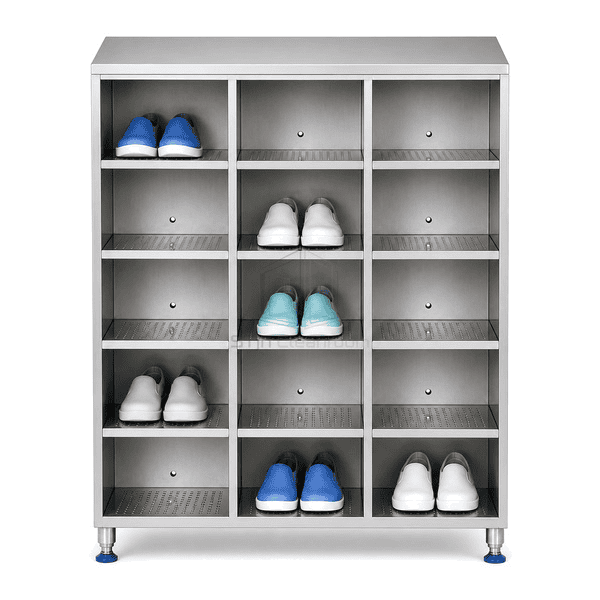

The cleanroom shoe cabinet uses a three-column by five-row arrangement to store 15 pairs of footwear without stacking. Each 278 mm-wide compartment is formed from folded Type 304L stainless dividers with a perforated rear drain path, allowing wiped surfaces to shed residual liquid instead of retaining it in a blind corner. The open front keeps occupancy immediately visible during gowning, and the brushed enclosure sits on four stainless adjustable feet. A pitched upper panel removes the flat top commonly used as an uncontrolled temporary shelf.

Key Features

Fifteen equally sized open compartments keep shoes paired and visibly assigned without doors or hidden cavities.

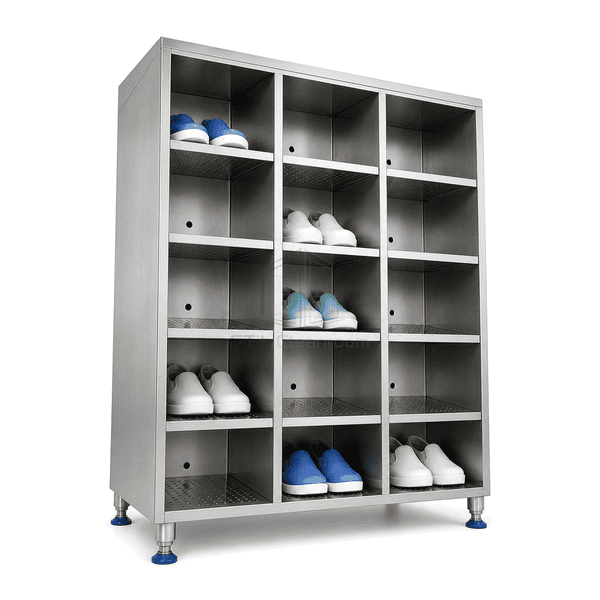

Folded shelf pans guide rinse or wipe-down liquid toward rear drainage openings rather than the front aisle.

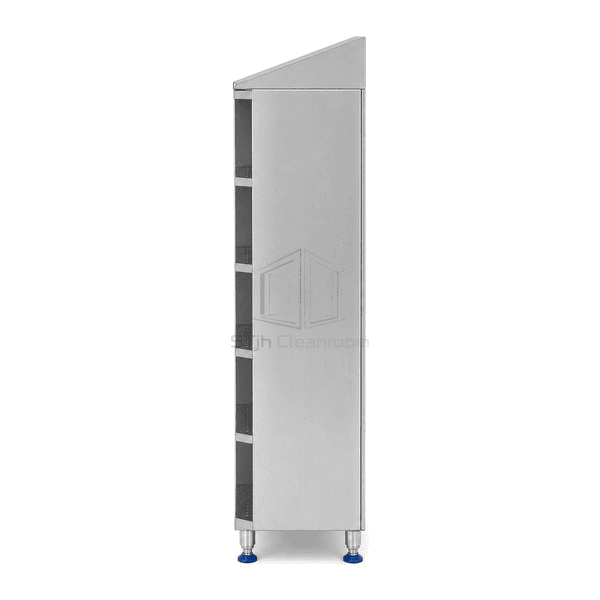

The shallow 350 mm cabinet depth stores footwear without projecting deeply into a gowning-room circulation path.

A continuously welded outer frame and stainless leveling feet keep the unit rigid on uneven floors.

Customer Product Concerns

Footwear storage must keep pairs separate and visible without creating wet blind corners or a bulky obstruction near the gowning line.

Shoes stacked on a common shelf are difficult to pair and frequently contact adjacent footwear.Fifteen separate cells maintain one defined location for each pair and prevent vertical stacking.

Deep closed cupboards hide empty positions and slow down gowning turnover.The open 350 mm-deep layout exposes every compartment at a glance from the aisle.

Wipe-down moisture pools against the rear fold of solid shelf pans.Perforated drain openings and folded falls guide residual liquid away from the storage surface.

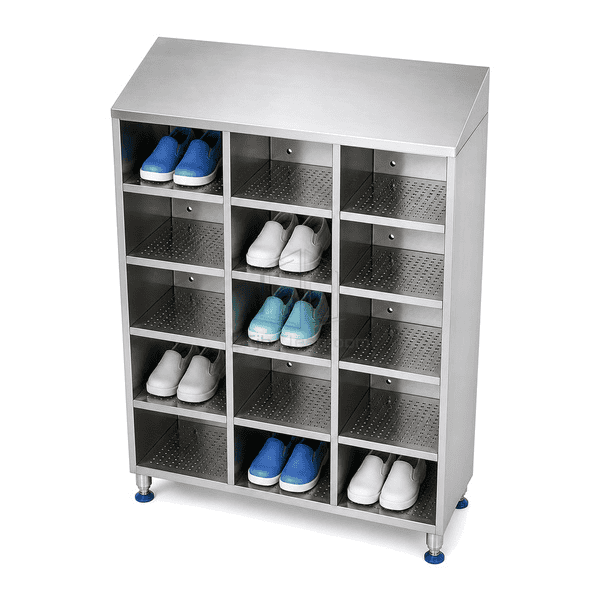

Flat cabinet tops become uncontrolled storage ledges for shoe covers and cartons.The pitched upper panel prevents loose items from remaining on the cabinet roof.

Typical Applications

Cleanroom entry shoe-change stationsPharmaceutical gowning roomsHospital sterile-support changing areasFood and beverage hygiene lobbiesLaboratory PPE transition zones

Technical Parameters

Typical configurable specifications for a 15-pair stainless cleanroom shoe cabinet are listed below.

Core Material	Type 304L stainless steel welded cabinet with fifteen open shoe compartments and rear drainage openings
Panel Thickness	1.2–1.5 mm outer panels, dividers and compartment shelf pans
Effective Width	880 mm overall width with approximately 278 mm clear compartment width
Maximum Length	1708 mm maximum height at the rear edge of the sloped top
Steel Facing Thickness	1.2–1.5 mm Type 304L stainless outer shell and internal cell panels
Core Density	7900–8000 kg/m³ for Type 304L stainless steel
Thermal Conductivity	14–16 W/(m·K) for Type 304L stainless steel
Surface Finish	Brushed dull-polish stainless with deburred compartment edges and blue non-marking leveling pads
Joint Type	Continuously welded enclosure with folded and seam-welded compartment dividers, rear drain openings and threaded leveling feet
Customization	Available based on the intended application and operating environment.

Available Options

10-, 20-, 25- or 30-pair compartment layoutsNumbered blue compartment labelsPerforated hinged front doorsType 316L electropolished construction
