Cleanroom Furniture and Stainless Steel Products

Cleanroom Printer Enclosure

A compact gasketed 316L stainless housing that contains a desktop or label printer while preserving quick access to printouts and consumables.

Gasketed 316L stainless housing
Clear printer viewing window
Pull-out internal printer tray
Separate print retrieval hatch

Request a Quote Browse Products

Product Introduction

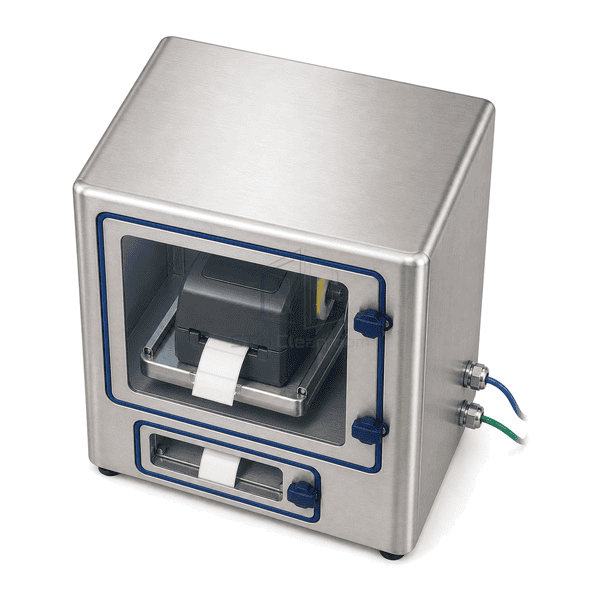

The cleanroom printer enclosure places a commercial label or desktop printer inside a smooth 316L stainless cabinet. A clear front window lets operators check status without opening the main door, and a smaller output hatch limits the opening needed to collect printed material. The printer sits on a pull-out stainless tray so paper rolls, labels and cartridges can be replaced from the front. Rear cable glands separate power and data entry points, while a compact air-circulation module can be added when the printer produces significant heat during long print runs.

Key Features

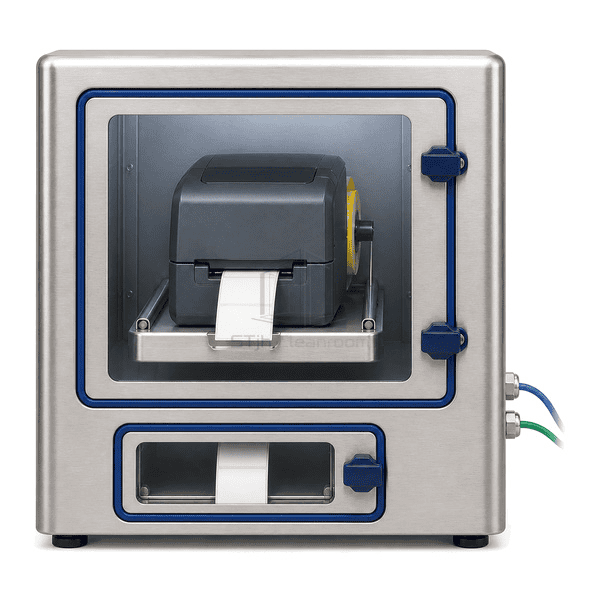

A clear polycarbonate window provides a direct view of printer status, media level and fault indicators through the closed door.

The dedicated output hatch allows printed labels or documents to be removed without exposing the complete printer bay.

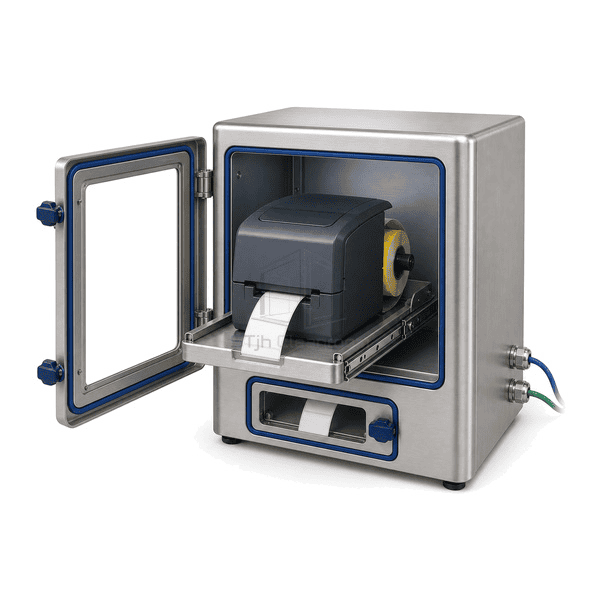

A pull-out equipment tray brings the printer forward for media changes and maintenance without lifting it through the enclosure opening.

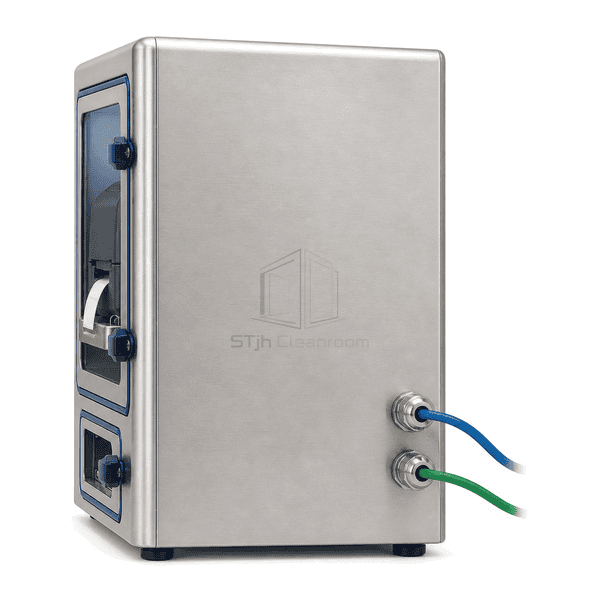

Separated rear cable glands keep power and communication entries restrained and prevent loose leads from passing through the door seal.

Customer Product Concerns

Desktop printers generate particles, require frequent media access and contain vents and cavities that are difficult to clean in controlled areas.

The printer's paper path, fan openings and internal mechanisms are directly exposed to the surrounding controlled area.The gasketed stainless cabinet creates one smooth external boundary around the complete printer.

Opening a large service door for every printout repeatedly exposes the equipment bay.A separate small output hatch provides routine document retrieval while the main door remains closed.

Replacing paper or labels inside a fixed enclosure requires awkward lifting and poor access to the printer rear.The stainless pull-out tray presents the complete printer for loading and cable inspection.

Unrestrained power and data cables compromise the door seal and create snag points behind the enclosure.Dedicated rear glands retain and separate each connection before the leads enter the printer bay.

Typical Applications

Cleanroom label printingPharmaceutical production documentationMedical-device work-order printingControlled laboratory sample labelingHygienic packaging-line print stations

Technical Parameters

Typical configurable specifications for a stainless cleanroom printer enclosure are listed below.

Core Material	316L stainless steel enclosure with a clear polycarbonate viewing window and blue silicone or EPDM perimeter seals
Panel Thickness	1.2–1.5 mm enclosure wall panels
Effective Width	380–550 mm usable printer-bay width
Maximum Length	650 mm maximum enclosure depth
Steel Facing Thickness	1.2–1.5 mm 316L stainless outer shell and access panels
Core Density	7950–8050 kg/m³ for the 316L stainless enclosure
Thermal Conductivity	14–16 W/(m·K) for 316L stainless steel
Surface Finish	Brushed 316L stainless exterior with clear polycarbonate glazing and blue sanitary seals
Joint Type	Gasket-compressed front door with concealed hinges, independent output hatch, pull-out tray and sealed rear cable glands
Customization	Available based on the intended application and operating environment.

Available Options

Internal air-recirculation fanFiltered exhaust module for particle-producing printersWall, worktop or freestanding support mountPrinter-specific media opening and cable-gland layout
