Cleanroom Furniture and Stainless Steel Products
Cleanroom Material Cart

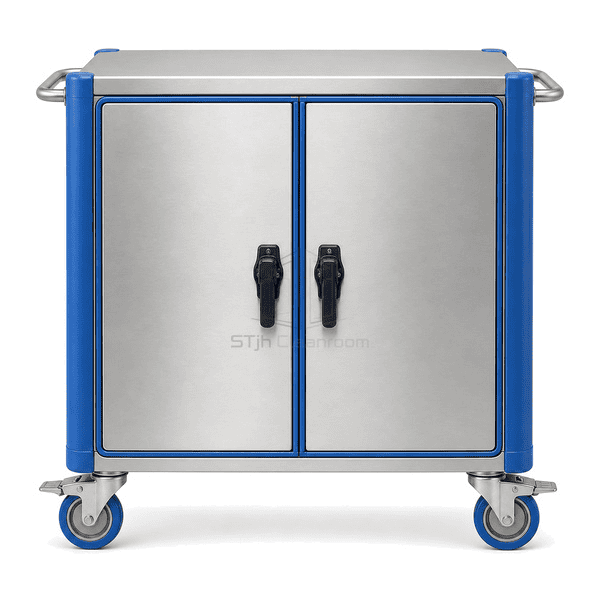

An enclosed Type 304 stainless transfer cart with gasketed double doors, adjustable internal shelves, positive latches, blue corner bumpers and four locking polyurethane casters.
- Fully enclosed load compartment
- Compression-gasketed double doors
- Height-adjustable internal shelves
- Blue perimeter impact protection
Product Introduction

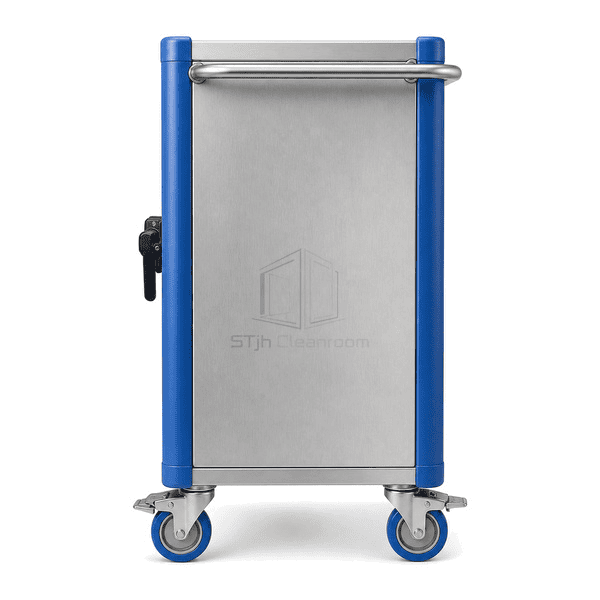

The cleanroom material cart shields wrapped components and sealed production supplies while they move through controlled corridors. Its fully welded Type 304 case has a smooth interior with three height-adjustable solid shelves and removable blue retaining rails. Two front doors close against a continuous blue silicone gasket using over-center compression latches, reducing direct exposure to corridor dust without presenting the cart as an airtight chamber. Blue corner bumpers protect wall finishes, while a rear tubular handle and four 150 mm polyurethane casters control a loaded cart.
Key Features
Continuous blue silicone door seals are compressed by two positive latches and remain visible for inspection.

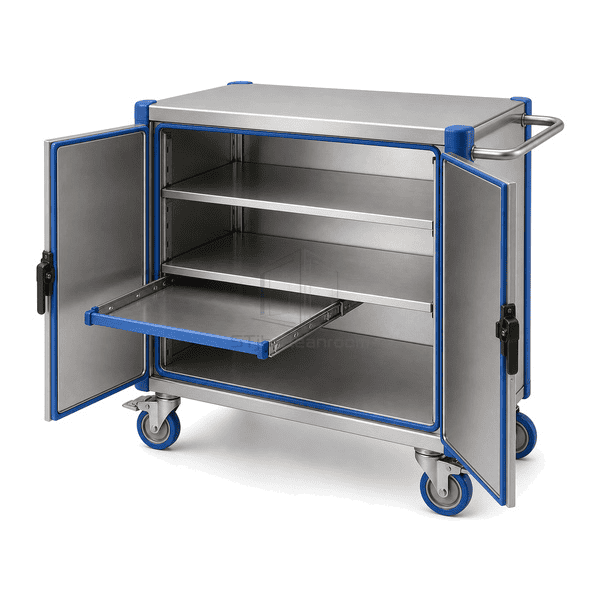

Three solid shelves relocate on enclosed stainless support tracks to suit cartons of different heights.

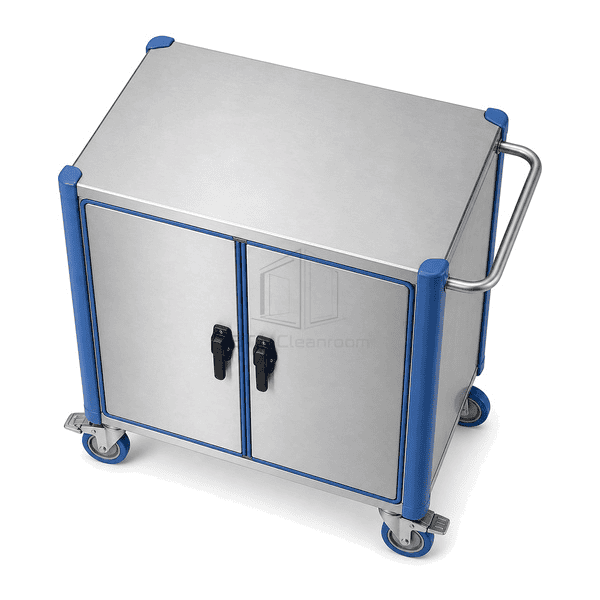

Full-height blue corner bumpers absorb low-speed contact before the stainless case reaches a wall panel.
Customer Product Concerns
Sensitive materials can collect corridor fallout or shift inside a cart unless the load compartment is enclosed, the doors close consistently and shelves restrain mixed carton sizes.
Open carts expose wrapped stock to traffic-generated particles between controlled rooms.A fully enclosed welded case surrounds the load throughout movement.
Light doors rebound open when the cart crosses floor joints.Over-center latches compress the continuous gasket and positively retain both doors.
Fixed shelf spacing wastes space or forces unlike cartons onto one level.Enclosed support tracks allow all three shelves to be repositioned without protruding hardware.
A heavy cart damages wall panels when maneuvering around an airlock corner.Blue perimeter bumpers intercept low-height and vertical corner contact.
Typical Applications
Wrapped component transferSterile-support material stagingClean packaging supply movementMedical-device kit transportControlled corridor replenishment
Technical Parameters
Typical configurable specifications for an enclosed stainless cleanroom material cart are listed below.
| Core Material | Type 304 stainless welded enclosure, doors and shelves with blue silicone gaskets and polyurethane bumpers |
|---|---|
| Panel Thickness | 1.2 mm double-folded enclosure and door panels |
| Effective Width | 900 mm clear internal storage width |
| Maximum Length | 1150 mm maximum overall cart length including rear handle and bumpers |
| Steel Facing Thickness | 1.2 mm Type 304 external skin; 1.0 mm adjustable shelf sheet |
| Core Density | 7900–8000 kg/m³ for Type 304 stainless steel |
| Thermal Conductivity | 14–17 W/(m·K) for Type 304 stainless steel |
| Surface Finish | Satin-brushed stainless interior and exterior with blue silicone seals, rails and corner bumpers |
| Joint Type | Fully welded sealed case with compression-gasketed double doors, adjustable shelf tracks and bolted caster plates |
| Customization | Available based on the intended application and operating environment. |
Available Options
Type 316L stainless bodyPull-out wire shelvesTamper-evident door haspConductive caster package
Planning a Cleanroom Material Cart specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
