Cleanroom Furniture and Stainless Steel Products
Cleanroom Inspection Table
A cleanable visual-inspection workstation with controlled task lighting, low-glare surfaces and dedicated sample positioning.
- Adjustable high-CRI task light
- Low-glare inspection surface
- Magnifier and camera mounts
- Defined accept-reject handling
Product Introduction

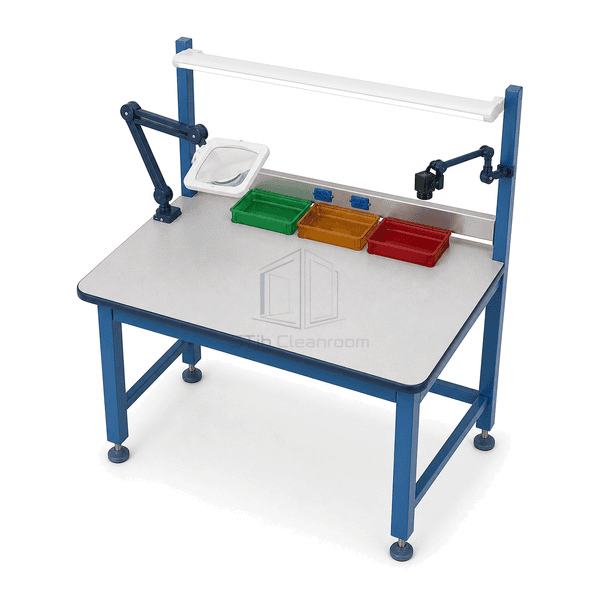

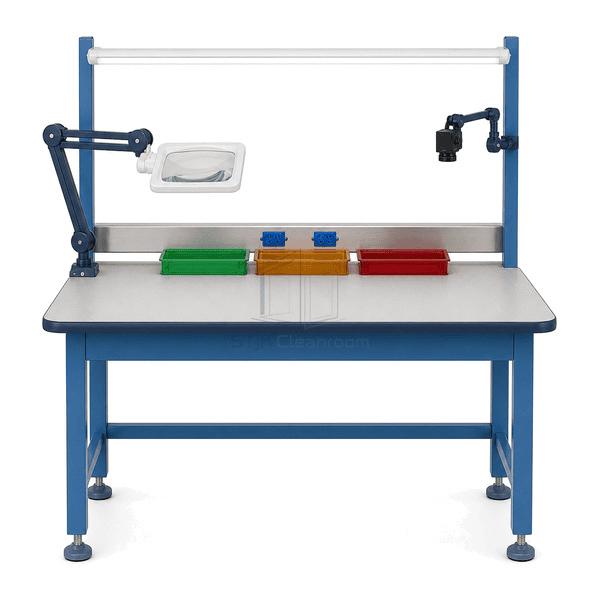

The cleanroom inspection table provides stable lighting and sample positioning for repeatable visual checks. A neutral light-gray compact-laminate surface reduces reflections around transparent, polished or small components, while a height-adjustable high-CRI luminaire directs light without heating the product. Rear rails support magnifiers, cameras and document holders. Separate accept, reject and pending trays prevent inspected parts from mixing.
Key Features

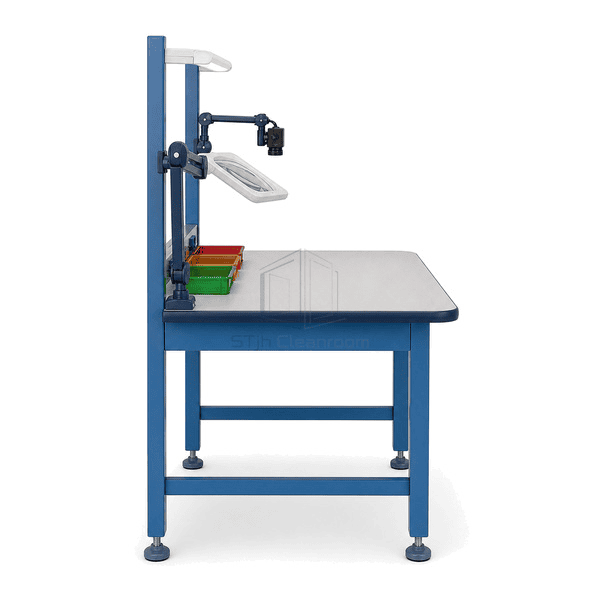

A low-glare work surface limits reflected hotspots around polished or transparent parts.
Adjustable camera and magnifier mounts preserve focus without handheld contact.
Clearly separated output trays maintain disposition status after each inspection.
Customer Product Concerns
Visual inspection becomes inconsistent when room lighting, reflections and sample disposition change between operators.
Overhead room lights create glare that hides fine scratches and particles.Directional dimmable task lighting controls angle and intensity at the sample.
Operators hold magnifiers with one hand and move the product with the other.Fixed articulated optics leave both hands available for controlled handling.
Passed and rejected components return to the same tray.Dedicated colour-coded output positions preserve inspection status.
Dark or glossy benchtops distort colour and edge judgement.A neutral matte inspection surface provides predictable contrast without heavy texture.
Typical Applications
Medical-device visual inspectionOptics surface checkingPharmaceutical container inspectionPrecision component quality controlClean packaging verification
Technical Parameters
Typical configurable specifications for a cleanroom inspection table are listed below.
| Core Material | Neutral light-gray compact-laminate inspection top on a sealed powder-coated steel frame |
|---|---|
| Panel Thickness | 20–30 mm worktop assembly |
| Effective Width | 700–900 mm inspection surface depth |
| Maximum Length | 2000 mm |
| Steel Facing Thickness | 1.0–1.5 mm stainless service and frame panels |
| Core Density | 1350–1450 kg/m³ for compact laminate inspection top |
| Thermal Conductivity | 0.20–0.35 W/(m·K) for compact laminate top |
| Surface Finish | Neutral light-gray matte compact laminate with sealed cleanable edges |

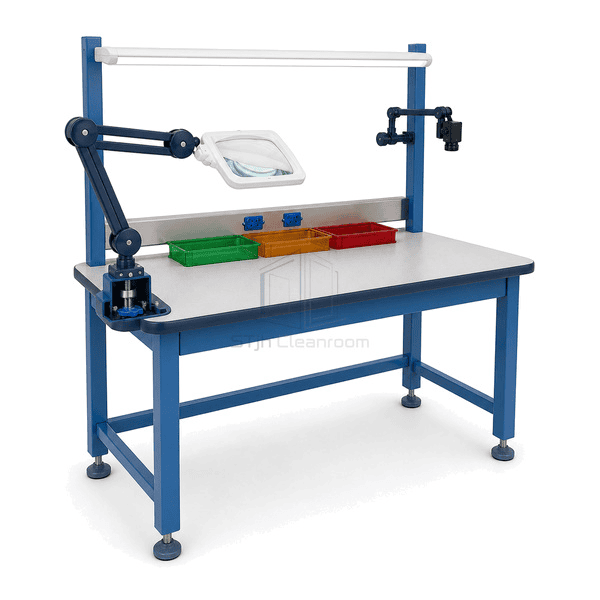

| Joint Type | Sealed worktop edge with modular rear rail and concealed service connections |
| Customization | Available based on the intended application and operating environment. |
Available Options
Dimmable high-CRI light barMagnifier or camera armBlack and white contrast panels or non-directional stainless steel topESD-grounded configuration
Planning a Cleanroom Inspection Table specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
