Cleanroom Furniture and Stainless Steel Products
Cleanroom Garment Storage Cabinet

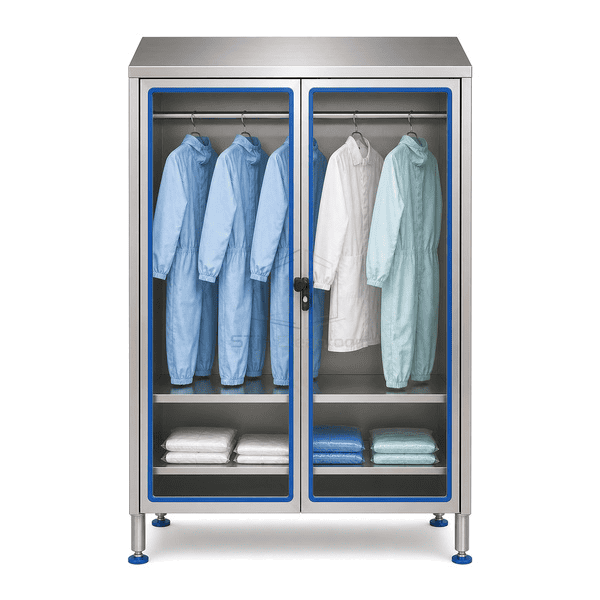

A shared Type 304L stainless gowning cabinet with glazed double doors, a full-width hanging rail and lower shelves for organized bulk garment storage.
- Full-width closed-loop hanger rail
- Twin glazed gasketed doors
- Lower folded-garment shelves
- 300 mm raised floor clearance
Product Introduction

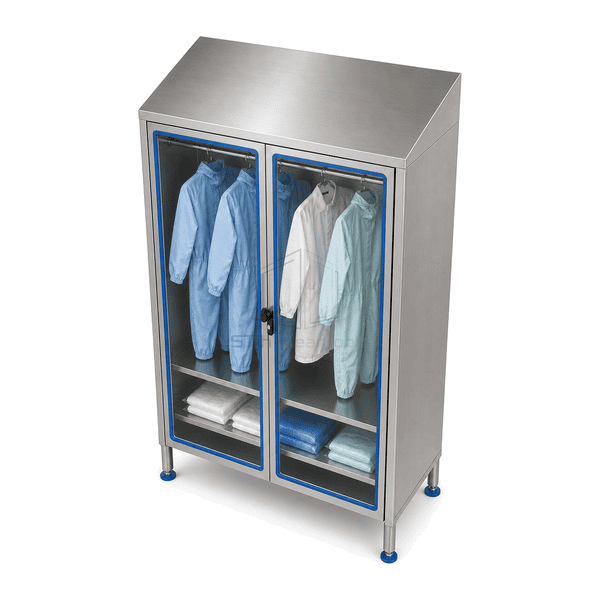

The cleanroom garment storage cabinet provides one shared enclosure for coveralls, frocks and folded accessories rather than dividing capacity by person. A full-width stainless hanging rail spans the upper chamber, while two lower stainless shelves store folded garments and packaged hoods. Twin laminated-glass doors reveal available stock before access and close against continuous blue silicone seals using a central three-point compression lock. The 1.5 mm Type 304L enclosure has a sloped roof, smooth internal returns and 300 mm-high stainless legs that leave the floor beneath the cabinet open for cleaning.
Key Features
Two lower stainless shelves separate folded hoods and packaged garments from shoes or floor-level splash exposure.
Laminated glazed doors show garment quantity and rail occupancy before the cabinet is opened.

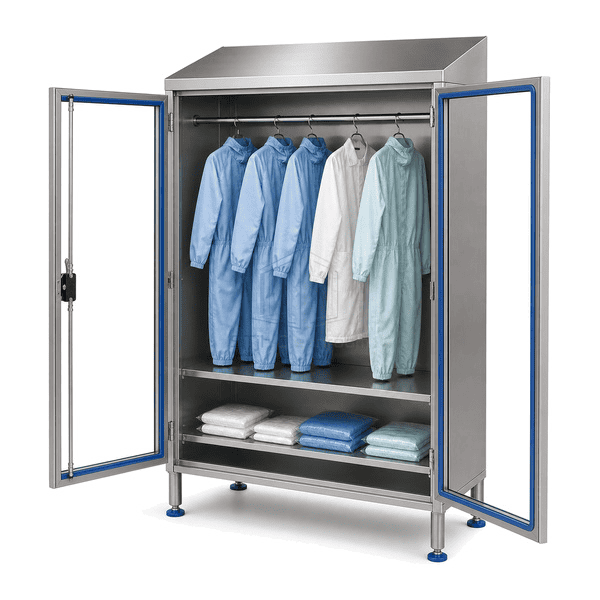

A linked three-point compression closure pulls the paired doors evenly onto continuous blue silicone seals.
Customer Product Concerns
Bulk clean garments require high hanging capacity and quick stock visibility without the wasted width of individual personnel partitions.
Individual lockers consume excessive width when garments are issued from a common controlled stock.One uninterrupted hanging rail uses the full cabinet width for shared coveralls and frocks.
Opaque doors force staff to open the cabinet repeatedly to check garment sizes and remaining quantity.Twin laminated viewing panels expose rail occupancy and shelf stock while the enclosure stays closed.
Folded hoods and packaged accessories become mixed with garments hanging to full length.Two lower stainless shelves establish separate, visible zones below the suspended garments.

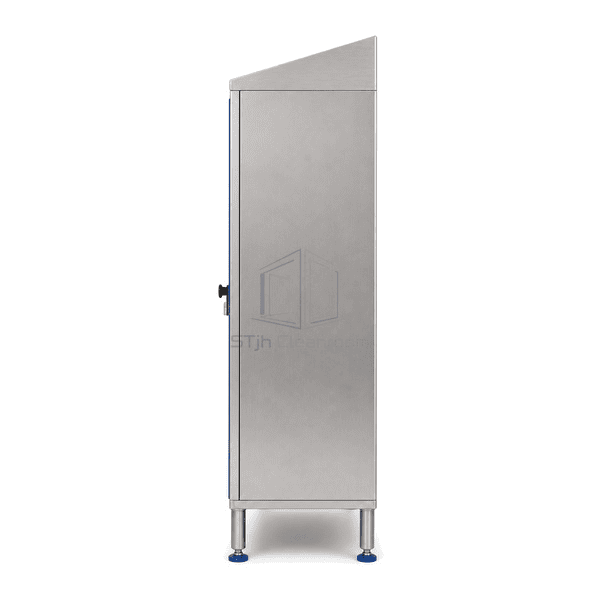

A low plinth traps lint and prevents direct access to the floor behind the door swing.Four 300 mm stainless legs expose the complete cabinet footprint for inspection and wiping.
Typical Applications
Central clean garment storesPharmaceutical gowning-room stock pointsBiotechnology clean apparel stagingMedical-device gowning apparel stockroomsClean laundry issue and return areas
Technical Parameters
Typical configurable specifications for a shared stainless cleanroom garment storage cabinet are listed below.
| Core Material | Type 304L stainless steel welded enclosure with laminated-glass twin doors, full-width hanger rail and two lower stainless shelves |
|---|---|
| Panel Thickness | 1.5 mm cabinet body, framed doors and internal shelves |
| Effective Width | 1000–1200 mm overall cabinet width |
| Maximum Length | 2080 mm maximum height at the rear of the sloped roof |
| Steel Facing Thickness | 1.5 mm Type 304L stainless enclosure, door frames and shelf pans |
| Core Density | 7900–8000 kg/m³ for Type 304L stainless steel |
| Thermal Conductivity | 14–16 W/(m·K) for Type 304L stainless steel |
| Surface Finish | Brushed dull-polish stainless with clear laminated glazing, blue silicone door seals and black central lock |
| Joint Type | Continuously welded carcass with gasketed glazed double doors, concealed hinges, linked three-point lock and removable shelf supports |
| Customization | Available based on the intended application and operating environment. |
Available Options
Full-width rail or half-rail and shelf layoutPerforated shelves for vertical airflowOpaque stainless or static-dissipative clear doorsTop-mounted filtered-air module
Planning a Cleanroom Garment Storage Cabinet specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
