Cleanroom Drainage, Hygiene and Safety Equipment

Cleanroom Emergency Call Station

A flush stainless call point with a large illuminated control and status confirmation for isolated cleanroom and laboratory areas.

Large Illuminated Call Button
Flush Stainless Front Plate
Call Status Confirmation
Supervised Remote Interface

Request a Quote Browse Products

Product Introduction

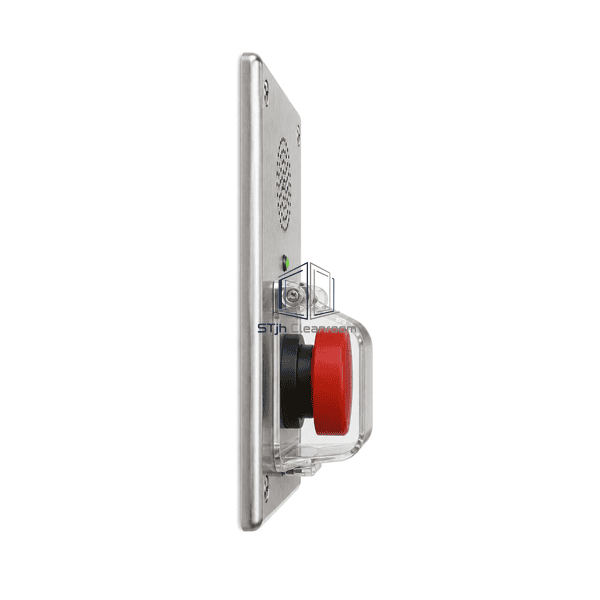

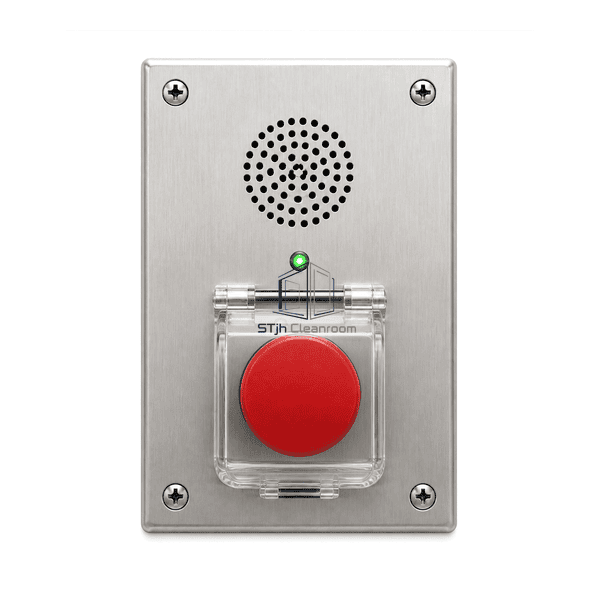

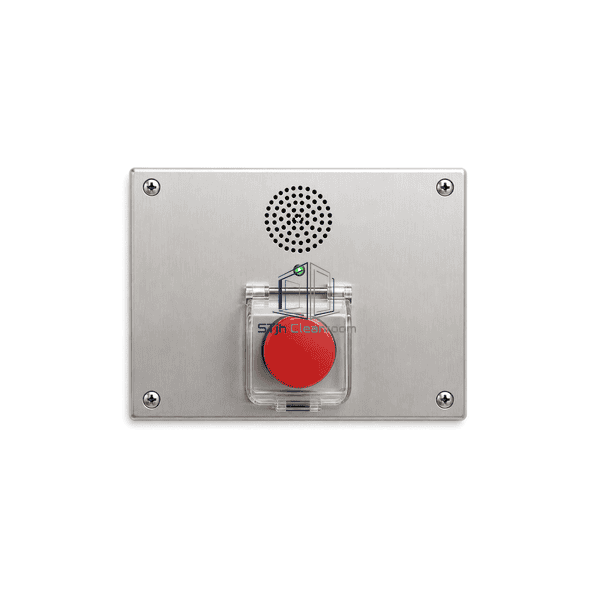

The cleanroom emergency call station mounts a large sealed push button, status indicator and optional two-way audio behind a flush stainless faceplate. Activation sends a supervised signal to the designated control, security or nurse-call system and provides local confirmation that the request has been registered. A gasketed back box and smooth engraved labeling support cleaning without exposed paper labels.

Key Features

A large illuminated button is easy to identify and operate while wearing gloves.

Local status indication confirms call transmission and acknowledgement.

A flush stainless face minimizes ledges in clean corridors.

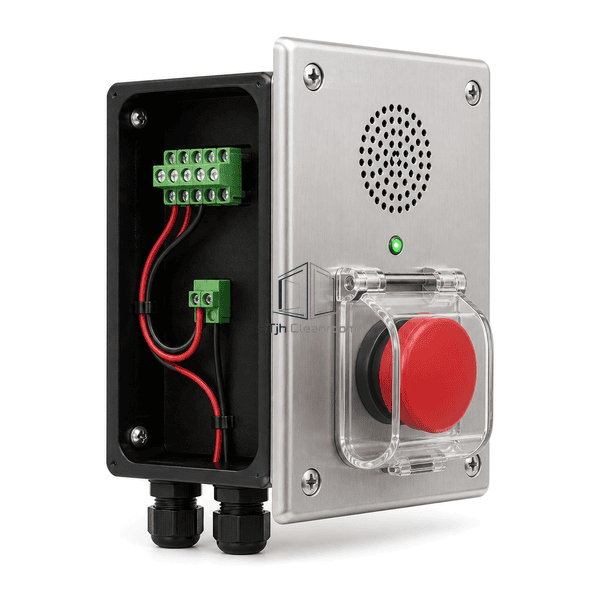

Dry contacts, supervised loops or network interfaces connect to the receiving system.

Customer Product Concerns

Personnel working alone need a simple assistance control that confirms the call and remains compatible with gloved use and frequent cleaning.

Small recessed controls are difficult to operate with gloves.A large raised or mushroom-style illuminated button provides a clear target.

The caller cannot tell whether the signal reached the control room.Separate sent and acknowledged indications confirm call progression.

Surface boxes create dirt-catching ledges.A recessed gasketed back box keeps the stainless face close to the wall plane.

A cut cable could silently disable the station.Supervised circuits or network health monitoring report wiring faults.

Typical Applications

Isolated cleanroomsLaboratory corridorsAirlocks and gowning areasControlled utility rooms

Technical Parameters

Typical station construction values are listed below; signaling protocol and acknowledgement workflow are selected for the receiving system.

Core Material	AISI 304 stainless faceplate with sealed industrial push button and status LEDs
Panel Thickness	1.5-2.0 mm faceplate
Effective Width	100-250 mm
Maximum Length	Up to 350 mm faceplate height
Steel Facing Thickness	1.5-2.0 mm exposed stainless plate
Core Density	7900-8000 kg/m³ for stainless components
Thermal Conductivity	14-16 W/(m·K) for stainless components
Surface Finish	Satin brushed stainless with engraved or laser-marked identification
Joint Type	Gasketed flush faceplate on recessed back box with pluggable supervised terminals
Customization	Available based on the intended application and operating environment.

Available Options

Call and reset buttonsTwo-way audioDry-contact or network interfaceCustom engraved legend
