Cleanroom Material Handling and Storage
Cleanroom Crane
A stainless cleanroom bridge crane with an enclosed flat-belt hoist, wipeable structure and configurable travel controls for controlled-area lifting.
- Stainless bridge structure supports hygienic overhead handling
- Lubrication-free flat-belt hoist limits exposed particle sources
- Configurable runway and controls fit process-specific load paths
Product Introduction

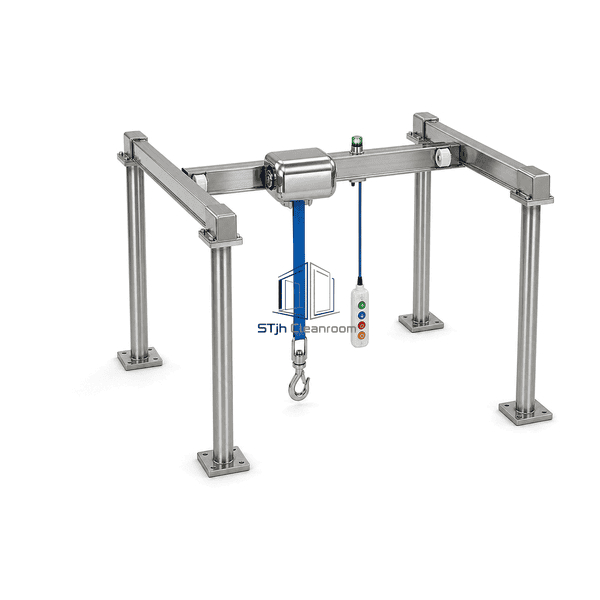

This cleanroom crane combines a freestanding stainless runway, traveling bridge and enclosed belt hoist into an overhead handling system designed for controlled manufacturing. Smooth metal surfaces, covered beam ends and accessible external joints support routine wipe-down. The blue synthetic lifting belt avoids the exposed chain lubricant and abrasion points associated with conventional chain lifting media.
Key Features
Enclosed hoist housing shields internal drive components from the room.
Lubrication-free coated lifting belt reduces exposed contamination sources.
Pendant controls keep lift commands and emergency stop within operator reach.
Modular span, height and travel arrangements accommodate process layouts.
Customer Product Concerns
Clean production areas need broad load coverage without floor-level traffic, exposed chain grease or difficult-to-clean painted structures above sensitive operations.
Exposed lubricant over productThe flat lifting belt eliminates externally lubricated chain from the load path.
Hard-to-clean overhead surfacesStainless members, enclosed ends and smooth covers present accessible wipeable faces.
Limited handling coverageBridge and trolley travel provide two horizontal axes across the defined work envelope.
Uncontrolled load positioningConfigurable travel and lifting speeds support deliberate approach and alignment.
Typical Applications
Overhead transfer of process vessels, tooling, component carriers and production assemblies in pharmaceutical, biotechnology, medical-device, electronics and semiconductor controlled environments.
Technical Parameters

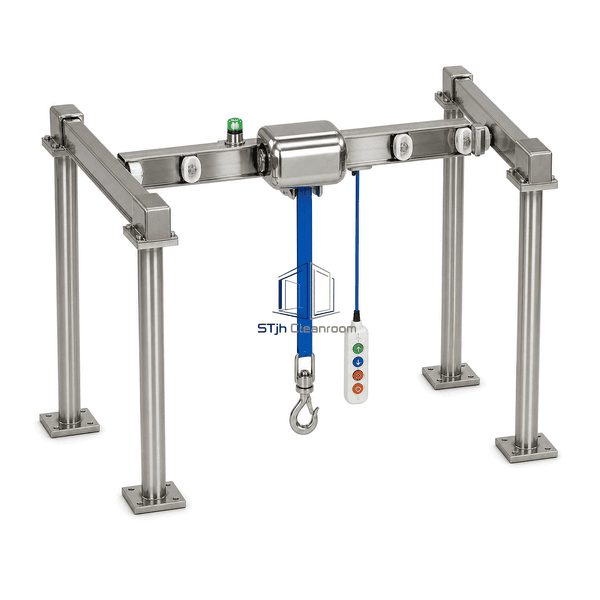

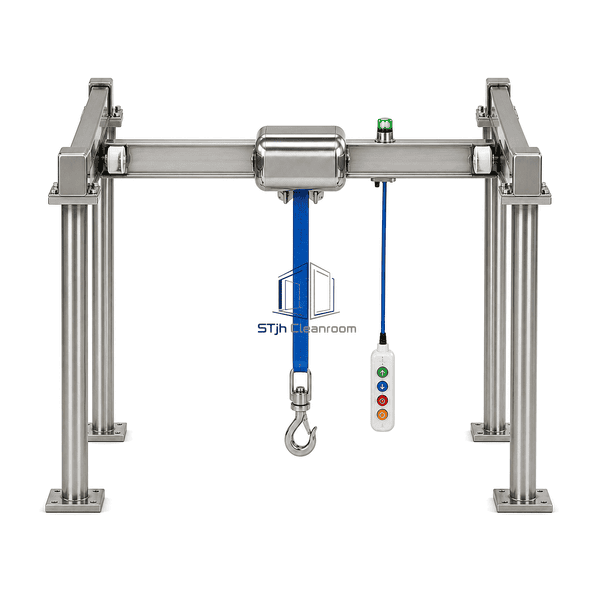

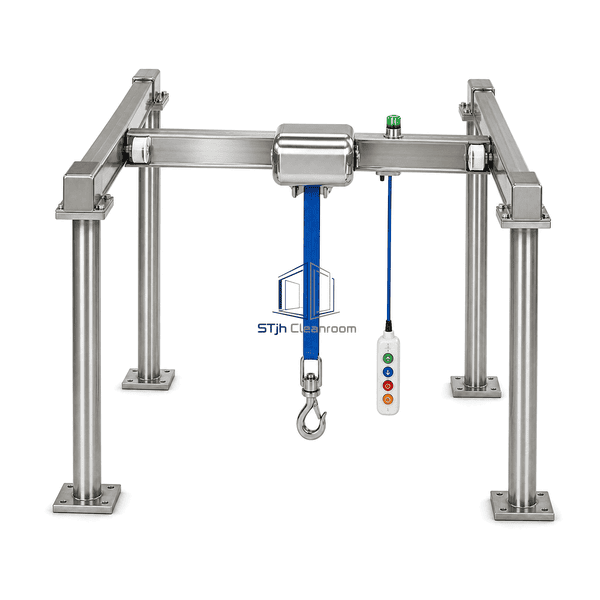

Four floor-mounted columns support paired longitudinal runways and a traveling transverse bridge. The trolley-mounted hoist moves the load along the bridge while the bridge travels on the runways, providing two horizontal axes plus vertical lifting. Hoist capacity, span, hook travel, speeds, power supply and control method are selected against the load, duty cycle and room envelope. Final structural sizing remains application-specific.
| Core Material | 304 or 316L stainless steel crane structure with synthetic flat lifting belt |
|---|---|
| Panel Thickness | 2.0–4.0 mm stainless enclosure and beam cover panels |
| Effective Width | 2000–8000 mm configurable bridge span |
| Maximum Length | Up to 20000 mm configurable runway length |
| Steel Facing Thickness | 1.5–3.0 mm external stainless covers |
| Core Density | 8000 kg/m³ nominal stainless steel density |
| Thermal Conductivity | Approximately 14.6–16.2 W/(m·K) at room temperature |
| Surface Finish | Fine-brushed, mechanically polished or electropolished stainless steel |
| Joint Type | Bolted column bases, enclosed runway connections and trolley-mounted bridge hoist |
| Customization | Available based on the intended application and operating environment. |
Available Options
304 or 316L stainless steel, freestanding or building-supported runway, manual or powered bridge travel, variable-speed drives, wireless control, stainless pendant, alternative spans and hook travels, load display and application-specific lifting fixtures.
Planning a Cleanroom Crane specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
