Cleanroom Air Distribution Systems
Cleanroom Air Transfer Grille

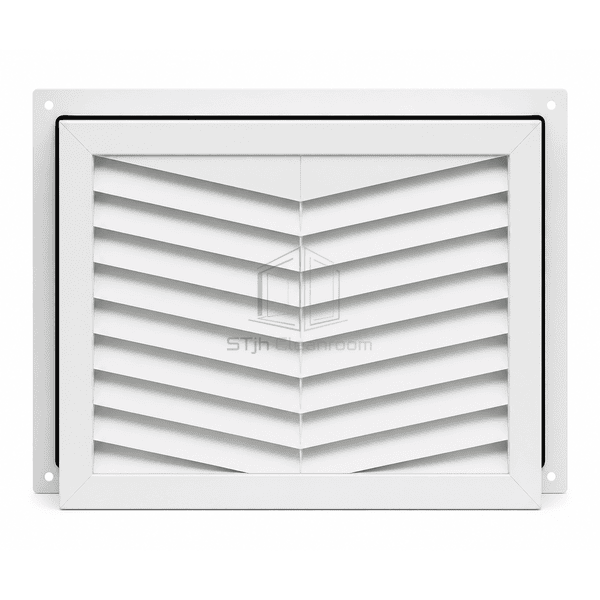

A double-sided door or partition grille with opposed chevron blades that passes pressure-relief air while blocking direct vision between rooms.
- No Direct Line of Sight
- Low-Resistance Transfer Path
- Adjustable Wall Sleeve
- Double-Sided Chevron Blades
Product Introduction

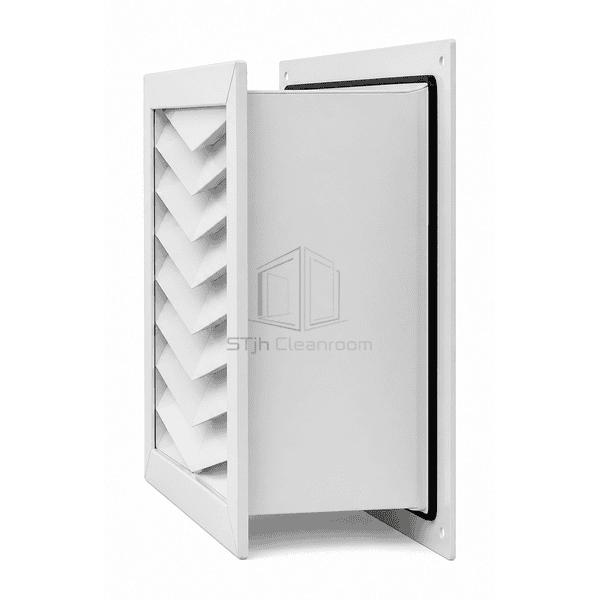

The cleanroom air transfer grille allows passive airflow between adjacent rooms when a pressure difference exists but a ducted transfer branch is unnecessary. Opposed V-shaped aluminum blades overlap through the wall opening, preventing a straight visual path while leaving a broad free area. Matching front and rear frames clamp around the partition, and an adjustable sleeve covers the cut edges of doors or sandwich panels. The removable faces provide access for wiping the blade channels and the interior sleeve.
Key Features
A large free area passes pressure-relief air with less resistance than a densely baffled acoustic transfer unit.

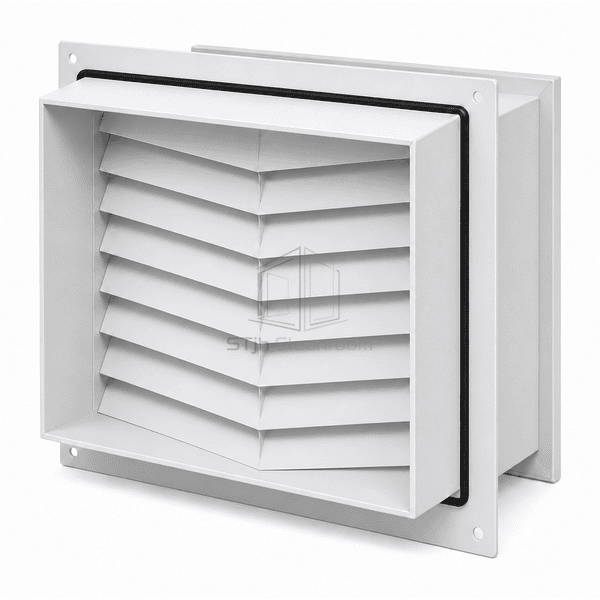

The telescopic sleeve adapts one grille set to different cleanroom door and wall thicknesses.
Two removable finished faces leave the internal blade passages accessible from either room.
Customer Product Concerns
A passive transfer opening must relieve room pressure without exposing unfinished partition edges or creating a direct line of sight.
A plain wall opening allows direct visibility and light passage between controlled rooms.Opposed chevron blades overlap the opening while retaining a usable airflow path.

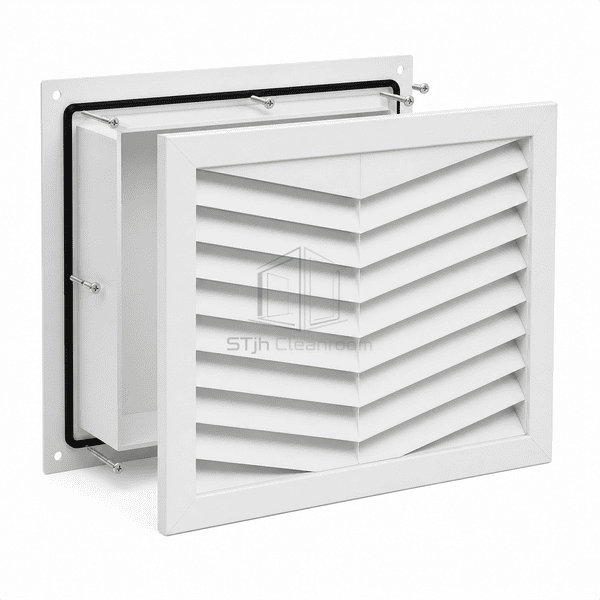

The grille frame does not span the thickness of a sandwich-panel wall or door.An adjustable sleeve bridges the partition and seals both room-side frames to the cutout.
Pressure relief is inadequate because the transfer core has too little free area.Generous blade spacing minimizes resistance for the selected grille width and pressure differential.
Dust remains trapped inside an enclosed double-sided grille.Detachable face frames expose the blade passages and sleeve for cleaning from either side.
Typical Applications
Pressure transfer through cleanroom doorsAir movement between gowning stagesTransfer paths in laboratory partitionsReturn-air relief from small clean support roomsPressure equalization across service corridors
Technical Parameters
Representative material and size ranges for a no-sight cleanroom transfer grille are listed below.
| Core Material | Profiled aluminum frames and opposed chevron blades with telescopic partition sleeve |
|---|---|
| Panel Thickness | 1.2–2.0 mm profiled aluminum blade and frame walls |
| Effective Width | 200–800 mm nominal transfer opening width |
| Maximum Length | Up to 800 mm grille width in a single door or wall set |
| Steel Facing Thickness | 0.8–1.0 mm optional galvanized-steel telescopic wall sleeve |
| Core Density | Approximately 2700 kg/m³ for the aluminum chevron blade assembly |
| Thermal Conductivity | Approximately 200–210 W/(m·K) for the aluminum chevron blade assembly |
| Surface Finish | White powder-coated, clear anodized or mill-finished aluminum |
| Joint Type | Opposed room-side frames joined by an adjustable sleeve and perimeter foam seals |
| Customization | Available based on the intended application and operating environment. |
Available Options
Single face with opposite frame or double grille set25–100 mm adjustable partition sleeveWhite powder coat or clear anodized finishSandwich-panel and cleanroom-door mounting kits
