Cleanroom Material Handling and Storage

Cleanroom AGV

A stainless cleanroom automated guided vehicle with laser navigation, safety sensing and an integrated scissor-lift docking platform.

Encapsulated stainless body supports low-particle guided transport
Integrated lift platform automates docking and load exchange
Multi-zone safety sensing protects planned travel routes

Request a Quote Browse Products

Product Introduction

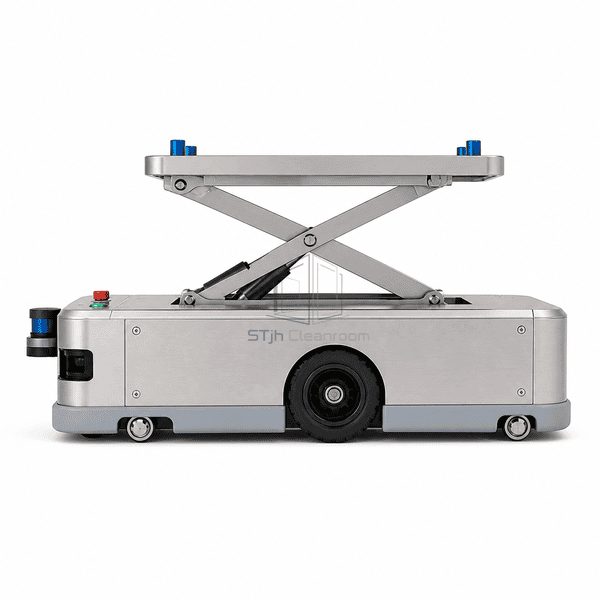

The vehicle uses an encapsulated stainless body, guided navigation sensor, protective laser fields and a powered lift platform for repeatable material transfer. Recessed drives and contact charging reduce exposed mechanisms, while rounded surfaces and sealed panels support clean-area maintenance.

Key Features

Guided navigation follows validated routes between defined stations.

Scissor lift aligns the top docking plate with transfer equipment.

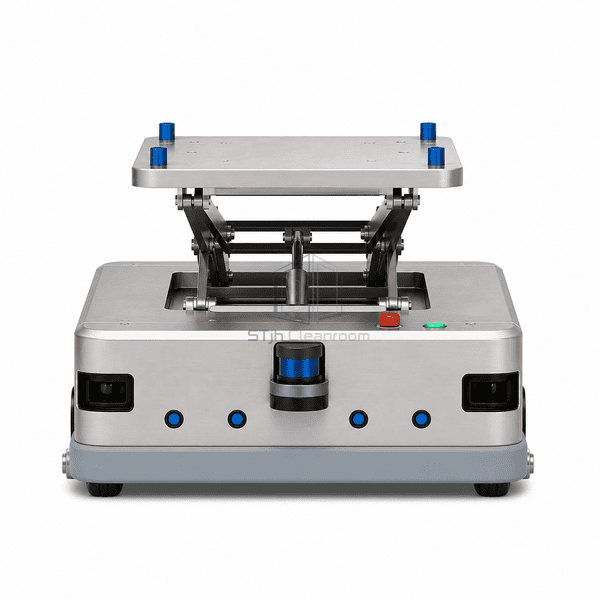

Front safety lasers and ultrasonic sensors detect obstacles.

Encapsulated drives and electronics limit exposed particle sources.

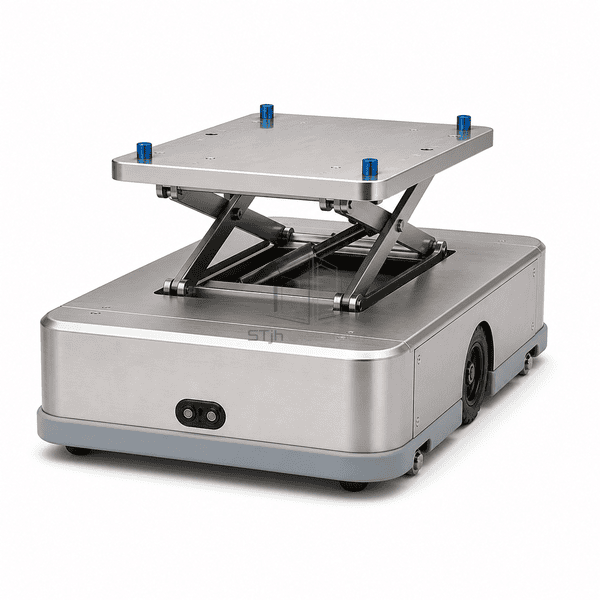

Automatic charging contacts support scheduled unattended operation.

Customer Product Concerns

Manual cart movement introduces traffic variability, repeated handling and inconsistent alignment at automated process stations.

Inconsistent station approachGuided navigation and docking targets provide repeatable positioning.

Height mismatch during exchangeThe powered scissor platform aligns the load interface.

Collision risk on shared routesSafety laser windows, ultrasonic sensors and bumper zones monitor obstacles.

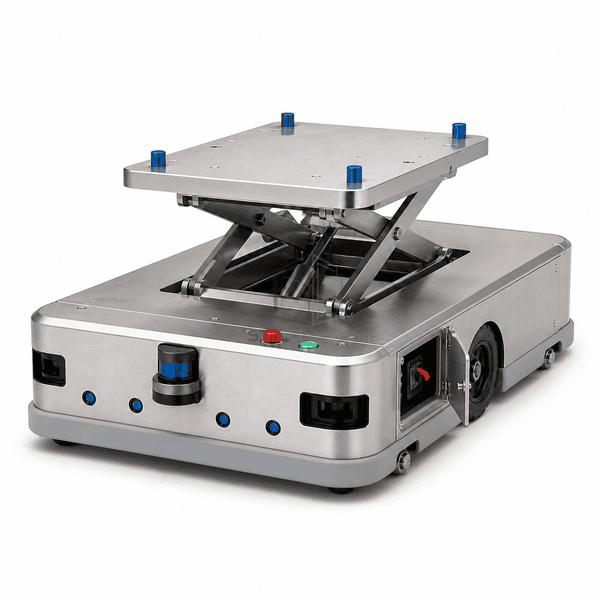

Exposed drive contaminationEncapsulated panels isolate primary drive and electrical components.

Typical Applications

Repeatable transport of carriers, trays, sealed totes and process fixtures along defined cleanroom production and logistics routes.

Technical Parameters

Vehicle size, payload, navigation method, lift stroke and docking pins are matched to the facility layout and carrier interface. Route controls and safety fields are configured through the plant automation system.

Core Material	Type 304 stainless encapsulated body with electric lift, battery drive and safety sensors
Panel Thickness	2.0–3.0 mm external body and service panels
Effective Width	600–1000 mm platform width
Maximum Length	Up to 1800 mm vehicle length
Steel Facing Thickness	1.5–2.5 mm
Core Density	7930 kg/m³ nominal stainless steel density
Thermal Conductivity	Approximately 16.2 W/(m·K) at room temperature
Surface Finish	Fine-brushed and passivated stainless steel with smooth sealed covers
Joint Type	Bolted sealed body with recessed drive modules, electric scissor lift and locating-pin docking plate
Customization	Available based on the intended application and operating environment.

Available Options

Laser, magnetic or QR guidance, alternate lift strokes, roller or fork top modules, ESD configuration, contactless charging, fleet software and custom docking pins.

Planning a Cleanroom AGV specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.

Talk to Our Team
