Clean Utensil Storage Cabinet

A Type 304L stainless cabinet that keeps cleaned utensils visible and separated on removable perforated shelves above a drainable collection tray.

Four removable perforated shelves
Adjustable blue utensil dividers
Glazed gasketed double doors
Drainable lower collection tray

Request a Quote Browse Products

Product Introduction

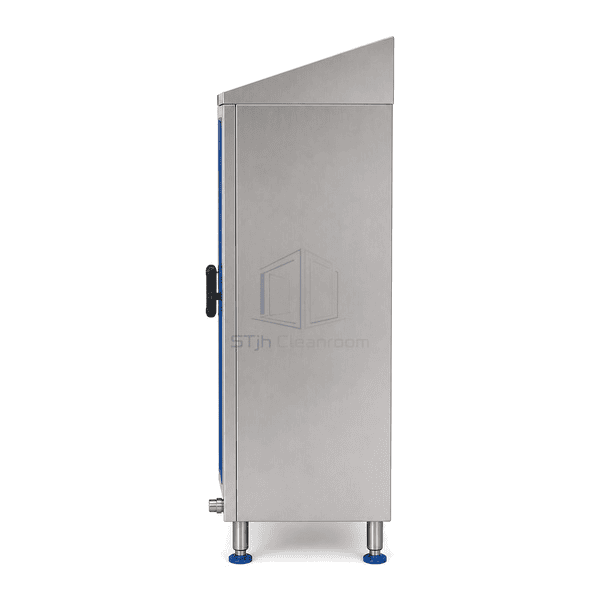

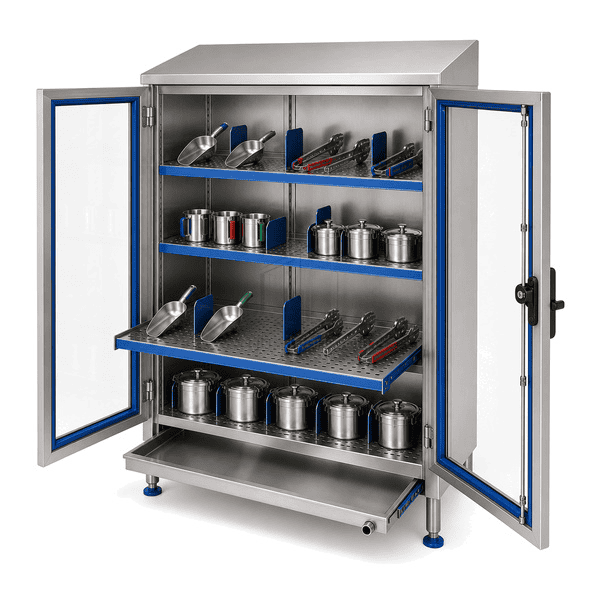

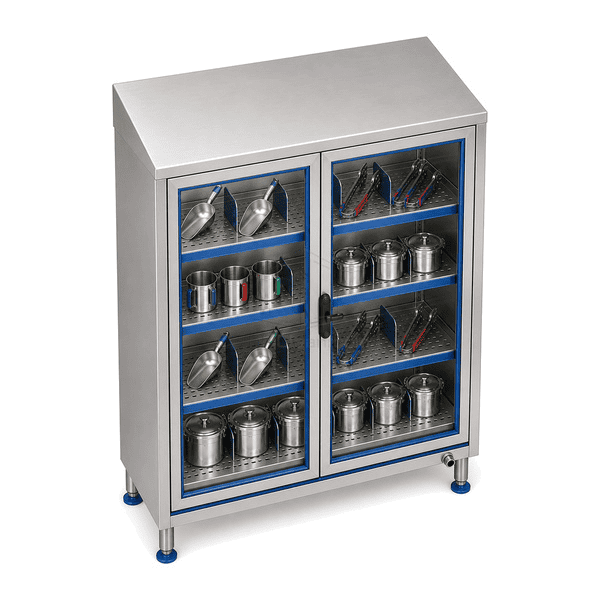

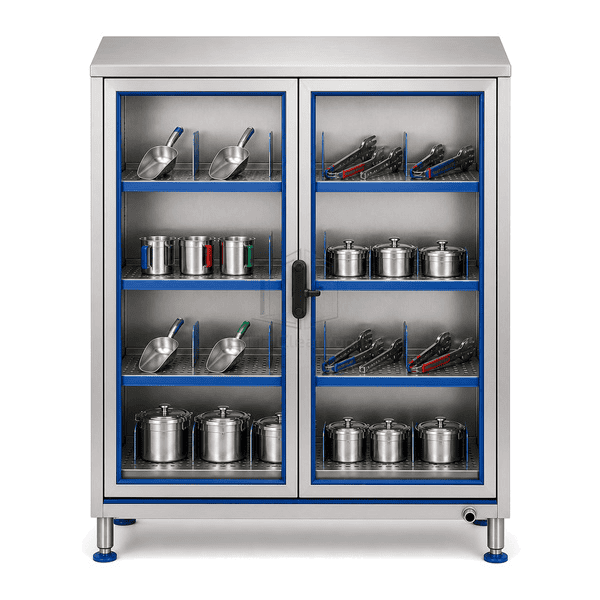

The clean utensil storage cabinet is arranged for washed tongs, scoops, small vessels and process accessories that must remain separated after cleaning. Four removable Type 304L perforated shelves sit on smooth blue support rails and accept repositionable silicone-edged dividers, preventing long or irregular utensils from rolling together. Laminated-glass double doors provide stock visibility without opening the enclosure. Residual droplets pass through the shelves to a shallow pull-out collection tray with a capped drain connection, while the welded cabinet stands 150 mm above the floor on adjustable stainless feet.

Key Features

Perforated shelf pans support air movement around damp utensils and allow residual droplets to leave the storage surface.

Repositionable blue dividers create narrow or wide zones for scoops, tongs, small parts and lidded vessels.

Clear doors expose shelf occupancy and missing tools before an operator releases the compression latch.

The lower collection tray slides out independently for draining and cleaning without unloading the upper shelves.

Customer Product Concerns

Cleaned utensils require visible, separated storage that does not retain rinse water or hide residue beneath fixed shelves.

Loose tongs and scoops slide together and contact neighboring items after cleaning.Adjustable silicone-edged dividers create dedicated shelf lanes sized to each utensil group.

Solid shelves hold droplets beneath washed tools and containers.Perforated stainless pans allow drainage into a removable lower collection tray.

Opaque cupboards are repeatedly opened to confirm whether a required utensil is available.Twin laminated viewing doors reveal shelf occupancy while the gasketed enclosure remains closed.

Fixed internal shelves leave inaccessible seams during cabinet cleaning.Lift-out shelf pans, removable dividers and smooth support rails expose the interior wall surfaces for wiping.

Typical Applications

Aseptic processing utensil storesPharmaceutical component preparation roomsFood and beverage hygiene areasCosmetics manufacturing clean zonesLaboratory reusable instrument storage

Technical Parameters

Typical configurable specifications for a freestanding stainless clean utensil storage cabinet are listed below.

Core Material	Type 304L stainless steel welded enclosure with laminated-glass doors, four removable perforated shelves, blue silicone-edged dividers and pull-out collection tray
Panel Thickness	1.2–1.5 mm cabinet panels, shelf pans and collection tray
Effective Width	1200 mm overall cabinet width
Maximum Length	1900 mm maximum height including the sloped hygienic top
Steel Facing Thickness	1.2–1.5 mm Type 304L stainless enclosure, door frames and removable shelves
Core Density	7900–8000 kg/m³ for Type 304L stainless steel
Thermal Conductivity	14–16 W/(m·K) for Type 304L stainless steel
Surface Finish	Brushed dull-polish stainless with clear laminated glazing, cobalt-blue silicone dividers and blue non-marking foot pads
Joint Type	Continuously welded cabinet with gasketed glazed doors, lift-out perforated shelves on smooth support rails and a pull-out drain tray with capped outlet
Customization	Available based on the intended application and operating environment.

Available Options

Solid shelves for packaged utensilsNumbered or color-coded divider setsLockable three-point door closureType 316L electropolished construction
