Industry-Specific Cleanroom Equipment
Animal Transfer Station
An enclosed mobile vivarium transfer cart with uninterrupted HEPA-filtered airflow, a gasketed observation door and adjustable cage-carrier rails for controlled movement between animal rooms.
- Enclosed Mobile Transfer Cabinet
- Two Replaceable HEPA Filters
- Battery-Supported Airflow
- Three Adjustable Carrier Levels
Product Introduction

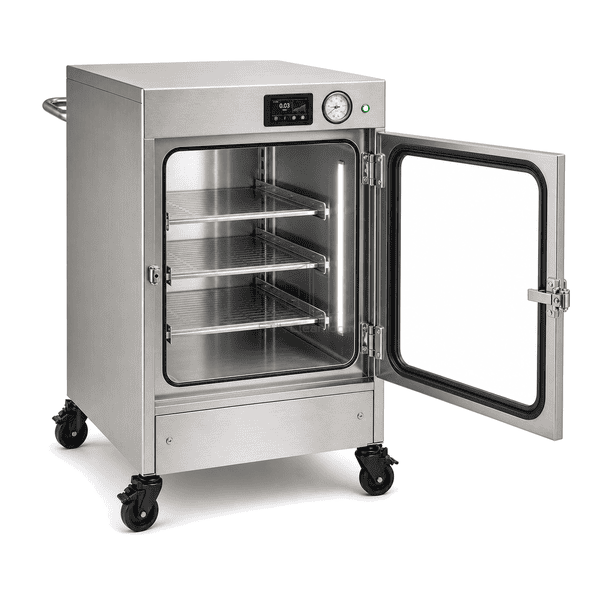

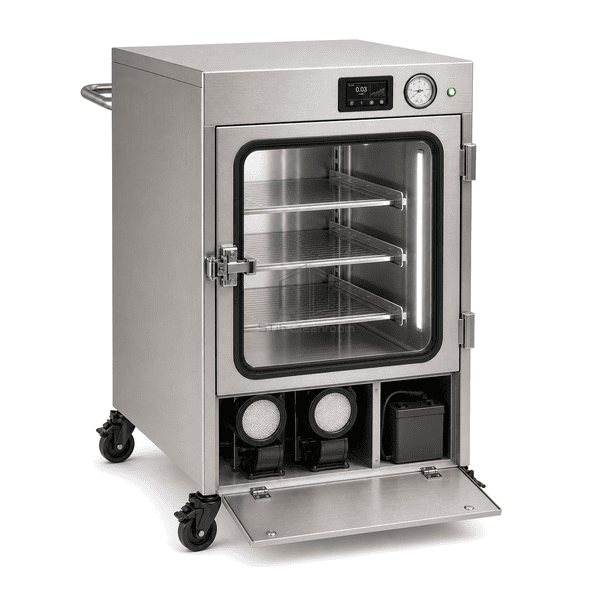

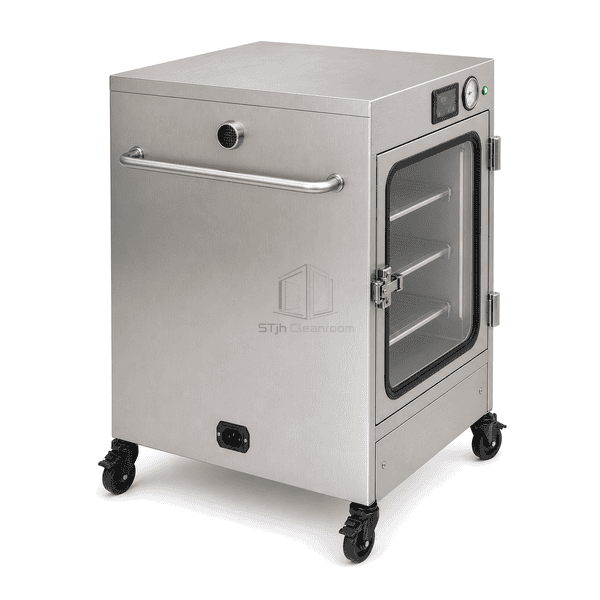

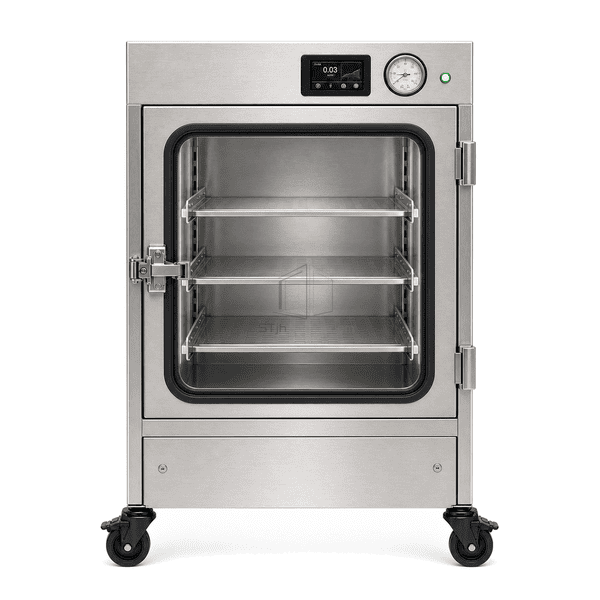

The Animal Transfer Station is a compact enclosed cart for moving occupied closed cages or transport boxes between vivarium holding rooms, procedure areas and quarantine routes. The illustrated configuration is a single mobile cabinet rather than an open cage-changing workstation. It has one wide front door with a clear tempered-glass observation window, a continuous black EPDM compression gasket and a positive latch. Three removable stainless-steel carrier shelves engage paired side rails inside the chamber. The lower service compartment contains two replaceable 203 mm HEPA filters, two low-noise blower modules and a rechargeable battery pack that keeps filtered airflow operating while the cart is disconnected for transit. A black control screen, one round differential-pressure gauge, one green status light and one internal white LED strip support routine monitoring and loading. Four lockable castors and one rear push handle allow controlled movement through animal-facility corridors. It is not an open animal cage changing station, biological safety cabinet or wall-mounted material pass box.
Key Features
Two independent 203 mm replaceable HEPA filters and two low-noise blowers maintain filtered recirculating airflow, while the onboard battery supports the air system between fixed power points.
Three removable carrier shelves locate on welded side rails, allowing shelf spacing to be adapted to different closed rodent cage and transport-box heights without adding loose floor platforms.
A differential-pressure gauge, compact control screen, green operating light and internal LED provide direct status and loading visibility without opening the observation door.
Customer Product Concerns
Animal transport routes must preserve cage separation and ventilation while remaining compact, observable and stable during loading and corridor movement.
Open carts expose cage exteriors to corridor dust and allow animal allergens to disperse during movement.A gasketed stainless enclosure surrounds the loaded closed cages while the dual-filter recirculation path keeps the chamber air moving through replaceable HEPA elements.
Airflow can stop when a mobile unit is unplugged between animal rooms.The integrated rechargeable battery pack supplies the two blower modules during unplugged transit, with operating condition visible at the control panel.
Mixed cage heights can shift or waste space on a fixed internal rack.Three removable stainless carrier shelves locate on paired rails so the usable levels can be arranged around the closed cage or transport-box format.
Loading checks and filter condition are difficult to judge on a closed transport trolley.The large observation window and LED-lit interior show the carrier levels, while the differential-pressure gauge provides a direct mechanical indication across the filtration path.
Typical Applications
Movement of closed mouse and rat cages between vivarium holding and procedure roomsProtected transport of occupied cage boxes through animal-facility corridors and liftsInternal transfer between quarantine, breeding and designated return routesShort-distance relocation of closed transport cages while maintaining filtered airflow
Technical Parameters
Typical configurable construction values for the illustrated enclosed mobile animal transfer station are listed below.
| Core Material | AISI 304 stainless-steel chamber, carrier shelves and rail frame with clear tempered-glass glazing, black EPDM door gasket and powder-coated lower equipment panel |
|---|---|
| Panel Thickness | 1.2 mm nominal stainless-steel chamber panel |
| Effective Width | 610 mm nominal cabinet width |
| Maximum Length | Up to 914 mm overall cabinet length |
| Steel Facing Thickness | 1.2 mm nominal AISI 304 exterior facing |
| Core Density | 8000 kg/m³ for representative AISI 304 stainless-steel components |
| Thermal Conductivity | 15 W/(m·K) for representative AISI 304 stainless steel at room temperature |
| Surface Finish | Neutral silver brushed AISI 304, clear colourless glazing, charcoal-black gasket and controls, green status indicator and blue-white display graphics |
| Joint Type | Single gasket-compression observation door with positive latch, removable rail-mounted carrier shelves and sealed bolted filter-service panels |
| Customization | Available based on the intended application and operating environment. |
Available Options
Alternative carrier-shelf spacing and retainers for the selected closed cage or transport-box format120 V or 230 V charging and mains-power configurationAdditional battery capacity for longer routes between fixed power pointsAlternative AISI 316L chamber construction or powder-coated exterior panels
Planning a Animal Transfer Station specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
