Cleanroom Equipment Spare Parts
AHU Door Gasket

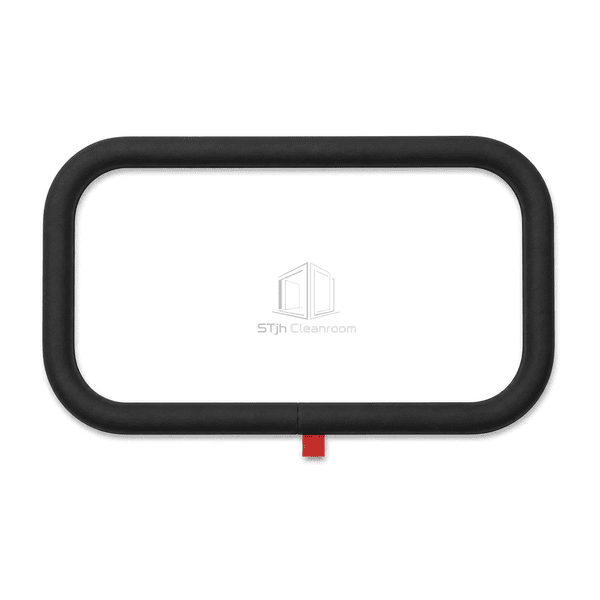

A preformed black closed-cell EPDM bulb gasket that restores a continuous compression seal around an air-handling-unit access door without adding a metal carrier.
- Closed-Cell EPDM Bulb
- Self-Adhesive Flat Base

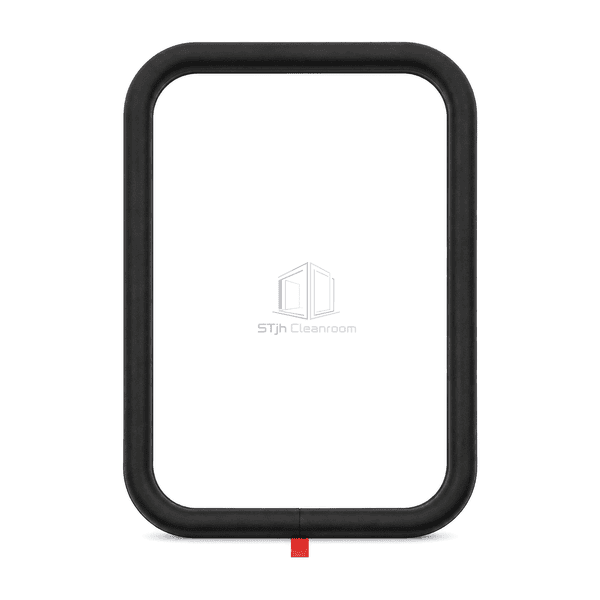

- Single Sealed Perimeter Splice
- Matched AHU Door Geometry
Product Introduction
The AHU door gasket is a flexible extruded seal fitted between an air-handler access door and its surrounding casing flange. Its rounded sponge-rubber bulb compresses as the latches close, while the flat base follows the door perimeter and holds the profile in position with a pressure-sensitive adhesive layer. Closed-cell EPDM is commonly selected for this service because it limits water uptake and tolerates repeated compression, temperature variation and ozone exposure. A replacement loop must reproduce the original profile height, base width, corner path, perimeter and splice position so the door can close evenly without leakage or excessive latch load.
Key Features
A broad flat base distributes adhesive contact across the prepared access-door perimeter without a rigid metal channel.
Closed-cell black EPDM resists incidental condensate while retaining the resilient surface required for repeated service access.

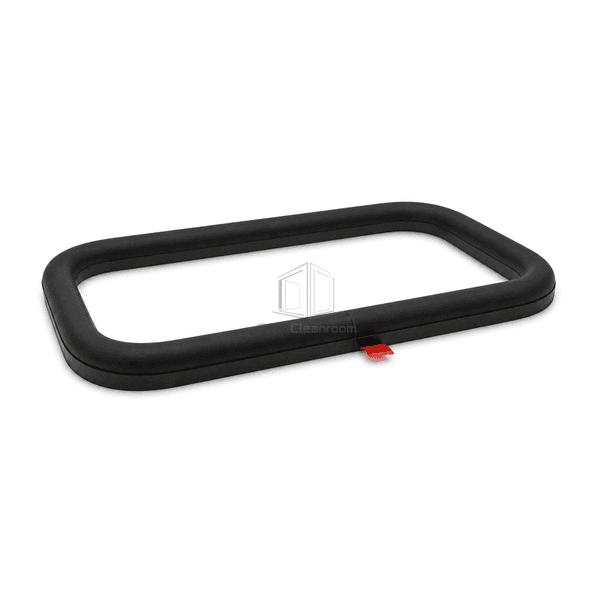

A single finished perimeter splice avoids multiple discontinuities along the sealing path and keeps installation orientation clear.
Customer Product Concerns
Access-door sealing depends on profile geometry, compression and surface preparation; a visually similar weatherstrip can still create bypass leakage or excessive closing force.
A bulb that is too low does not contact the casing flange, while an oversized profile overloads hinges and compression latches.Uncompressed height, base width and available closure gap are measured from the existing AHU door before the replacement profile is selected.
Adhesive-backed gasket can lift where oil, dust, moisture or old foam remains on the mounting surface.The installation face is cleaned and dried, then the liner is removed progressively while the flat base is pressed down without stretching.
Stretching the extrusion around corners causes later shrinkage and can pull the splice apart.The loop perimeter and corner path are formed to the measured door geometry so the gasket is laid in a relaxed state.
An incompatible rubber compound may harden, swell or lose resilience in the AHU temperature and cleaning environment.EPDM grade, cell structure, adhesive system and operating range are selected for the actual air temperature, condensate exposure and maintenance agents.
Typical Applications
Cleanroom make-up and recirculation AHU access doorsFan and coil section inspection panelsFilter-bank service doorsIndustrial HVAC casing maintenance
Technical Parameters
The following ranges describe common self-adhesive closed-cell EPDM bulb profiles prepared as replacement loops for industrial AHU access doors.
| Core Material | Black closed-cell EPDM sponge extrusion with acrylic pressure-sensitive adhesive and red polyethylene release liner |
|---|---|
| Panel Thickness | 8-16 mm nominal uncompressed bulb height |
| Effective Width | 12-30 mm nominal flat adhesive-base width |
| Maximum Length | Up to 8000 mm finished perimeter for common preformed AHU access-door loops |
| Steel Facing Thickness | 0 mm; the gasket uses no steel facing or rigid metal carrier |
| Core Density | 64-128 kg/m³ for representative low- to medium-density closed-cell EPDM sponge |
| Thermal Conductivity | Approximately 0.038-0.063 W/(m·K) for representative closed-cell EPDM foam across common temperatures |
| Surface Finish | Fine-cell matte-black EPDM skin with protected adhesive underside and red peel liner |
| Joint Type | Single precision closed butt or angle splice with continuous self-adhesive flat-base seating |
| Customization | Available based on the intended application and operating environment. |
Available Options
Matched bulb height and base widthPre-spliced rectangular perimeter loopStraight roll length for field fittingAlternative adhesive and release-liner system
Planning a AHU Door Gasket specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
