ESD-safe laminar flow clean bench with grounded work surface

Laminar Flow ve Containment Equipment

ESD Güvenli Laminar Flow Temiz Bench

A clean-air electronics bench combining HEPA-filtered product protection with a grounded static-dissipative work surface and optional balanced ionization.

Static-Dissipative Worktop
Grounded Conductive Frame
Optional Air Ionization
Separated Power and Grounding

Alıntı isteği Browse ürünleri

Ürün tanıtımı

The ESD-safe clean bench adds a controlled electrical path to the standard clean-air workspace. Its static-dissipative laminate or conductive stainless work surface connects to a dedicated grounding point, while optional overhead ionizers neutralize charge on insulated parts. Electrical outlets and signal connections are routed separately from grounding hardware to keep the workstation organized. The filtered airflow protects particle-sensitive electronics; the ESD features address charge control without changing the bench into a hazardous-material enclosure.

Ana Özellikler

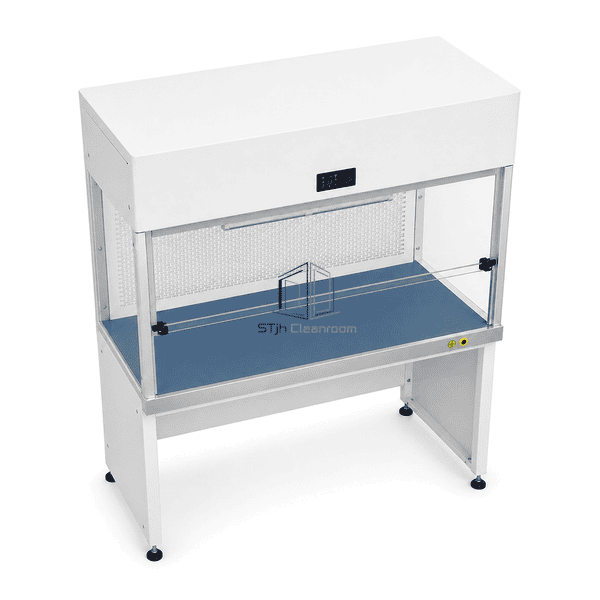

A grounded static-dissipative worktop drains charge without the abrupt discharge of a bare conductor.

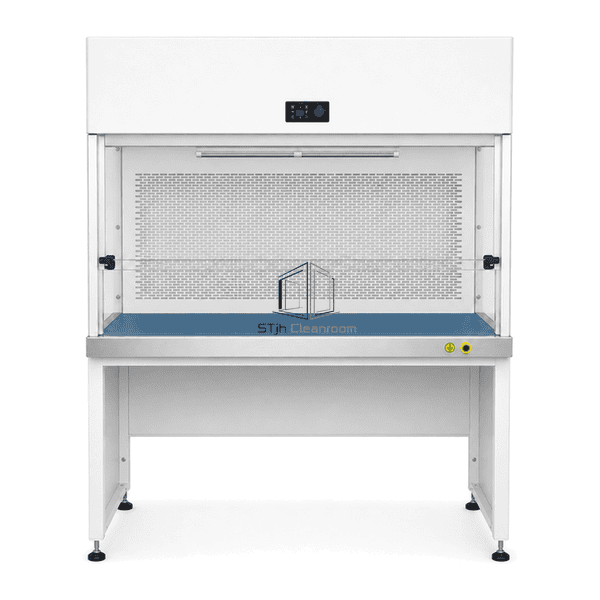

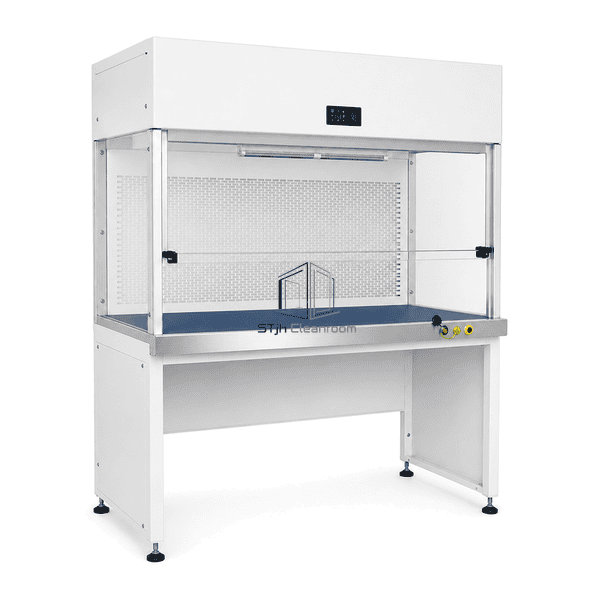

Dedicated wrist-strap and equipment-ground terminals keep personal grounding visible and accessible.

Optional balanced ionizing bars address charge on plastics and other isolated surfaces.

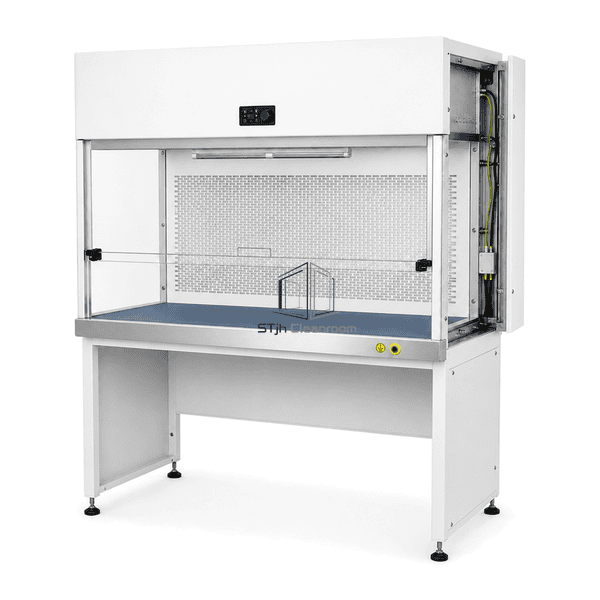

Insulated power channels keep mains wiring separate from signal and ground leads.

A grounding continuity point supports routine checks of the bench bonding network.

Müşteri Ürün Sorunları

Particle control alone does not prevent electrostatic attraction, latent device damage or discharge from isolated materials.

Plastic carriers retain charge even when the bench frame is grounded.A balanced ionization option neutralizes isolated surfaces in the clean airflow.

Operators connect wrist straps to improvised metal points.Clearly positioned ground terminals provide a defined personal grounding connection.

Power cables mix with sensitive measurement leads.Separated utility channels keep mains, signal and grounding paths organized.

Static status becomes uncertain after bench relocation.An accessible bonding point allows continuity and resistance checks after installation.

Tipik uygulamalar

Semiconductor component inspectionPrinted circuit board assemblySensor and detector packagingPrecision electronics repair in clean areas

Teknik parametreler

Typical configurable construction ranges for an ESD-safe laminar flow clean bench are listed below.

Temel malzemeler	Powder-coated steel cabinet with conductive aluminum frame sections and a static-dissipative phenolic worktop
Panel kalınlığı	25-40 mm double-wall cabinet sections
Effective Width (Etkili Genişlik)	900-1800 mm clear ESD working width
Maksimum uzunluk	Up to 2400 mm overall bench width
Çelik yüz yüze kalınlığı	0.8-1.2 mm powder-coated steel enclosure skins
Core Density (Çekirdek Yoğunluğu)	1350-1450 kg/m³ solid phenolic worktop core
Termal İletkenlik	0.25-0.35 W/(m·K) for the phenolic worktop core
Yüzey bitirme	White powder-coated cabinet with grounded static-dissipative laminate work surface
Ortak tip	Bonded cabinet seams with dedicated earth studs, conductive frame links and gasketed filter mounts
Customization (Özelleşme)	Kullanılan uygulama ve çalışma ortamına göre kullanılabilir.

Mevcut Seçenekler

Overhead balanced ionizing barWrist-strap grounding terminalsConductive stainless worktopESD-safe transparent side panels
