Cleanroom Cleaning, Disinfection and Sterilization

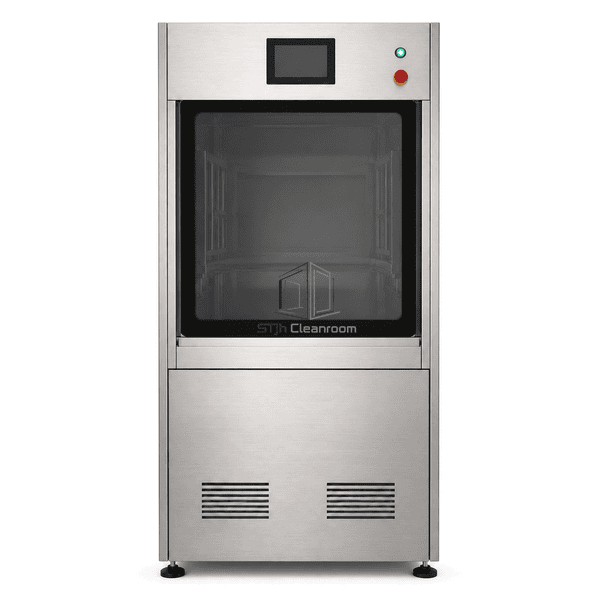

Washer-Disinfector
A programmable washer-disinfector for automated cleaning, rinsing, thermal disinfection, and drying of compatible instruments, trays, utensils, and reusable components.
- Defined spray coverage improves repeatable load cleaning
- Metered chemistry, monitored temperature, and drying automate key stages

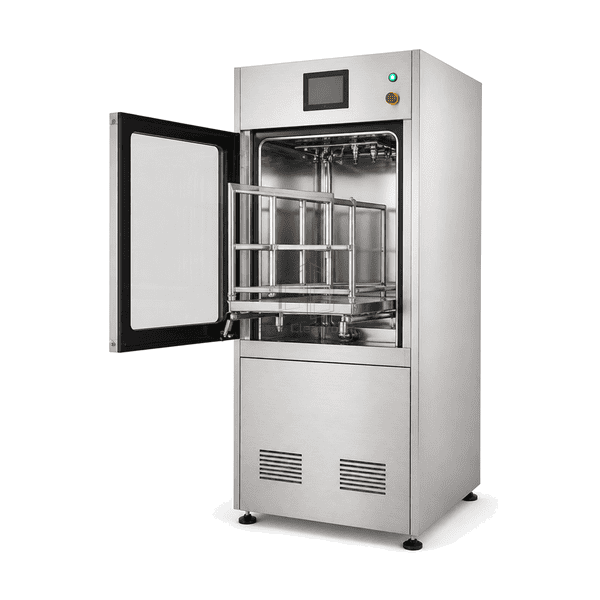

- Interchangeable racks adapt the chamber to different load families
Product Introduction

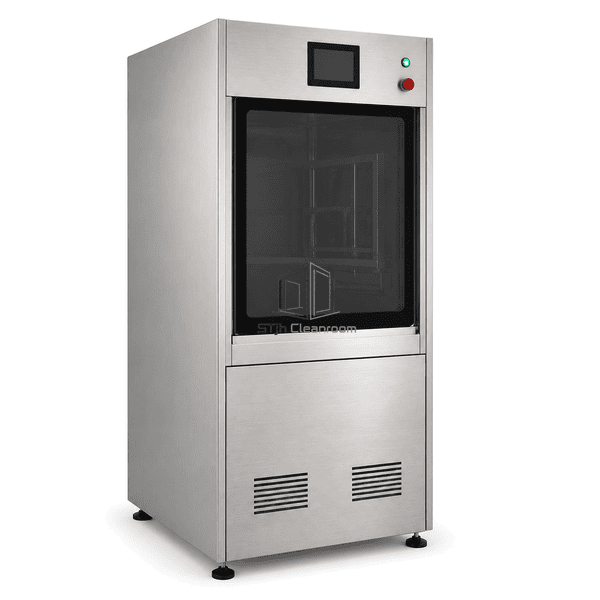

This washer-disinfector provides reproducible automated processing before inspection, packing, or sterilization. A stainless chamber accommodates modular racks, while an automatic glass door, intuitive controller, chemistry pumps, and drying system simplify operation. Single-door and pass-through formats support different workflow layouts.
Key Features
Programmable multi-stage wash cycles
Thermal disinfection and filtered-air drying
Automatic vertical sliding or folding door
Detergent and neutralizer dosing pumps
Spray-pressure and temperature monitoring
Modular racks and injection connections
Cycle records and remote data options
Customer Product Concerns
Complex instruments and dense racks can shield surfaces from spray action. Effective reprocessing depends on correct load orientation, unobstructed spray-arm movement, compatible chemistry, maintained water quality, and a program matched to the items.
How is spray coverage maintained?Load-specific racks, free-turning spray arms, pressure monitoring, and correct item orientation support consistent impingement.
How is chemistry controlled?Metering pumps deliver configured detergent and neutralizer volumes, with level and dosing alarms available.
Can thermal disinfection be documented?The controller records time and temperature through the disinfection phase together with cycle alarms and completion status.

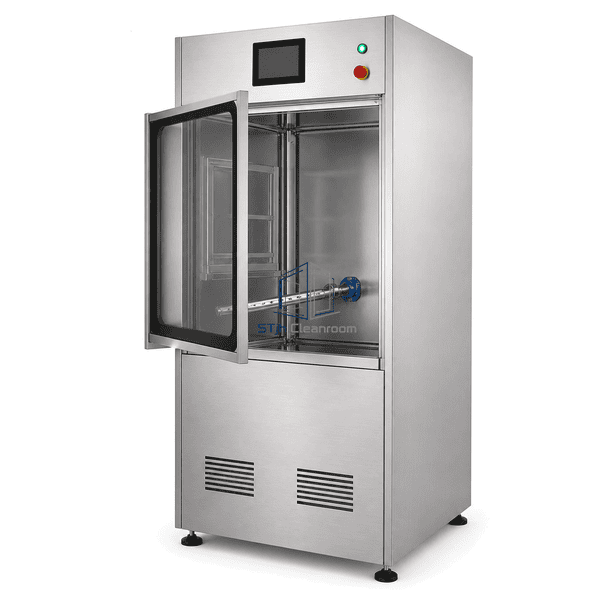

How are internal channels cleaned?Injection racks connect compatible lumened items to dedicated circulation paths rather than relying only on external spray.
Typical Applications
Reusable instrument traysLaboratory glassware and utensilsPharmaceutical production componentsCleanroom tools and containersHealthcare sterile-processing departmentsBiotechnology process accessories
Technical Parameters
The unit circulates heated water and detergent through rotating spray arms and load-specific injection connections. Program stages can include pre-rinse, wash, neutralization, final rinse, thermal disinfection, and filtered-air drying. Sensors monitor temperature, dosing, pressure, and cycle status.
| Core Material | 316L or 304 stainless-steel chamber with chemically compatible seals and piping |
|---|---|
| Panel Thickness | 30–60 mm insulated cabinet panels |
| Effective Width | 650–1200 mm equipment width |
| Maximum Length | 1500–2400 mm maximum external dimension |
| Steel Facing Thickness | 0.8–1.2 mm stainless-steel facing |
| Core Density | 40–80 kg/m³ acoustic and thermal insulation |
| Thermal Conductivity | 0.030–0.045 W/(m·K) |
| Surface Finish | Brushed exterior stainless steel with smooth self-draining chamber interior |
| Joint Type | Welded chamber seams with gasketed door, rotary spray couplings, and sealed rack connections |
| Customization | Available based on the intended application and operating environment. |
Available Options
Single-door or pass-through formatAutomatic sliding or manual folding doorInstrument, glassware, and injection racksAdditional chemistry pumpsConductivity monitoringHEPA-filtered drying airPrinter and network data export
