Air Filters and Chemical Filtration
Washable Steel Mesh Air Filter
A rugged permanent pre-filter built from layered steel wire media for high-velocity or abrasive industrial air streams.
- Heavy-Duty Steel Media
- Washable Permanent Design
- High-Velocity Stability
- Galvanized or Stainless Build
Product Introduction

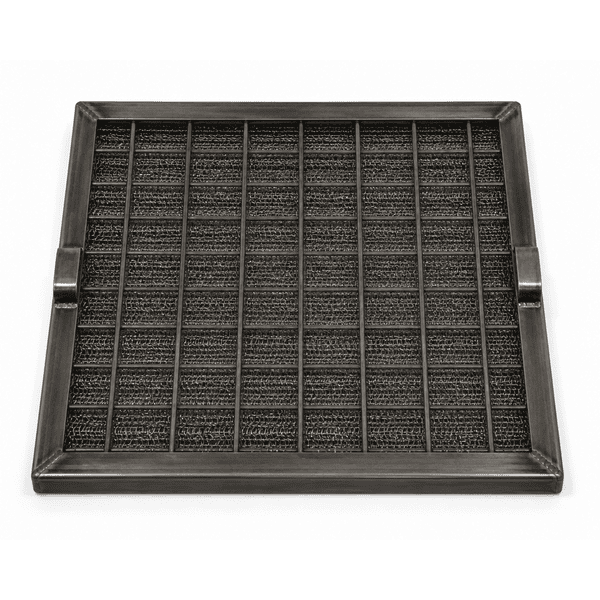

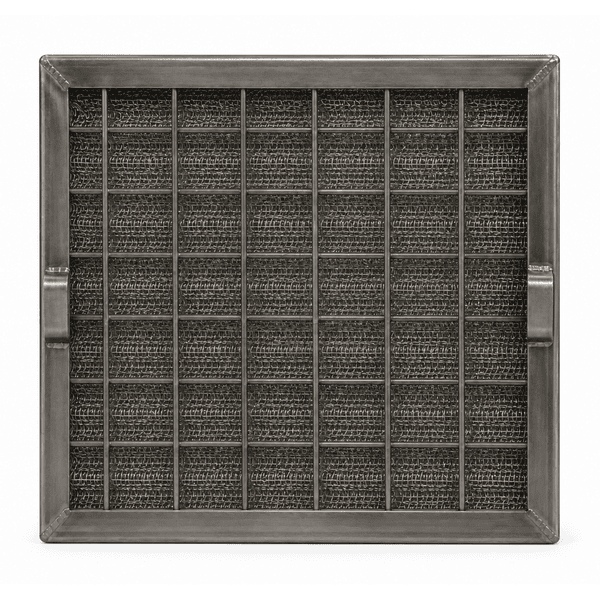

The washable steel mesh air filter combines crimped wire cloth and expanded-steel media inside a rigid galvanized or stainless frame. Compared with an aluminum filter, the steel pack withstands greater handling loads and abrasive debris at high face velocity. Alternating mesh layers create a depth-loading impingement path, while welded or folded face retainers prevent the pack from bulging. Stainless construction is available for wet or chemically aggressive service where galvanized coatings are unsuitable.
Key Features
Expanded-metal face guards resist impact and keep the media pack flat at elevated velocity.
The permanent assembly can be washed and returned to service after complete drying.
Galvanized and stainless constructions let the frame and media match the corrosion environment.
Customer Product Concerns
A steel mesh filter is selected for mechanical durability, but its corrosion grade and cleaning method must fit the actual contamination.
Lightweight mesh panels deform when exposed to debris impact or aggressive handling.Crimped steel media and rigid expanded-metal guards maintain the panel profile under heavier service.
Galvanized surfaces deteriorate in continuously wet or chloride-rich air.An all-stainless frame and media option provides a more suitable corrosion-resistant construction.
Cleaning jets displace loosely packed wire layers and create thin spots.Mechanically compressed media and fixed face retainers hold the layer sequence in place.
Oil-laden dust remains trapped when the filter is rinsed with water alone.Compatible detergent loosens the film before thorough rinsing and complete drain-down.
Typical Applications
Industrial make-up air intakesPaint and process equipment pre-filtrationMachinery cooling-air cabinetsHigh-velocity exhaust or recirculation systemsWet-area ventilation with stainless construction
Technical Parameters
Typical construction ranges for a heavy-duty washable steel mesh filter are listed below.
| Core Material | Crimped galvanized-steel or stainless-steel wire cloth with expanded-metal layers |
|---|---|
| Panel Thickness | 25, 50 or 100 mm nominal depth |
| Effective Width | 300-610 mm standard face width |
| Maximum Length | Up to 1220 mm with reinforced frame and internal support |
| Steel Facing Thickness | 0.60-1.00 mm expanded-steel or stainless face retainers |
| Core Density | Approximately 7850 kg/m³ for the steel wire media |
| Thermal Conductivity | Approximately 15-50 W/(m·K), depending on stainless or carbon-steel construction |
| Surface Finish | Hot-dip galvanized, passivated or natural brushed stainless steel |
| Joint Type | Layered wire media compressed between expanded-metal faces in a folded or welded steel frame |
| Customization | Available based on the intended application and operating environment. |
Available Options

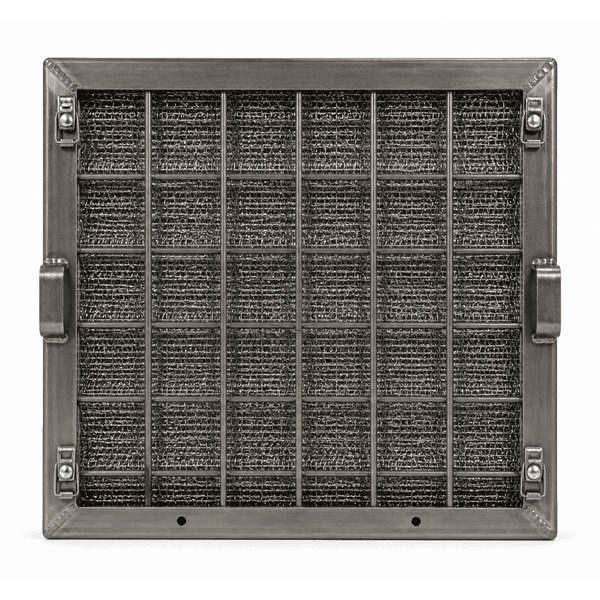

Galvanized or stainless-steel construction25 mm to 100 mm depthDry or light-tackified meshHandles, drain slots and reinforced dividers
Planning a Washable Steel Mesh Air Filter specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
