Cleanroom Cleaning, Disinfection and Sterilization
VHP Generator
Mobile vaporized hydrogen peroxide generator with controlled injection, environmental sensing and catalytic aeration connections for sealed rooms and process enclosures.
- Metered hydrogen peroxide vapor delivery
- Integrated temperature and humidity monitoring
- Enclosure or room-cycle flexibility
Product Introduction

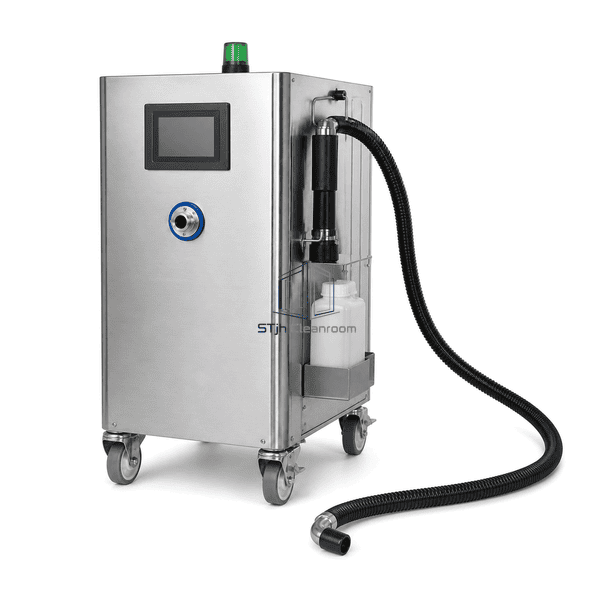

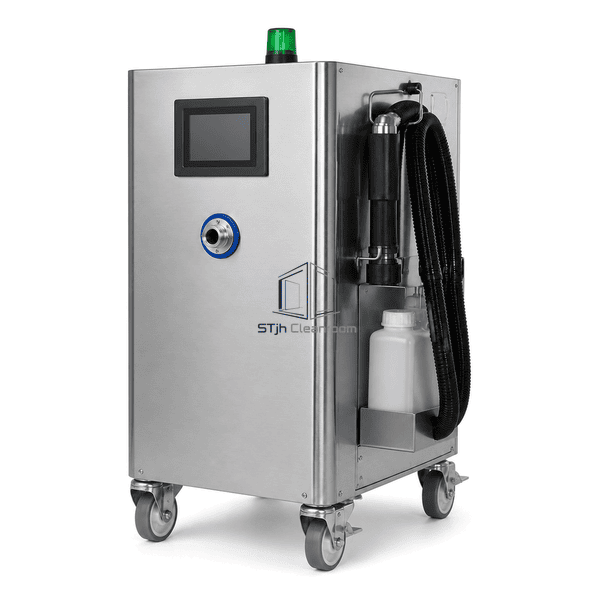

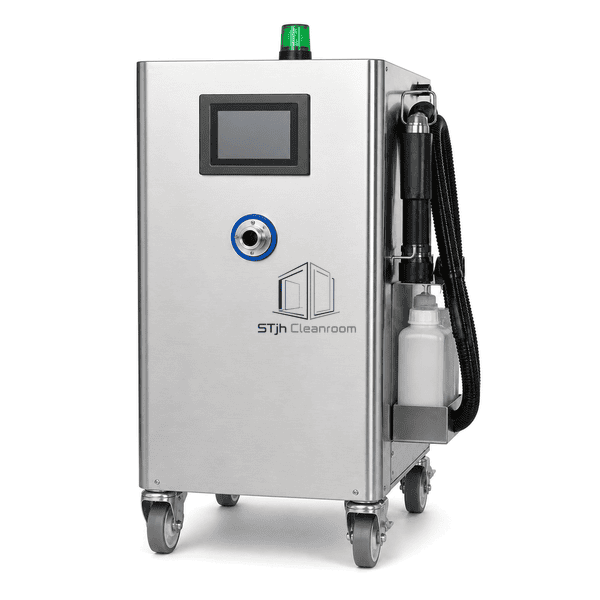

The VHP Generator vaporizes a metered hydrogen peroxide solution into a conditioned carrier-air stream and supplies it through a directed outlet or enclosure hose. Integrated temperature, relative-humidity and peroxide sensing supports repeatable conditioning, injection and dwell phases. A stainless mobile cabinet, lockable casters and sealed fluid compartment allow one system to serve rooms, isolators or pass-through chambers when used under an approved site procedure.
Key Features
Environmental sensors support phase transition decisions.
Recipe control stores target-specific cycle settings.
Stainless mobile housing improves cleanability.
External hose connection adapts to enclosed equipment.
Catalytic aeration interface supports peroxide removal.
Customer Product Concerns
The unit addresses uneven vapor distribution, manual dosing, poor cycle visibility and slow transfer between enclosed targets.
Nonuniform concentrationControlled vapor output and circulation connections support distribution planning.
Variable ambient conditionsTemperature and humidity sensors inform automated conditioning.
Cycle traceabilityRecipe control and event data preserve operating records.
Long aerationA catalytic aeration interface accelerates residual peroxide breakdown.
Typical Applications
Cleanroom room bio-decontaminationIsolators and RABSBiosafety cabinetsPass-through chambersFreeze dryers and process enclosures
Technical Parameters
The specifications cover compact mobile VHP generators used with qualified cycles in sealed controlled spaces and compatible equipment enclosures.
| Core Material | Stainless-steel cabinet with fluoropolymer fluid path |
|---|---|
| Panel Thickness | 1.2-1.5 mm cabinet panel thickness |
| Effective Width | 600 mm nominal unit width |
| Maximum Length | 1000 mm nominal cabinet length |
| Steel Facing Thickness | 1.2 mm nominal Type 304 stainless facing |
| Core Density | 7900 kg/m³ nominal stainless-steel density |
| Thermal Conductivity | 15 W/(m·K) nominal for stainless cabinet structure |
| Surface Finish | Brushed stainless exterior with sealed touch interface |

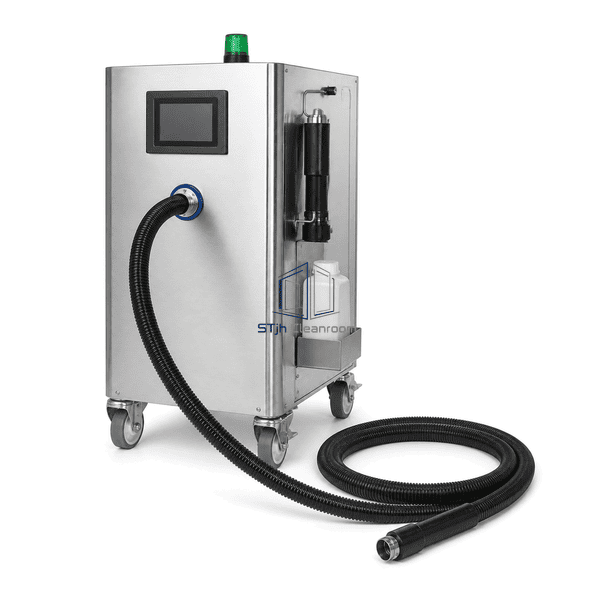

| Joint Type | Locking vapor outlet and return-hose couplings |
| Customization | Available based on the intended application and operating environment. |
Available Options
Room or enclosure connection kitIntegrated or remote aeration unitWireless peroxide and humidity sensorsElectronic cycle-report exportType 316L stainless external panels
Planning a VHP Generator specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
