Ventilated Chemical Storage Cabinet

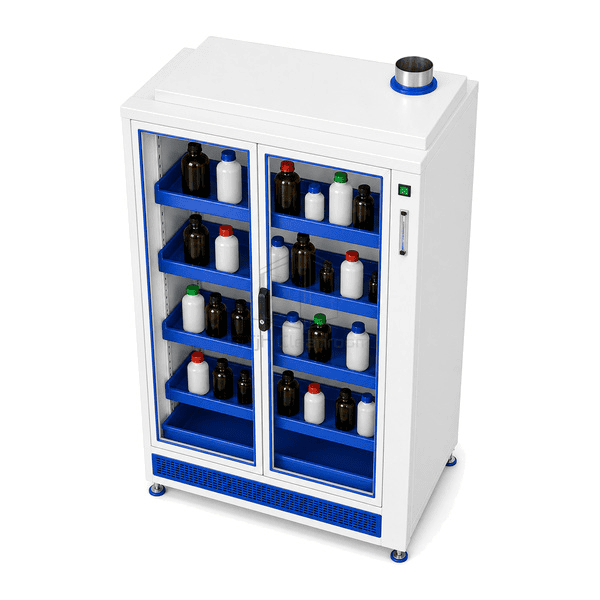

A ducted electro-galvanized steel cabinet that draws room air across segregated chemical containers, captures leaks in polypropylene trays and sends cabinet vapors to a 100 mm exhaust connection.

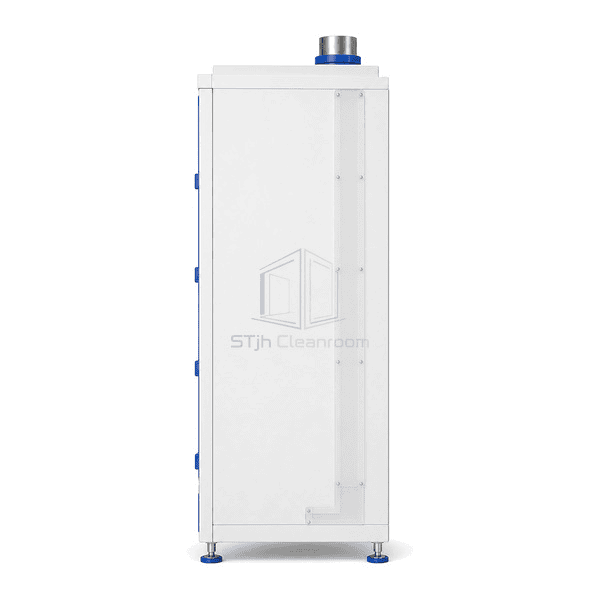

Continuous bottom-to-top airflow path
100 mm ducted exhaust connection
Four blue retention shelf trays
Clear lockable chemical-resistant doors

Request a Quote Browse Products

Product Introduction

The ventilated chemical storage cabinet is built around a white anti-acid powder-coated electro-galvanized steel shell with twin clear chemical-resistant doors. Make-up air enters through a low-level blue grille, passes across four removable polypropylene shelf trays and leaves through a sealed 100 mm top exhaust collar connected to the facility extraction system. A front airflow indicator and green run light provide a direct view of ventilation status. Each shelf tray has a raised perimeter to retain small leaks, and the cabinet base contains a deeper removable sump. The lockable doors close against continuous blue seals but retain controlled inlet paths required for the upward exhaust flow.

Key Features

The low-level inlet and high-level exhaust collar create a defined upward sweep across every shelf instead of relying on room dilution.

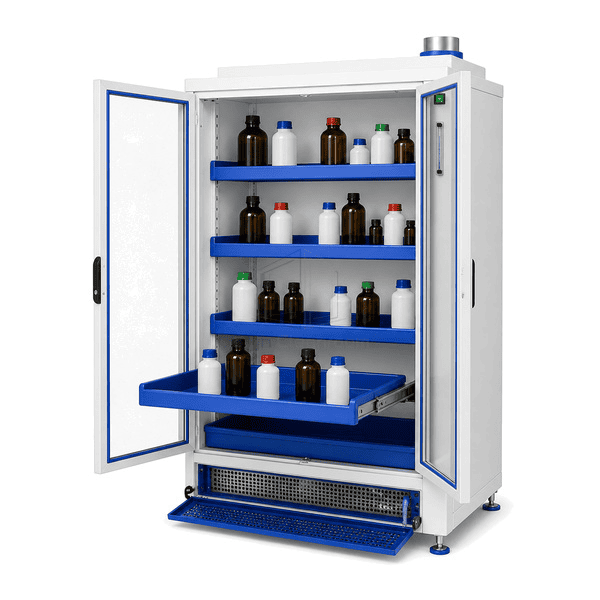

Four removable polypropylene retention trays segregate bottle groups and contain small leaks at the shelf where they occur.

Clear doors show container labels and tray occupancy before the lock is released, reducing unnecessary open-door time.

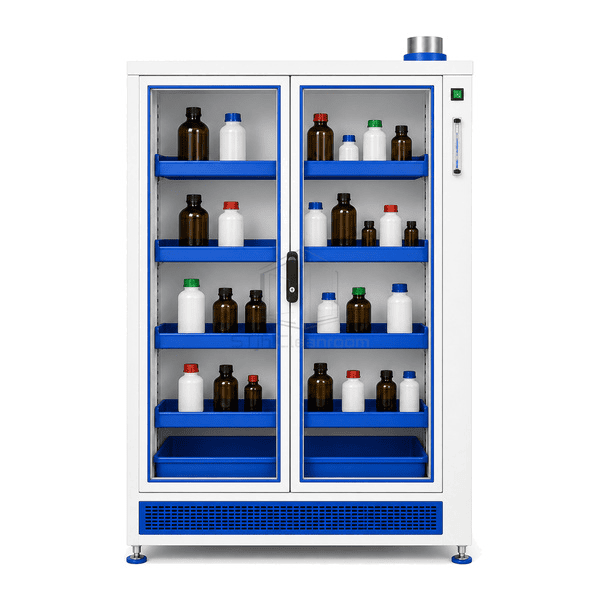

An external airflow indicator and green run lamp make loss of extraction visible at the cabinet front.

Customer Product Concerns

Chemical vapor storage requires a defined exhaust path, compatible spill retention and clear segregation without confusing the cabinet with a recirculating filter unit.

Vapors accumulate inside a closed reagent cupboard and escape in a concentrated plume when the doors open.Continuous bottom-to-top extraction carries cabinet air to the sealed 100 mm facility exhaust connection.

A leaking bottle contaminates the shelf below before operators identify the source.Each storage level uses a removable raised-edge polypropylene retention tray that contains leakage locally.

Opaque doors hide incompatible bottle placement and encourage repeated cabinet opening.Twin clear chemical-resistant doors expose labels and tray grouping while the cabinet remains closed.

Operators cannot tell whether the exhaust branch has lost airflow.The front airflow indicator and run lamp provide a visible check of the active extraction path.

Typical Applications

Volatile reagent storage in analytical laboratoriesSolvent bottle holding near process roomsAcid and base stores with separate compatible compartmentsQuality-control sample preparation areasChemical dispensing support rooms

Technical Parameters

Typical configurable specifications for an externally ducted chemical storage cabinet are listed below.

Core Material	Electro-galvanized steel cabinet with clear chemical-resistant doors, four blue polypropylene retention shelf trays, removable lower sump and airflow monitor
Panel Thickness	1.2 mm steel shell and door frames with 3–5 mm polypropylene retention trays
Effective Width	900 mm overall cabinet width
Maximum Length	2050 mm maximum overall height including the exhaust collar
Steel Facing Thickness	1.2 mm electro-galvanized steel outer shell, door frames and internal supports
Core Density	7850 kg/m³ for the electro-galvanized steel enclosure
Thermal Conductivity	45–60 W/(m·K) for the electro-galvanized steel enclosure
Surface Finish	White anti-acid powder-coated steel with clear acrylic doors, cobalt-blue polypropylene trays and blue low-level intake grille
Joint Type	Folded and seam-welded shell with lockable gasketed clear doors, removable tray supports, sealed lower intake plenum and 100 mm top exhaust spigot
Customization	Available based on the intended application and operating environment.

Available Options

Remote inline fan or integral roof extraction moduleChemical-specific recirculating filter packSeparate acid and base compartmentsDoor-open and low-airflow audible alarms
