Touchless automatic stainless steel hand-washing station

Personnel and Material Decontamination Equipment

Touchless Automatic Hand-Washing Station

A sensor-operated stainless steel sink that provides soap and water without hand contact at the tap or controls.

Touchless soap and water
Timed wash sequence
Seamless sloped basin
Rear service access

Request a Quote Browse Products

Product Introduction

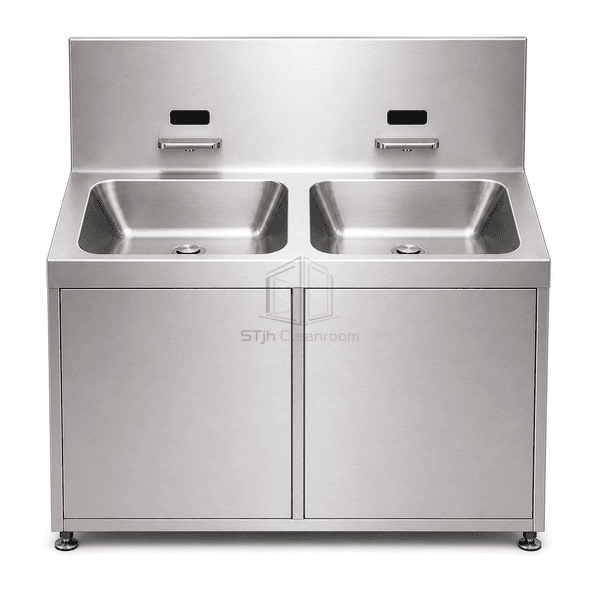

The Touchless Automatic Hand-Washing Station combines sensor soap dispensing, controlled water delivery and a timed wash sequence in a cleanable stainless cabinet. Users activate the sequence beneath recessed outlets without touching handles, while the sloped basin directs splash water to the drain. Pumps, valves and supply containers remain behind a separate service panel so maintenance is kept apart from the hand-wash area.

Key Features

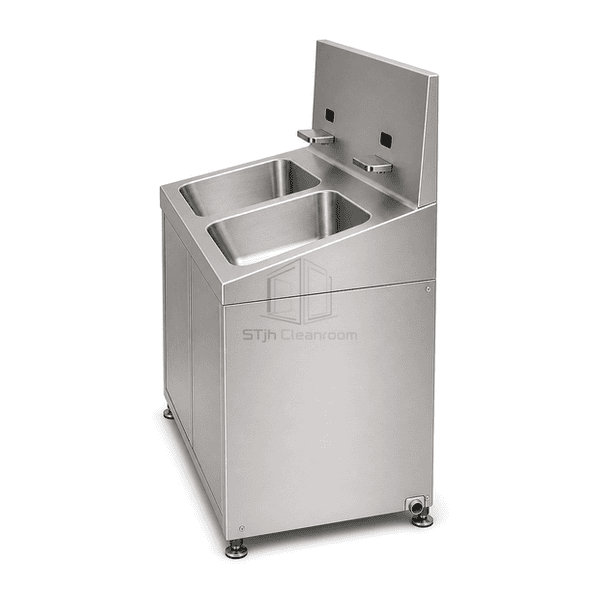

Proximity sensors operate soap and water without shared push buttons or tap handles.

A timed sequence provides a consistent soap and rinse opportunity for each user.

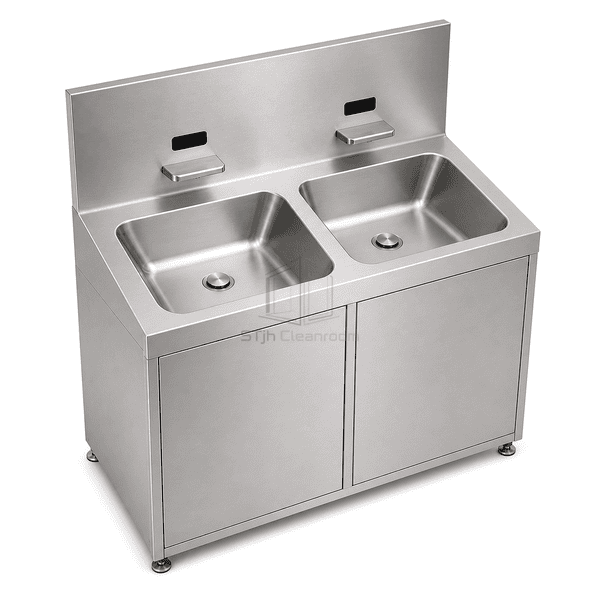

The seamless basin has a sloped deck to direct water toward the drain.

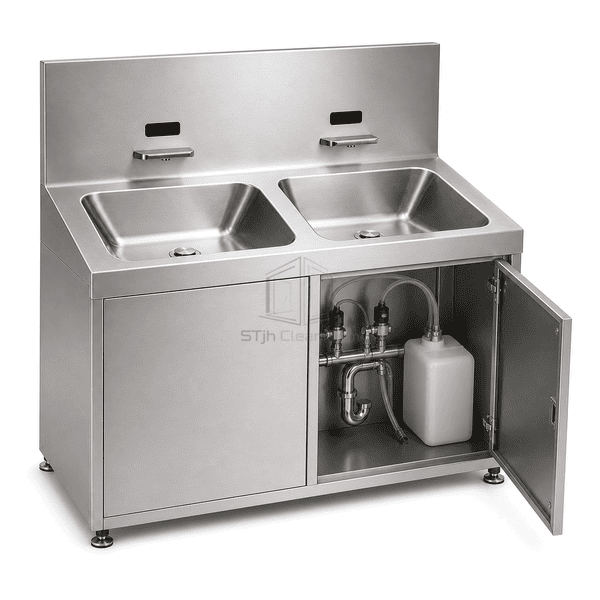

Rear-side service access separates valves and consumable containers from the wash zone.

Single and multiple wash positions can be configured in one stainless steel cabinet.

Customer Product Concerns

Manual taps and soap pumps become shared touch points, while unmetered hand washing can vary considerably between users.

Users touch a faucet control again after washing their hands.Proximity sensors operate the soap and water stages without hand contact.

Soap is skipped or the rinse stage starts too soon.The controller can provide a timed soap-and-rinse sequence.

Water remains around flat sink rims and cabinet joints.A seamless sloped basin returns water directly to the drain.

Refill tasks intrude into the personnel wash route.A separate rear service compartment supports replenishment from the utility side.

Typical Applications

Pharmaceutical gowning roomsFood production hygiene entriesMedical-device changing areasLaboratory personnel airlocksCosmetic manufacturing facilities

Technical Parameters

Number of wash positions, basin width and water-service arrangement can be selected for the expected entry volume.

Core Material	SUS304 or SUS316L stainless steel cabinet with seamless wash basin
Panel Thickness	1.2–1.5 mm stainless steel cabinet panels
Effective Width	500–1800 mm usable wash width
Maximum Length	600–2000 mm overall station length
Steel Facing Thickness	1.2–1.5 mm SUS304 or SUS316L
Core Density	7900–8000 kg/m³ for stainless steel
Thermal Conductivity	14–16 W/(m·K) for stainless steel
Surface Finish	Brushed stainless steel with seamless sloped wash basin
Joint Type	Continuously welded basin with gasketed rear service panels
Customization	Available based on the intended application and operating environment.

Available Options

One to three wash positionsHot-and-cold water mixing valveSoap reservoir level alarmCycle-completion output

Planning a Touchless Automatic Hand-Washing Station specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
