Surface Resistance Meter

The Surface Resistance Meter is a portable digital test kit for measuring resistance point-to-point and resistance to ground on ESD work surfaces, floors, carts and other controlled materials.

Wide-range digital measurement supports ESD material classification and compliance checks.
Two cylindrical weighted electrodes enable repeatable resistance point-to-point measurements.
Separate red and black connections support both point-to-point and resistance-to-ground setups.

Request a Quote Browse Products

Product Introduction

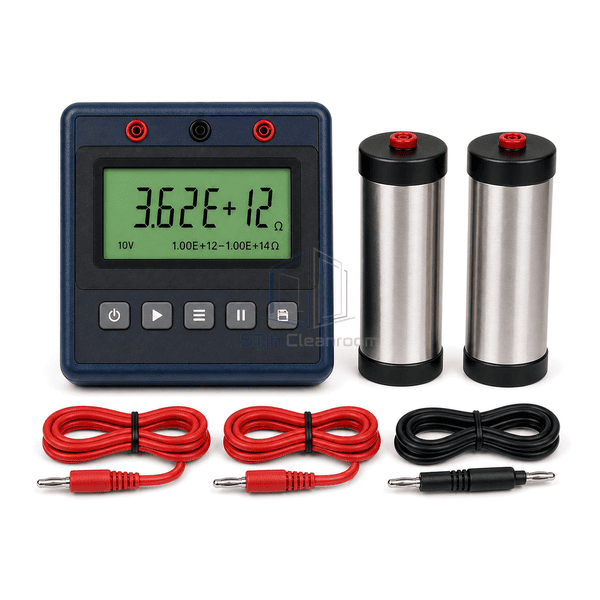

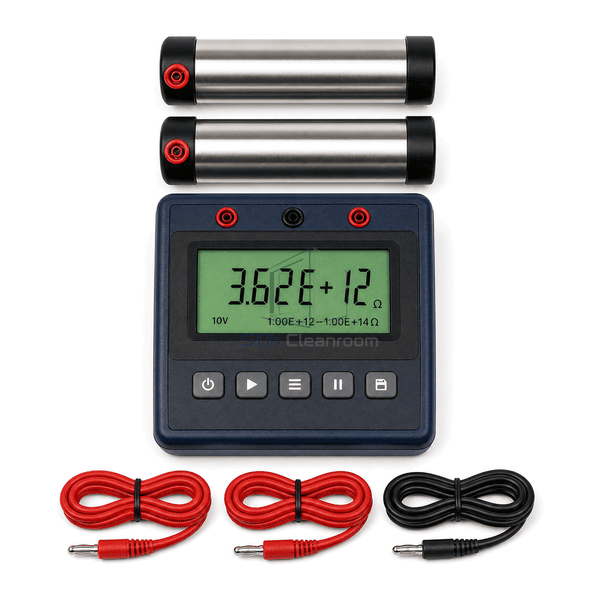

This kit combines a high-resistance digital meter with two matched cylindrical electrodes and color-coded test leads. The green display presents readings in scientific notation, while five direct controls handle power, test initiation, range, hold and memory functions. Two red measurement sockets and a central black reference connection keep common RTT and RTG arrangements easy to identify. Each weighted electrode uses a stainless body, insulated cap and banana connection to apply a consistent contact load during installed-surface verification.

Key Features

Scientific-notation LCD displays wide resistance values without manual conversion.

Automatic or selectable 10 V and 100 V test potential supports different resistance ranges.

Two matched 2.27 kg weighted electrodes provide consistent surface contact pressure.

Independent measurement and reference sockets simplify RTT and RTG lead placement.

Hold and internal-memory options assist documented multi-location surveys.

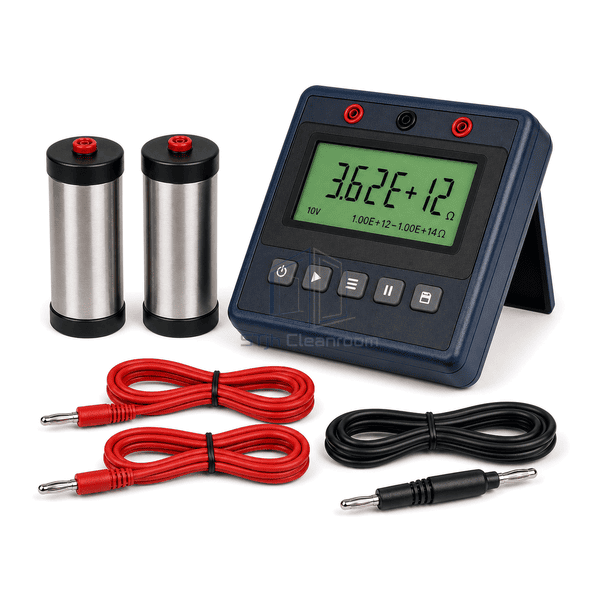

Integrated kickstand keeps the display visible while electrodes are positioned.

Color-coded leads reduce connection errors during field use.

Customer Product Concerns

High-resistance measurements are sensitive to contact force, test voltage, stabilization time and lead arrangement, so a field kit must make each part of the setup visible and repeatable.

Handheld probes create inconsistent contact pressure.Two matched weighted electrodes apply a repeatable load at both measurement points.

One test voltage is unsuitable across conductive and dissipative ranges.Selectable or automatic 10 V and 100 V operation matches the potential to the measured resistance band.

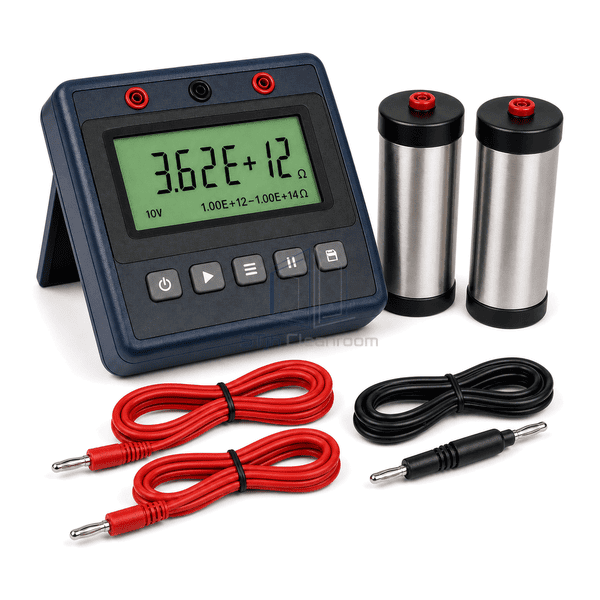

Point-to-point and point-to-ground connections are easily confused.Two red measurement sockets and a central black reference socket establish a clear connection scheme.

The reading changes while an electrode is being repositioned.Hold and memory functions retain a result for transcription and comparison.

Floor and workbench surveys require many measurements.A portable meter, kickstand and detachable color-coded leads support efficient movement between locations.

Typical Applications

Resistance-to-ground checks on ESD worksurfaces.Point-to-point resistance measurements on flooring.Verification of shelving, carts, chairs and storage equipment.Evaluation of static-control packaging and sheet materials.Periodic facility audits within an ESD control program.

Technical Parameters

The representative kit below is arranged for installed ESD surface verification. Measurement range, test-voltage control, timing, electrode contact material, memory and environmental sensing can be configured around the applicable test procedure.

Core Material	Conductive polymer meter enclosure with paired stainless-steel weighted test electrodes
Panel Thickness	2.0–4.0 mm molded instrument-enclosure wall thickness
Effective Width	180–230 mm meter body width
Maximum Length	Up to 260 mm meter body length
Steel Facing Thickness	1.0–1.5 mm stainless electrode shell thickness
Core Density	7800–8000 kg/m³ stainless-steel electrode-body density
Thermal Conductivity	14–17 W/(m·K) for stainless electrode components
Surface Finish	Textured navy and charcoal meter with green LCD and brushed-stainless electrode bodies
Joint Type	Two red measurement terminals and one black reference terminal with detachable banana leads and weighted electrodes
Customization	Available based on the intended application and operating environment.

Available Options

Automatic or manually selected 10 V and 100 V test potential.Resistance, temperature and relative-humidity logging.Timed measurement and programmable electrification period.Alternative electrode contact pads and handheld probes.Internal memory with USB or serial export.Carrying case, cable spacers and additional ground leads.

Planning a Surface Resistance Meter specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
